Specifications
Brand Name :
Supermicro
Model Number :
AS -1125HS-TNR
Place of Origin :
China
MOQ :
1/set
Payment Terms :
T/T
Supply Ability :
50pcs per week
Delivery Time :
2-3 work days
Form Factor :
1U Rackmount
Processor :
AMD EPYC™ 9004/9005 Series Processors
System Memory :
Slot Count: 24 DIMM slots
Expansion Slots :
Default 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays Configuration :
Default: Total 8 bays
Power Supply :
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Gross Weight :
51 lbs (18.8 kg)
Net Weight :
32 lbs (8.7 kg)
Available Color :
Black front & silver body
Description

Key Applications

Virtualization, Software-defined Storage, AI Inference and Machine Learning,

Cloud Computing, Enterprise Server,

Key Features

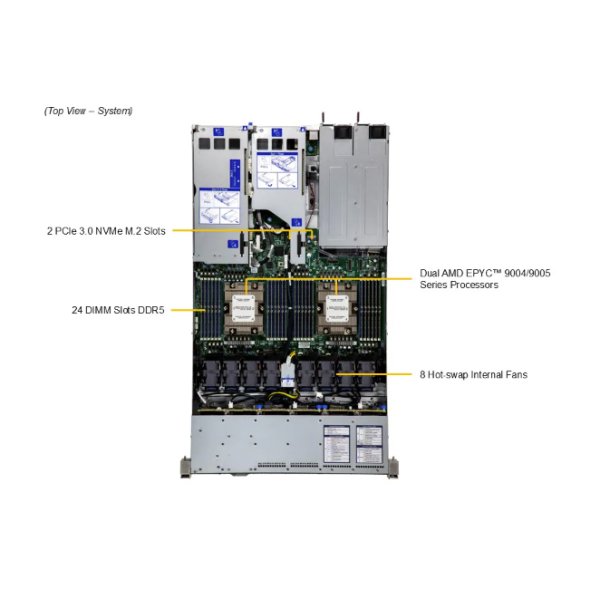

Dual AMD EPYC™ 9004/9005* Series Processors

(*AMD EPYC™ 9005 series drop-in support requires board revision 2.xx);

Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s

(Please check System Memory Section for detail);

2 PCIe 5.0 x16 FHFL slots

1 PCIe 5.0 x16 FHHL slot

Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0

compatible);

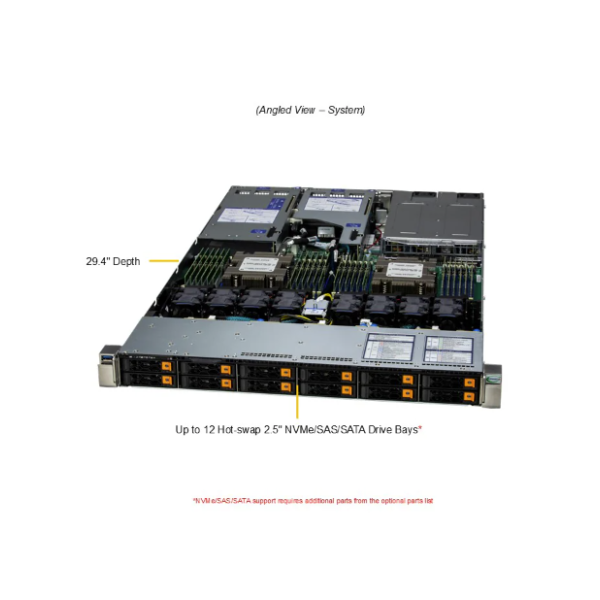

8 Hot-swap 2.5" NVMe/SATA/SAS drive bays

Optional 4 Hot-swap 2.5" NVMe/SAS/SATA drive support via additional parts

2 M.2 PCIe 3.0 NVMe slots;

Dual 1200W Redundant Titanium Level power supplies

(Power supply full redundancy based on configuration and application

load);

Form Factor

1U

Enclosure: 437 x 43 x 747mm (17.2" x 1.7" x 29.4")

Package: 605 x 206 x 1032mm (23.8" x 8.1" x 40.6")

Processor

Dual processor(s)

AMD EPYC™ 9004/9005 Series Processors

(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)

Up to 320C/640T

System Memory

Slot Count: 24 DIMM slots

Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB

R1.x/R2.0/R2.01)

Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)

Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)

Drive Bays Configuration

Default: Total 8 bays

8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

Option A: Total 12 bays

12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts

list for details)

M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)

Expansion Slots

Default

1 PCIe 5.0 x16 FHHL slot

2 PCIe 5.0 x16 FHFL slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

On-Board Devices

Chipset: System on Chip

Network Connectivity: Via AIOM

Power Supply

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimensions and Weight

Weight: Gross Weight: 51 lbs (23.1 kg)

Net Weight: 32 lbs (14.5 kg)

Available Color: Black front & silver body
