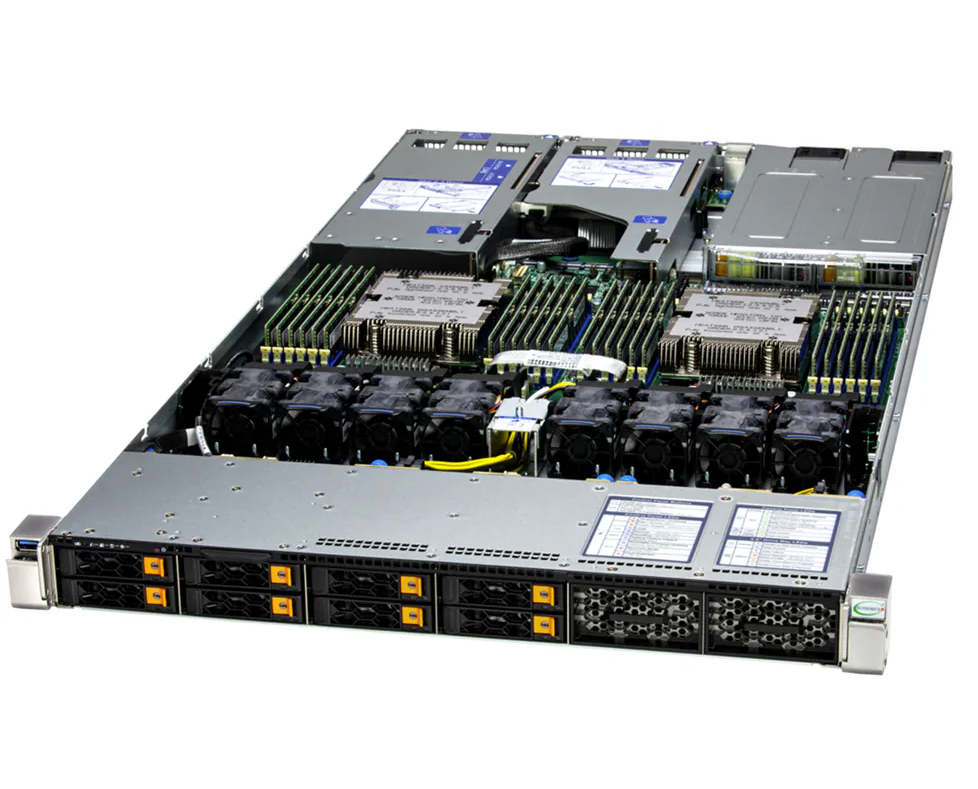

Supermicro Hyper SuperServer AS-1126HS-TN 1U Rackmount Server with Dual AMD EPYC 9005/9004 Processors 24 DIMM Slots DDR5 and 8 Hot-swap NVMe/SATA Drive Bays
Supermicro Hyper SuperServer AS-1126HS-TN 1U Rackmount Server with Dual AMD EPYC 9005/9004 Processors 24 DIMM Slots DDR5 and 8 Hot-swap NVMe/SATA Drive Bays
Supermicro Hyper SuperServer AS-1126HS-TN 1U Rackmount Server with Dual AMD EPYC 9005/9004 Processors 24 DIMM Slots DDR5 and 8 Hot-swap NVMe/SATA Drive Bays
Supermicro Hyper SuperServer AS-1126HS-TN 1U Rackmount Server with Dual AMD EPYC 9005/9004 Processors 24 DIMM Slots DDR5 and 8 Hot-swap NVMe/SATA Drive Bays
Supermicro Hyper SuperServer AS-1126HS-TN 1U Rackmount Server with Dual AMD EPYC 9005/9004 Processors 24 DIMM Slots DDR5 and 8 Hot-swap NVMe/SATA Drive Bays
Supermicro Hyper SuperServer AS-1126HS-TN 1U Rackmount Server with Dual AMD EPYC 9005/9004 Processors 24 DIMM Slots DDR5 and 8 Hot-swap NVMe/SATA Drive Bays
Supermicro Hyper SuperServer AS-1126HS-TN 1U Rackmount Server with Dual AMD EPYC 9005/9004 Processors 24 DIMM Slots DDR5 and 8 Hot-swap NVMe/SATA Drive Bays
Supermicro Hyper SuperServer AS-1126HS-TN 1U Rackmount Server with Dual AMD EPYC 9005/9004 Processors 24 DIMM Slots DDR5 and 8 Hot-swap NVMe/SATA Drive Bays
Specifications
Brand Name :
Supermicro
Model Number :
AS -1126HS-TN
Place of Origin :
China
MOQ :
1/set
Payment Terms :
T/T
Supply Ability :
50pcs per week
Delivery Time :
2-3 work days
Form Factor :
1U Rackmount
Processor :
AMD EPYC™ 9005/9004 Series Processors
System Memory :
Slot Count: 24 DIMM slots
Expansion Slots :
PCI-Express (PCIe) Configuration: Default 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) CXL Support: Up to 4 CXL 2.0 x16 devices
Drive Bays Configuration :
Default: Total 8 bays
Power Supply :
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Gross Weight :
41.4 lbs (18.8 kg)
Net Weight :
19.2 lbs (8.7 kg)
Available Color :
silver
Description

Key Applications

Virtualization, Software-defined Storage, AI Inference and Machine Learning,

Cloud Computing, Enterprise Server, High Performance Computing (HPC),

Key Features

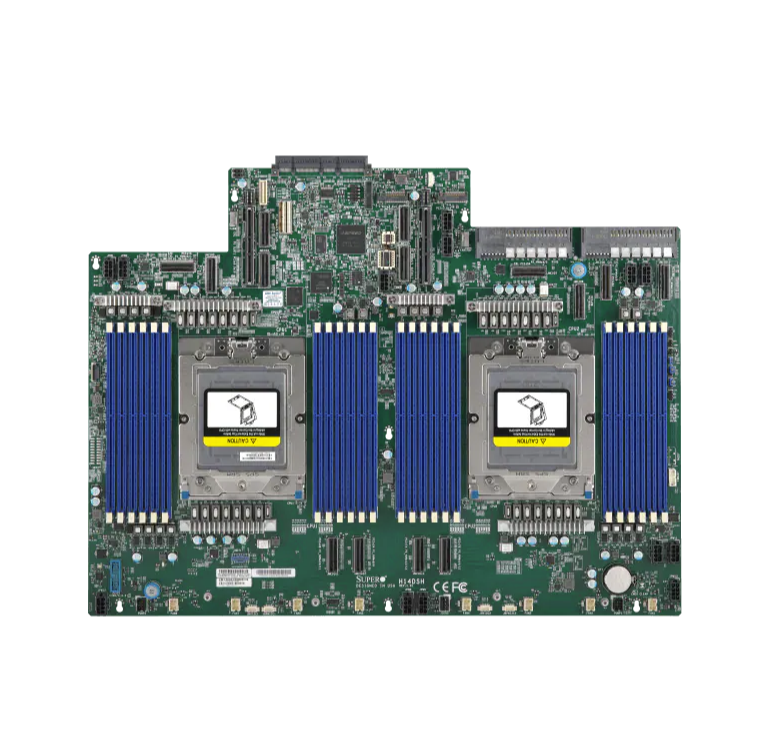

Dual AMD EPYC™ 9005/9004 Series Processors;

Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s

(Please check System Memory Section for detail);

2 PCIe 5.0 x16 FHFL slots

1 PCIe 5.0 x16 FHHL slot;

Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0

compatible);

8 Hot-swap 2.5" NVMe/SATA drive bays

Optional 4 Hot-swap 2.5" NVMe/SATA drive support via additional parts

2 M.2 PCIe 3.0 NVMe slots;

Dual 1600W / 2000W / 2600W Redundant Titanium Level power supplies

(Power supply full redundancy based on configuration and application

load);


Form Factor

1U Rackmount

Enclosure: 437 x 43 x 778.7mm (17.2" x 1.7" x 30.66")

Package: 672 x 224 x 1100mm (26.46" x 8.82" x 43.31")

Processor

Dual processor(s)

AMD EPYC™ 9005/9004 Series Processors

Up to 384C/768T

System Memory

Slot Count: 24 DIMM slots

Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)

Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)

Drive Bays Configuration

Default: Total 8 bays

8 front hot-swap 2.5" NVMe*/SATA* drive bays

Option A: Total 12 bays

12 front hot-swap 2.5" NVMe*/SATA* drive bays

(*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list

for details)

M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)

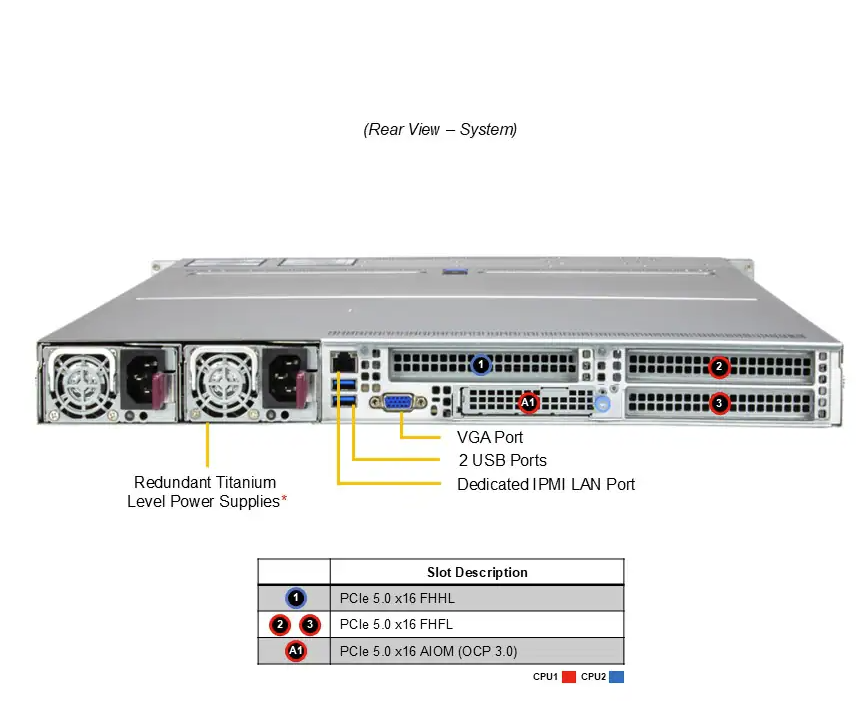

Expansion Slots

PCI-Express (PCIe) Configuration: Default

1 PCIe 5.0 x16 FHHL slot

2 PCIe 5.0 x16 FHFL slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

CXL Support: Up to 4 CXL 2.0 x16 devices

On-Board Devices

Chipset: System on Chip

Network Connectivity: Via AIOM

IPMI: Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Power Supply

2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimensions and Weight

Weight: Gross Weight: 41.4 lbs (18.8 kg)

Net Weight: 19.2 lbs (8.7 kg)

Available Color: Silver
