Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs
Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs
Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs
Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs
Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs
Supermicro Hyper A+ Server AS-2025HS-TNR with Dual AMD EPYC 9004/9005 Processors, 24 DIMM Slots DDR5, and Up to 2 Double-Width GPUs
Specifications
Brand Name :
Supermicro
Model Number :
AS-2025HS-TNR
Place of Origin :
China
MOQ :
1/set
Payment Terms :
T/T
Supply Ability :
50pcs per week
Delivery Time :
2-3 work days
Form Factor :
2U Rackmount
Processor :
AMD EPYC™ 9004/9005 Series Processors
Max GPU Count :
Up to 2 double-width or 2 single-width GPUs
Supported GPU :
NVIDIA PCIe: H100, H100 NVL, A16, A30, A40, L4, L40S, RTX 4000, RTX 6000 Ada Generation, A100, RTX A4000, RTX A4500, RTX A5000, RTX A6000, T1000, RTX A5500, L40, RTX 5000 Ada, RTX A2000
Slot Count :
24 DIMM slots
Gross Weight :
69 lbs (31.3 kg)
Net Weight :
39 lbs (17.7 kg)
Available Color :
Black Front & Silver Body
Power Supply :
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Description

Key Applications

Virtualization, Software-defined Storage, AI Inference and Machine Learning,

Cloud Computing, Enterprise Server,

Key Features

Dual AMD EPYC™ 9004/9005* Series Processors

(*AMD EPYC™ 9005 series drop-in support requires board revision 2.xx);

Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s

(Please check System Memory Section for detail);

Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots

or mix and match

Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0

compatible);

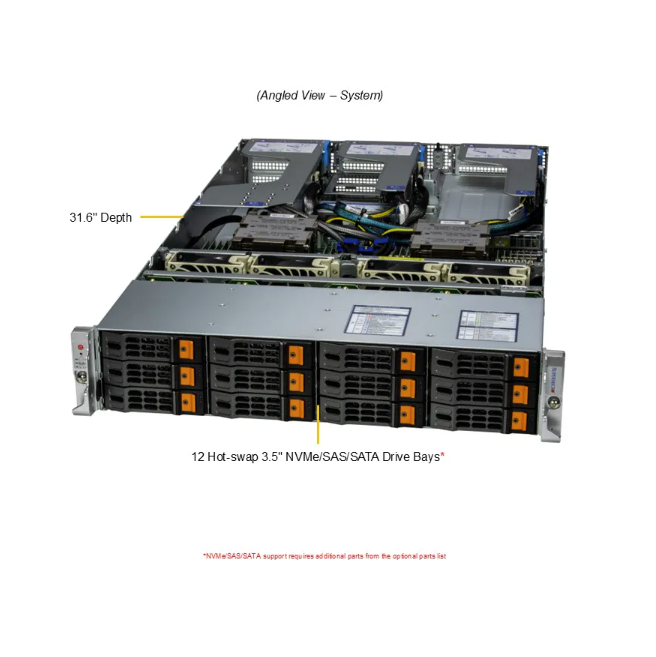

12 Hot-swap 3.5"/2.5" NVMe/SATA/SAS drive bays

2 M.2 PCIe 3.0 NVMe slots;

Dual 1600W Redundant Titanium Level power supplies

(Power supply full redundancy based on configuration and application

load);

Form Factor

2U

Enclosure: 437 x 88.9 x 803mm (17.2" x 3.5" x 31.6")

Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6")

Processor

Dual processor(s)

AMD EPYC™ 9004/9005 Series Processors

(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)

Up to 320C/640T

GPU

Max GPU Count: Up to 2 double-width or 2 single-width GPUs

Supported GPU:

NVIDIA PCIe: H100, H100 NVL, A16, A30, A40, L4, L40S, RTX 4000, RTX 6000 Ada Generation, A100, RTX A4000, RTX

A4500, RTX A5000, RTX A6000, T1000, RTX A5500, L40, RTX 5000 Ada, RTX A2000

CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect: PCIe

System Memory

Slot Count: 24 DIMM slots

Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB

R1.x/R2.0/R2.01)

Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)

Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)

Drive Bays Configuration

Default: Total 12 bays

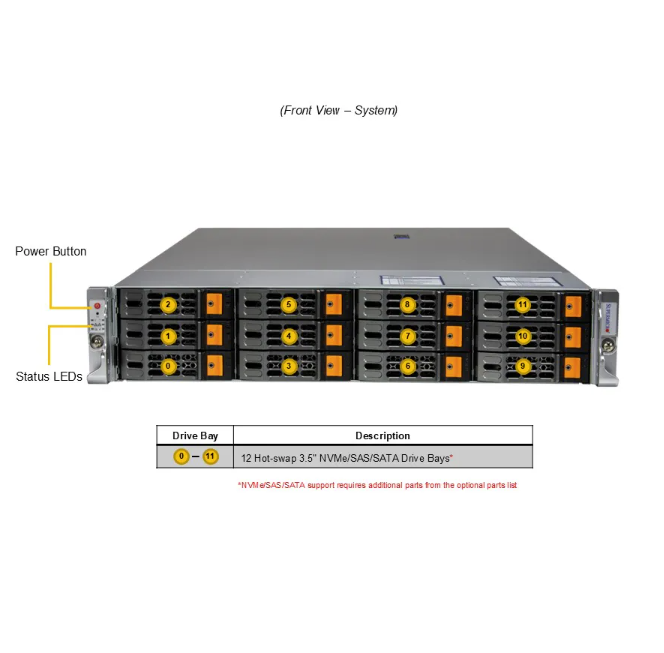

12 front hot-swap 3.5"/2.5" NVMe*/SAS*/SATA* drive bays

(*NVMe/SAS/SATA support may require additional storage controller and/or cables)

M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)

Expansion Slots

Default

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Option A*

1 PCIe 5.0 x16 (in x16) FHFL double-width slot

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Option B*

2 PCIe 5.0 x8 (in x16) FHFL slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Option C*

2 PCIe 5.0 x16 (in x16) FHFL double-width slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Option D*

1 PCIe 5.0 x16 (in x16) FHFL double-width slot

2 PCIe 5.0 x8 (in x16) FHFL slots

DATASHEET

More details here

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Option E*

4 PCIe 5.0 x8 (in x16) FHFL slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Option F*

4 PCIe 5.0 x16 (in x16) FHFL double-width slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Option G*

3 PCIe 5.0 x16 (in x16) FHFL double-width slots

2 PCIe 5.0 x8 (in x16) FHFL slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Option H*

2 PCIe 5.0 x16 (in x16) FHFL double-width slots

4 PCIe 5.0 x8 (in x16) FHFL slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Option I*

1 PCIe 5.0 x16 (in x16) FHFL double-width slot

6 PCIe 5.0 x8 (in x16) FHFL slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Power Supply

2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimensions and Weight

Weight: Gross Weight: 69 lbs (31.3 kg)

Net Weight: 39 lbs (17.7 kg)

Available Color: Black front & silver body
