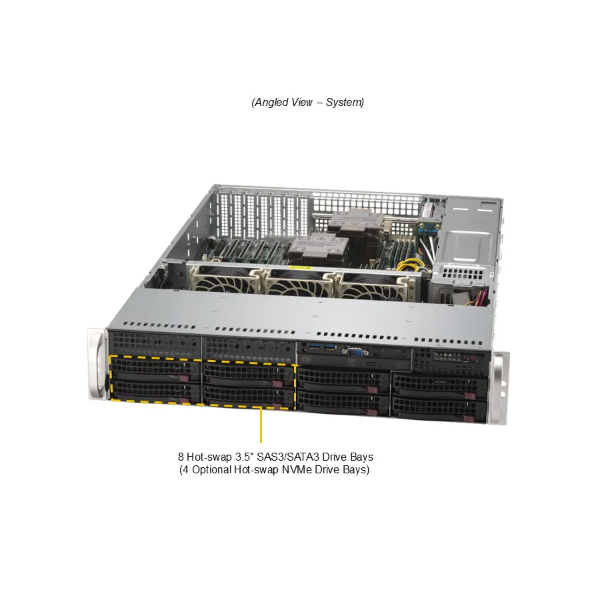

Supermicro Hyper SuperServer SYS-622B-TRT 2U Rackmount Server with Intel® Xeon® 6700/6500 Series Processors 16 DIMM Slots and 2 PCIe 5.0 x8 LP Slots
Supermicro Hyper SuperServer SYS-622B-TRT 2U Rackmount Server with Intel® Xeon® 6700/6500 Series Processors 16 DIMM Slots and 2 PCIe 5.0 x8 LP Slots
Supermicro Hyper SuperServer SYS-622B-TRT 2U Rackmount Server with Intel® Xeon® 6700/6500 Series Processors 16 DIMM Slots and 2 PCIe 5.0 x8 LP Slots
Supermicro Hyper SuperServer SYS-622B-TRT 2U Rackmount Server with Intel® Xeon® 6700/6500 Series Processors 16 DIMM Slots and 2 PCIe 5.0 x8 LP Slots
Supermicro Hyper SuperServer SYS-622B-TRT 2U Rackmount Server with Intel® Xeon® 6700/6500 Series Processors 16 DIMM Slots and 2 PCIe 5.0 x8 LP Slots
Supermicro Hyper SuperServer SYS-622B-TRT 2U Rackmount Server with Intel® Xeon® 6700/6500 Series Processors 16 DIMM Slots and 2 PCIe 5.0 x8 LP Slots
Supermicro Hyper SuperServer SYS-622B-TRT 2U Rackmount Server with Intel® Xeon® 6700/6500 Series Processors 16 DIMM Slots and 2 PCIe 5.0 x8 LP Slots
Supermicro Hyper SuperServer SYS-622B-TRT 2U Rackmount Server with Intel® Xeon® 6700/6500 Series Processors 16 DIMM Slots and 2 PCIe 5.0 x8 LP Slots
Specifications
Brand Name :
Supermicro
Model Number :
SYS-622B-TRT
Place of Origin :
China
MOQ :
1/set
Payment Terms :
T/T
Supply Ability :
50pcs per week
Delivery Time :
2-3 work days
Form Factor :
2U Rackmount
Processor :
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Slot Count :
16 DIMM slots
Drive Bays Configuration :
Default: Total 8 bays
Expansion Slots :
PCI-Express (PCIe) Configuration: Default 2 PCIe 5.0 x8 LP slots 4 PCIe 5.0 x16 LP slots M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)
Gross Weight :
69 lbs (31.2 kg)
Net Weight :
36.38 lbs (16.5kg)
Available Color :
Black
Description

Key Applications

Virtualization, Enterprise Server, Application and data serving, Compute

Intensive Applications,

Key Features

Dual Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series

processors with E-cores, up to 350W TDP (air cooled);

Up to 2TB 6400MT/s ECC DDR5 RDIMM in 16 DIMM slots;

2 RJ45 10GbE ports;

Up to 2 PCIe 5.0 x8 LP + 4 PCIe 5.0 x16 LP slots;

Up to 4 front hot-swap 3.5" NVMe/SAS/SATA + 4 front hot-swap 3.5"

SAS/SATA drive bays;

2 Redundant 1200W Titanium Level power supplies;

2U Rackmount chassis with 25.5" (647mm) depth;

Form Factor

2U Rackmount

Enclosure: 437 x 89 x 647mm (17.2" x 3.5" x 25.5")

Package: 678 x 290 x 876mm (26.7" x 11.4" x 34.5")

Processor

Dual Socket E2 (LGA-4710)

Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores

P-cores: Up to 128C/256T; Up to 336MB Cache per CPU

E-cores: Up to 144C/144T; Up to 108MB Cache per CPU

System Memory

Slot Count: 16 DIMM slots

Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM

Drive Bays Configuration

Default: Total 8 bays

4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays

4 front hot-swap 3.5" SAS*/SATA drive bays

(*NVMe/SAS support may require additional storage controller and/or cables)

M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)

Peripheral Bays: 1 slim DVD bay (optional)

Expansion Slots

PCI-Express (PCIe) Configuration: Default

2 PCIe 5.0 x8 LP slots

4 PCIe 5.0 x16 LP slots

M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)

On-Board Devices

SATA: SATA (6Gbps)

Chipset: System on Chip

Network Connectivity: 2 RJ45 10GbE

Power Supply

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimensions and Weight

Weight: Gross Weight: 69 lbs (31.2 kg)

Net Weight: 36.38 lbs (16.5 kg)

Available Color: Black
