Supermicro Ultra SuperServer SYS-620U-TNR with 3rd Gen Intel Xeon Scalable Processors, 4 Double-Width GPUs, and 32 DIMM Slots
Supermicro Ultra SuperServer SYS-620U-TNR with 3rd Gen Intel Xeon Scalable Processors, 4 Double-Width GPUs, and 32 DIMM Slots
Supermicro Ultra SuperServer SYS-620U-TNR with 3rd Gen Intel Xeon Scalable Processors, 4 Double-Width GPUs, and 32 DIMM Slots
Supermicro Ultra SuperServer SYS-620U-TNR with 3rd Gen Intel Xeon Scalable Processors, 4 Double-Width GPUs, and 32 DIMM Slots
Supermicro Ultra SuperServer SYS-620U-TNR with 3rd Gen Intel Xeon Scalable Processors, 4 Double-Width GPUs, and 32 DIMM Slots
Supermicro Ultra SuperServer SYS-620U-TNR with 3rd Gen Intel Xeon Scalable Processors, 4 Double-Width GPUs, and 32 DIMM Slots
Specifications
Brand Name :
Supermicro
Model Number :
SYS-620U-TNR
Place of Origin :
China
MOQ :
1/set
Payment Terms :
T/T
Supply Ability :
50pcs per week
Delivery Time :
2-3 work days
Form Factor :
2U Rackmount
Processor :
3rd Gen Intel® Xeon® Scalable processors
Max GPU Count :
Up to 4 double-width or 6 single-width GPUs
Supported GPU :
NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A30, A16, A2, A100, A10
Slot Count :
32 DIMM slots
Gross Weight :
57.5 lbs (26.2 kg)
Net Weight :
35.5 lbs (16.2kg)
Available Color :
Black Front & Silver Body
Power Supply :
1x 1200W Redundant Titanium Level (96%) Hot-plug power supply
Description

Key Applications

Virtualization, HPC, Cloud Computing, High End Enterprise Server, Software

Defined Storage, Application Tier Service Provider, 5G/Telco,

Key Features

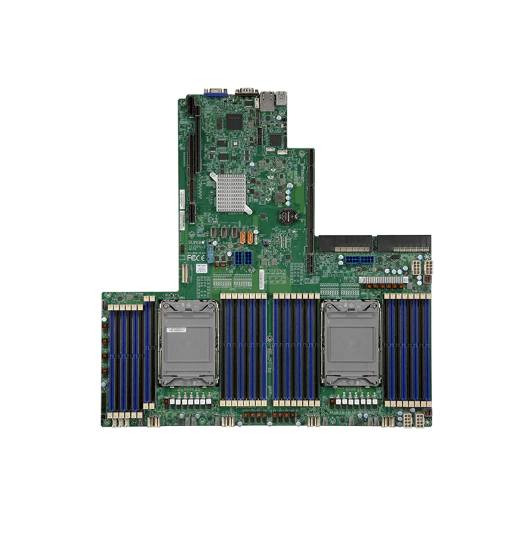

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors;

Intel® C621A Chipset;

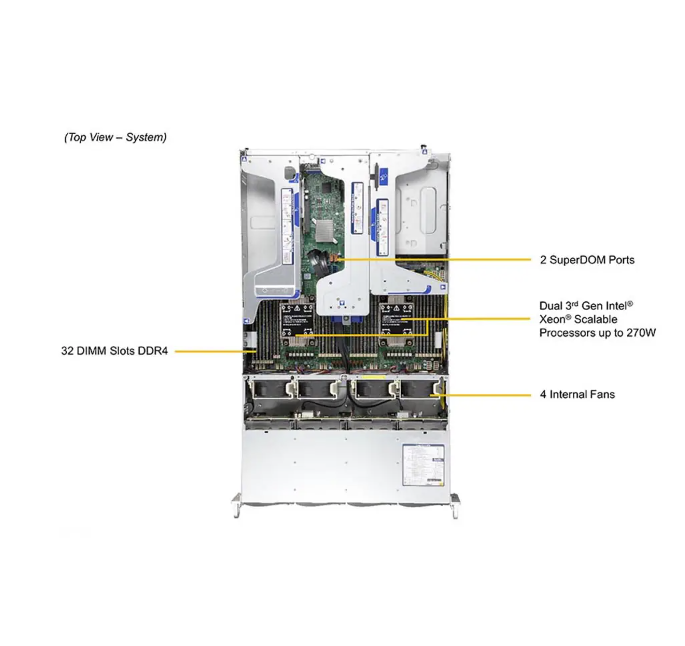

32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent

Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4

LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series;

Flexible networking options;

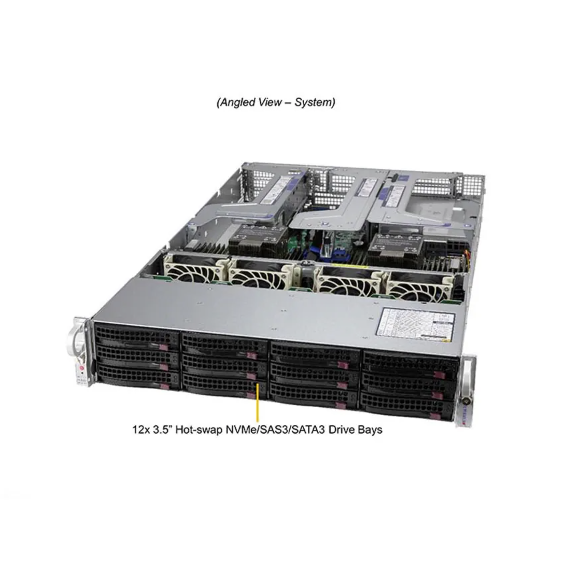

12x 3.5" hot-swap hybrid NVMe/SATA/SAS drive bays;

4 heavy duty fans with optimal fan speed control;

1200W redundant Titanium level power supplies;

Form Factor

2U Rackmount

Enclosure: 437 x 89 x 737.9mm (17.2" x 3.5" x 29.05")

Package: 605 x 256 x 947mm (23.81" x 10.07" x 37.28")

Processor

Dual Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Up to 40C/80T; Up to 60MB Cache per CPU

GPU

Max GPU Count: Up to 4 double-width or 6 single-width GPUs

Supported GPU: NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A30, A16, A2, A100, A10

System Memory

Slot Count: 32 DIMM slots

Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Supports Intel® Optane™ persistent memory 200 series

Drive Bays Configuration

Default: Total 12 bays

12 front hot-swap 3.5" NVMe/SAS*/SATA drive bays

(*SAS support may require additional storage controller and/or cables)

Expansion Slots

Default

1 PCIe 4.0 x16 (in x16) FH/10.5"L slot

5 PCIe 4.0 x8 (in x8) FH/10.5"L slots

1 PCIe 4.0 x8 (in x8) LP slot

1 PCIe 4.0 x16 (in x16) LP slot

Power Supply

1x 1200W Redundant Titanium Level (96%) Hot-plug power supply

Dimensions and Weight

Weight: Gross Weight: 57.5 lbs (26.2 kg)

Net Weight: 35.5 lbs (16.2 kg)

Available Color: Black Front & Silver Body
