Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-222H-TN 2U Rackmount Server with Intel Xeon 6700/6500 Processors, 4 GPUs, and 32 DIMM Slots
Specifications
Brand Name :
Supermicro
Model Number :
SYS-222H-TN
Place of Origin :
China
MOQ :
1/set
Payment Terms :
T/T
Supply Ability :
50pcs per week
Delivery Time :
2-3 work days
Form Factor :
2U Rackmount
Processor :
Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Max GPU Count :
Up to 4 double-width or 8 single-width GPUs
Slot Count :
32 DIMM slots
Gross Weight :
66 lbs (30 kg)
Net Weight :
40 lbs (18.2kg)
Available Color :
Silver
Description

Key Applications

Virtualization, Software-defined Storage, High Performance Computing, Cloud

Computing, Enterprise Server,

Key Features

Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series

processors with E-cores;

32 DIMM slots supporting up to 8TB of memory;

Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots

with support for double-width GPU/Accelerator cards;

Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0

compatible);

8x 2.5" hot-swap NVMe/SATA/SAS drive bays with optional configurations

for 16x/24x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe

drive slots; Optional RAID support via storage add-on card;

Form Factor

2U Rackmount

Enclosure: 438.4 x 88 x 755.2mm (17.3" x 3.5" x 29.73")

Package: 605 x 257 x 947mm (23.82" x 10.12" x 37.28")

Processor

Dual Socket E2 (LGA-4710)

Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores

P-cores: Up to 86C/172T; Up to 336MB Cache per CPU

E-cores: Up to 144C/144T; Up to 108MB Cache per CPU

GPU

Max GPU Count: Up to 4 double-width or 8 single-width GPUs

Supported GPU: NVIDIA PCIe: H100 NVL, L40S

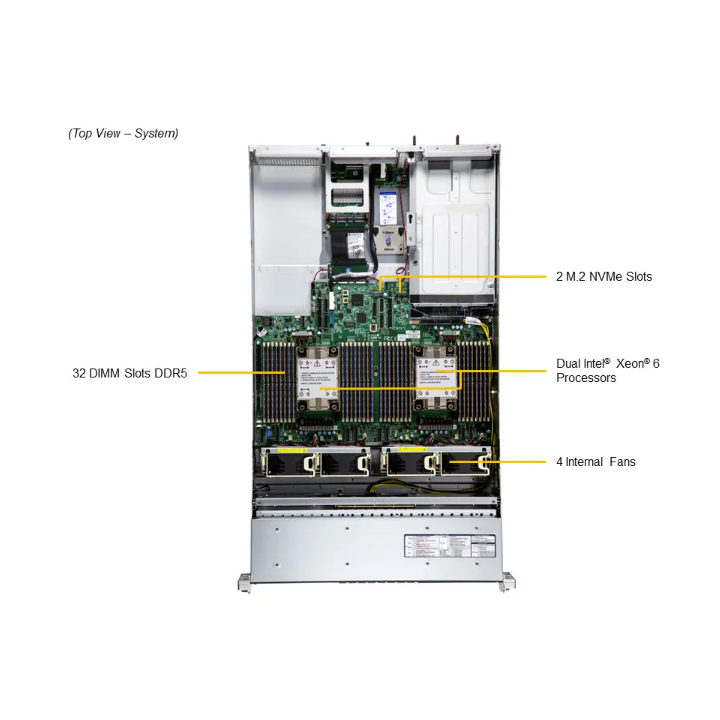

System Memory

Slot Count: 32 DIMM slots

Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM

Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only)

Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM

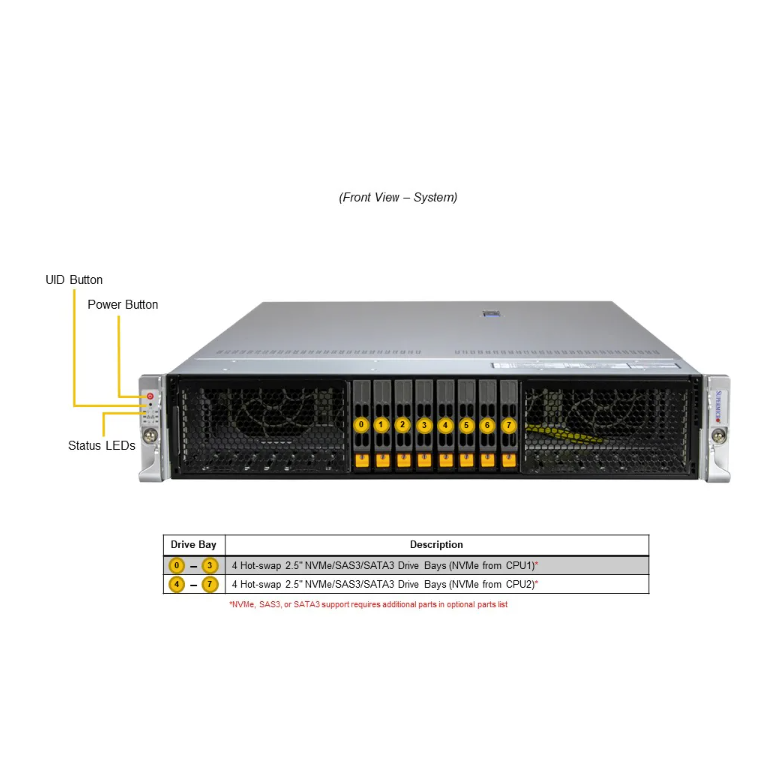

Drive Bays Configuration

Default: Total 8 bays

8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

Option A: Total 16 bays

16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

Option B: Total 24 bays

24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts

list for details)

M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)

Expansion Slots

PCI-Express (PCIe) Configuration: Option A*

4 PCIe 5.0 x16 FH/10.5"L double-width slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)

Option B*

8 PCIe 5.0 x8 (in x16) FH/10.5"L slots

1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)

CXL Support: Up to 4 CXL 2.0 x16/x8 devices

Power Supply

2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Dimensions and Weight

Weight: Gross Weight: 66 lbs (30 kg)

Net Weight: 40 lbs (18.2 kg)

Available Color: Silver
