Specifications
Brand Name :
Supermicro
Model Number :
SYS-620C-TN12R
Place of Origin :
China
MOQ :
1/set
Payment Terms :
T/T
Supply Ability :
50pcs per week
Delivery Time :
2-3 work days
Form Factor :
2U Rackmount
Processor :
Dual Socket P4 (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU
Max GPU Count :
Up to 2 double-width or 6 single-width GPUs
Supported GPU :
NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4500, A30, A16, A2, A100
Slot Count :
16 DIMM slots
Gross Weight :
59 lbs (26.76 kg)
Net Weight :
33 lbs (15 kg)
Available Color :
Black Front & Silver Body
Power Supply :
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Description
Supermicro CloudDC SuperServer SYS-620C-TN12R
Key Applications
Web Server, Firewall Application, Data Center Optimized, Value IaaS, Cloud Computing, Compact Server, DNS & Gateway Servers, Content Delivery Networks, Edge Nodes
Key Features
  • Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM
  • 4 PCIe 4.0 x8 FHHL (optional: combine into 2 PCIe 4.0 x16); 2 PCIe 4.0 x16 FHHL; 2 PCIe 3.0 x2 NVMe M.2
  • Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
  • 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 3 heavy duty fans with optimal fan speed control, 1 air shroud
  • 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
Form Factor 2U Rackmount Enclosure: 437 x 89 x 648mm (17.2" x 3.5" x 25.5")
Package: 679 x 296 x 876mm (26.7" x 11.4" x 34.5")
Processor Dual Socket P4 (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Up to 40C/80T; Up to 60MB Cache per CPU
GPU Max GPU Count: Up to 2 double-width or 6 single-width GPUs
Supported GPU: NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4500, A30, A16, A2, A100
Intel PCIe: Intel Data Center GPU Flex 170
System Memory Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel® Optane™ persistent memory 200 series
Drive Bays Configuration Default: Total 12 bays - 12 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays
Option A: Total 12 bays - 12 front hot-swap 2.5" NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables)
M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280; VROC required for RAID)
Expansion Slots Default: 4 PCIe 4.0 x8 (in x16) FHFL double-width slots, 2 PCIe 4.0 x16 FHHL slots, 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
Option A: 2 PCIe 4.0 x16 FHFL double-width slots, 2 PCIe 4.0 x16 FHHL slots, 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
Option B: 4 PCIe 4.0 x16 FHFL double-width slots, 2 PCIe 4.0 x16 FHHL slots, 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
System Cooling Fans: Up to 3x 8cm heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud
Power Supply 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimensions and Weight Weight: Gross Weight: 59 lbs (26.76 kg), Net Weight: 33 lbs (15 kg)
Available Color: Black front & silver body

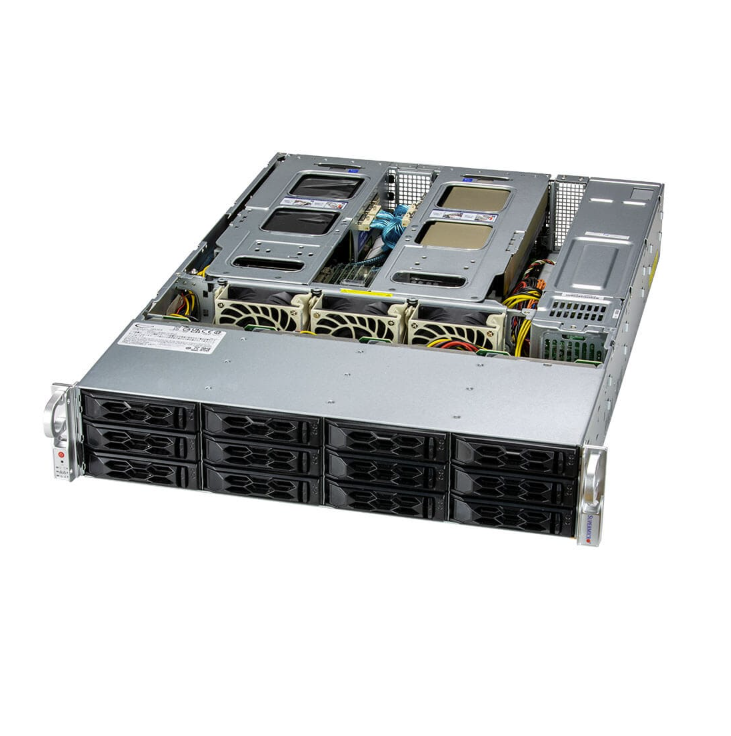

Product Images
Supermicro SuperServer SYS-620C-TN12R Storage Server with Dual Socket P4 3rd Gen Intel Xeon Scalable Processors and 12 Hot-Swap Hybrid Drive Bays Supermicro SuperServer SYS-620C-TN12R Storage Server with Dual Socket P4 3rd Gen Intel Xeon Scalable Processors and 12 Hot-Swap Hybrid Drive Bays Supermicro SuperServer SYS-620C-TN12R Storage Server with Dual Socket P4 3rd Gen Intel Xeon Scalable Processors and 12 Hot-Swap Hybrid Drive Bays
