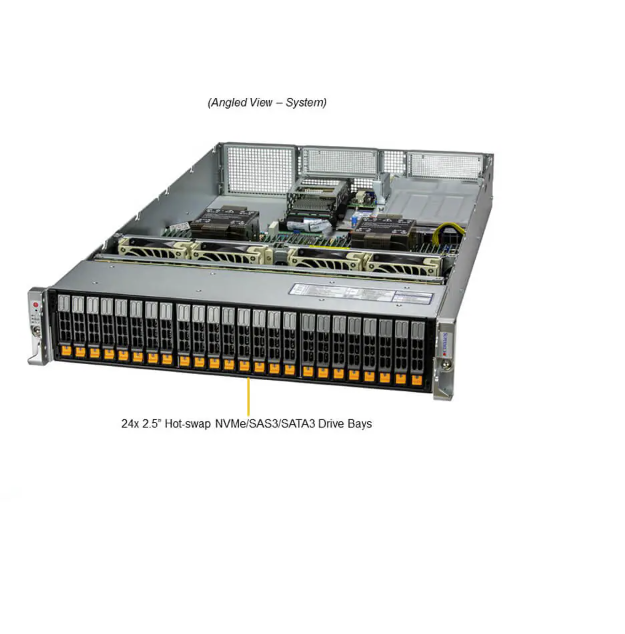

Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots
Supermicro Hyper SuperServer SYS-220H-TN24R 2U Rackmount Server with 3rd Gen Intel Xeon Scalable Processors, 4 GPUs, and 32 DIMM Slots
Specifications
Brand Name :
Supermicro
Model Number :
SYS-220H-TN24R
Place of Origin :
China
MOQ :
1/set
Payment Terms :
T/T
Supply Ability :
50pcs per week
Delivery Time :
2-3 work days
Form Factor :
2U Rackmount
Processor :
3rd Gen Intel® Xeon® Scalable processors
GPU :
Up to 4 double-width GPUs
Slot Count :
32 DIMM slots
Gross Weight :
66 lbs (30 kg)
Net Weight :
40 lbs (18.2 kg)
Available Color :
Black Front & Silver Body
Power Supply :
2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
Drive Bays Configuration :
Default: Total 24 bays
Description

Key Applications

Virtualization, Software-defined Storage, AI Inference and Machine Learning,

Cloud Computing, Enterprise Server,

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors;

32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent

Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4

LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series;

Optional PCIe slot configurations up to 8 PCIe 4.0 x8 or 4 PCIe 4.0 x16 slots

with support for double-width GPU/Accelerator cards;

Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0

compatible);

24x 2.5" hot-swap NVMe/SATA/SAS drive bays; 2x internal M.2 NVMe/SATA

drive slots; Optional RAID support via storage add-on card;

4 heavy duty hot-swap fans with optimal fan speed control;

Form Factor

2U Rackmount

Enclosure: 437 x 88.9 x 760mm (17.2" x 3.5" x 29.9")

Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6")

Processor

Dual Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Up to 40C/80T; Up to 60MB Cache per CPU

GPU

Up to 4 double-width GPUs

System Memory

Slot Count: 32 DIMM slots

Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4

Supports Intel® Optane™ persistent memory 200 series

Drive Bays Configuration

Default: Total 24 bays

24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

(*NVMe/SAS/SATA support may require additional storage controller and/or cables)

M.2: 2 M.2 NVMe/SATA slots (M-key 2280/22110)

Expansion Slots

Default*

8 PCIe 4.0 x8 (in x16) FH/10.5"L slots

2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

Option A*

2 PCIe 4.0 x8 (in x16) FH/10.5"L slots

3 PCIe 4.0 x16 FH/10.5"L slots

2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot

configuration options, please refer to the system callout images above.)

Power Supply

2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies

Dimensions and Weight

Weight: Gross Weight: 66 lbs (30 kg)

Net Weight: 40 lbs (18.2 kg)

Available Color: N/A
