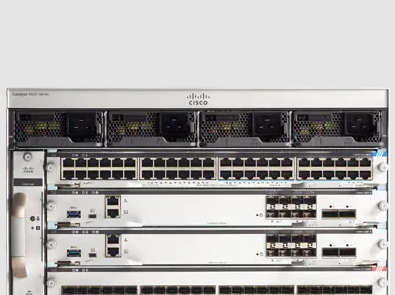

Cisco Catalyst 9400 Series C9404R Chassis
Cisco Catalyst 9400 Series C9404R Chassis
Cisco Catalyst 9400 Series C9404R Chassis
Cisco Catalyst 9400 Series C9404R Chassis
Cisco Catalyst 9400 Series C9404R Chassis
Cisco Catalyst 9400 Series C9404R Chassis
Specifications
Brand Name :
Cisco
Model Number :
C9404R
Certification :
ce
Place of Origin :
China
MOQ :
2 pieces
Payment Terms :
L/C,T/T
Delivery Time :
3-6days
Packaging Details :
BOX
Total number of slots :
4
Rack Units (RU) :
6 RU
Chassis weight (with fan tray) :
39.0 lb (17.2 kg)
Dimensions (H x W x D) :
10.47 x 17.30 x 16.30 in. (26.53 x 43.94 x 41.40 cm)
Line-card slots :
2
Supervisor engine slots :
2
Dedicated supervisor engine slot numbers :
2 and 3
Maximum PoE per slot :
4320W
Power supplies supported :
3200W AC, 2100W AC, 3200W DC
Description

The Cisco Catalyst 9400 Series offers three chassis options and a wide range of line card options It provides a common architecture that can scale up to 400 ports. Cisco StackWise Virtual technology doubles this port density by virtually stacking two Catalyst 9400 modular switches in a single logical switch.

The Catalyst 9400 Series chassis is enterprise optimized with efficient side-to-side airflow and full front accessibility for all removable components, including supervisors, line cards, power supplies and fan tray. The chassis also supports optional rear accessibility for fan trays to enable efficient cable management. Catalyst 9400 Series chassis, supervisor, line cards, power supplies and fan trays have embedded RFID tags which facilitate easy asset and inventory management using commercial RFID readers.


Feature

Cisco Catalyst C9404R Chassis

Total number of slots

4

Line-card slots

2

Supervisor engine slots

2

Dedicated supervisor engine slot numbers

2 and 3

Supervisor engine redundancy

YES

Supervisor engines supported

C9400X-SUP-2XL, C9400X-SUP-2,
C9400-SUP-1XL,
C9400-SUP-1XL-Y, C9400-SUP-1

Maximum PoE per slot

4320W

Maximum Bandwidth scalability per line-card slot

Up to 480 Gbps on all slots

Number of power supply bays

4

AC input power

YES

Power supplies supported

3200W AC, 2100W AC,

3200W DC

Dimensions (H x W x D)

10.47 x 17.30 x 16.30 in.

(26.53 x 43.94 x 41.40 cm)

Rack Units (RU)

6 RU

Chassis weight (with fan tray)

39.0 lb (17.2 kg)


Cisco Catalyst 9400 Series C9404R Chassis
