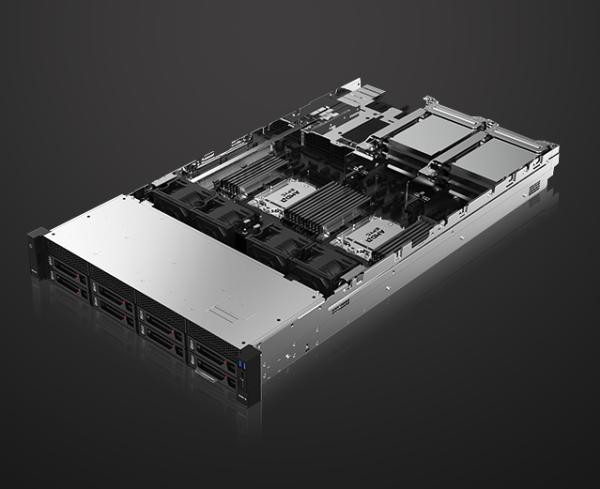

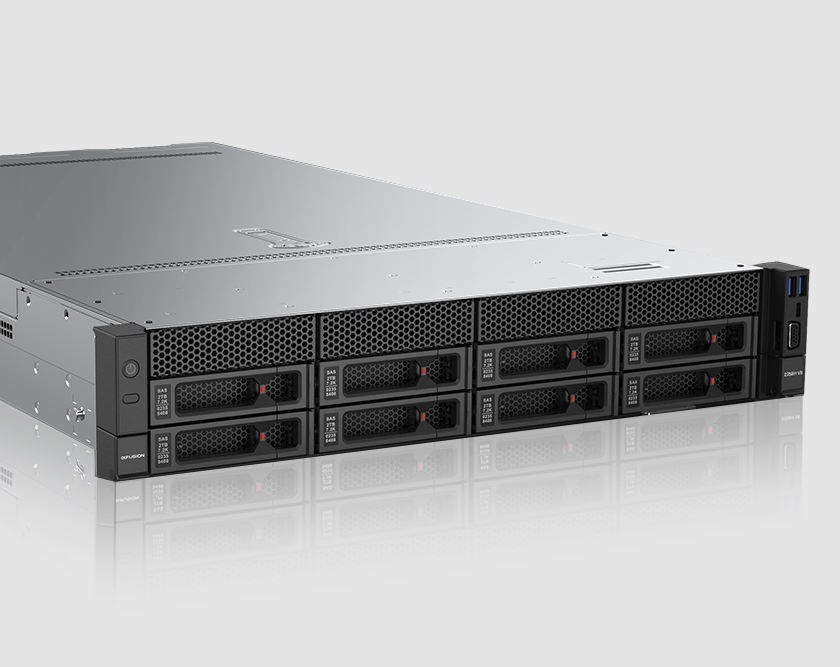

Xfusion FusionServer 2258H V8 2U Rack Server with 5th-Gen EPYC™ 9005 Series Processor, 24 DDR5 DIMMs, and 10 PCIe 5.0 Expansion Slots
Xfusion FusionServer 2258H V8 2U Rack Server with 5th-Gen EPYC™ 9005 Series Processor, 24 DDR5 DIMMs, and 10 PCIe 5.0 Expansion Slots
Xfusion FusionServer 2258H V8 2U Rack Server with 5th-Gen EPYC™ 9005 Series Processor, 24 DDR5 DIMMs, and 10 PCIe 5.0 Expansion Slots
Xfusion FusionServer 2258H V8 2U Rack Server with 5th-Gen EPYC™ 9005 Series Processor, 24 DDR5 DIMMs, and 10 PCIe 5.0 Expansion Slots
Xfusion FusionServer 2258H V8 2U Rack Server with 5th-Gen EPYC™ 9005 Series Processor, 24 DDR5 DIMMs, and 10 PCIe 5.0 Expansion Slots
Xfusion FusionServer 2258H V8 2U Rack Server with 5th-Gen EPYC™ 9005 Series Processor, 24 DDR5 DIMMs, and 10 PCIe 5.0 Expansion Slots
Xfusion FusionServer 2258H V8 2U Rack Server with 5th-Gen EPYC™ 9005 Series Processor, 24 DDR5 DIMMs, and 10 PCIe 5.0 Expansion Slots
Xfusion FusionServer 2258H V8 2U Rack Server with 5th-Gen EPYC™ 9005 Series Processor, 24 DDR5 DIMMs, and 10 PCIe 5.0 Expansion Slots
Specifications
Processor :
2 x5th-Gen EPYC™ 9005 series (Turin) processor with up to 500 W TDP per processor
Model Number :
2258H V8
Form Factor :
2U rack server
Brand Name :
Xfusion
PCIe Expansion :
10 x PCIe expansion slots; support PCIe 5.0
Payment Terms :
T/T
Operating Temperature :
5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1 to A4
Delivery Time :
2-3 work days
Dimensions (H x W x D) :
86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
Security :
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection
Supply Ability :
50pcs per week
Memory :
24 x DDR5 DIMMs, delivering up to 6400 MT/s
Place of Origin :
China
Network :
2 x OCP 3.0 NICs, which can be configured as required; support hot swap and PCIe 5.0
MOQ :
1/set
Description

Major application scenarios: IT core operations, Cloud computing, HPC

The FusionServer 2258H V8 is a next-generation 2U2P rack server designed to meet the demands of High-Performance Computing (HPC), Internet Data Center (IDC), and cloud computing.

Featuring low energy consumption, exceptional scalability, proven reliability, and ease of management and deployment, the 2258H V8 is the perfect choice for IT core operations in Internet and telecom.

Form Factor 2U rack server
Processor 2 x5th-Gen EPYC™ 9005 series (Turin) processor with up to 500 W TDP per processor
Memory 24 x DDR5 DIMMs, delivering up to 6400 MT/s
Local storage
  • 8 x 2.5″ SAS/SATA/NVMe drives
  • 16/24 x NVMe drives*
  • 8 x 2.5“ NVMe drives, Support hard raid*
  • 8 x 3.5″ SAS/SATA/NVMe drives
  • 4 x rear-mounted 2.5“ NVMe drives
  • 2 x M.2 SSDs (SAS/SATA)
RAID RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitor for cache data protection against power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network 2 x OCP 3.0 NICs, which can be configured as required; support hot swap and PCIe 5.0
PCIe Expansion 10 x PCIe expansion slots; support PCIe 5.0
GPU Supports 4 x dual-width GPUs
Fan Module Four 80 x 80 hot-swappable counter-rotating fan modules in N+1 redundancy
OS xFusion FusionOS, SUSE Linux Enterprise Server, VMware vSphere, Red Hat Enterprise Linux and Rocky Linux.
Security Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection
Operating temperature 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1 to A4
Dimensions (H x W x D) 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
