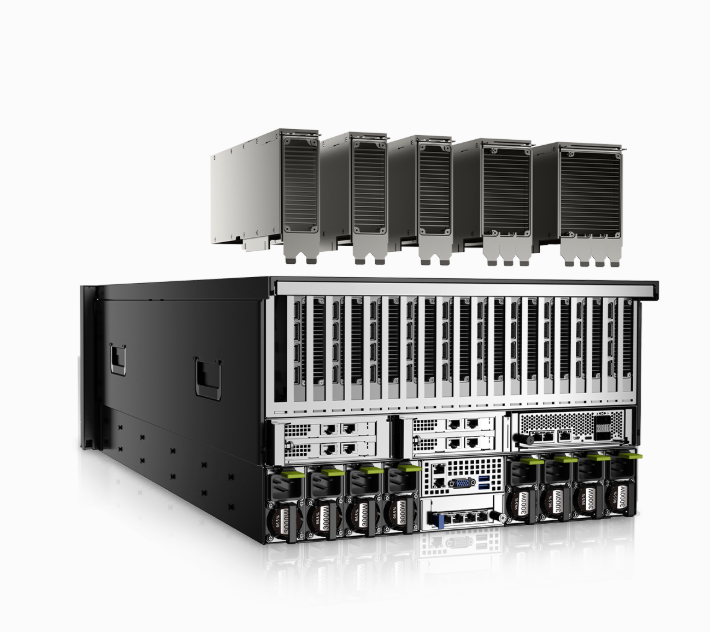

FusionServer G6550 V8 6U AI server with 5th Gen AMD EPYC™ 9005 Series processors, 10 dual-width GPU accelerator cards, and 24 DDR5 DIMM slots
FusionServer G6550 V8 6U AI server with 5th Gen AMD EPYC™ 9005 Series processors, 10 dual-width GPU accelerator cards, and 24 DDR5 DIMM slots
FusionServer G6550 V8 6U AI server with 5th Gen AMD EPYC™ 9005 Series processors, 10 dual-width GPU accelerator cards, and 24 DDR5 DIMM slots
FusionServer G6550 V8 6U AI server with 5th Gen AMD EPYC™ 9005 Series processors, 10 dual-width GPU accelerator cards, and 24 DDR5 DIMM slots
FusionServer G6550 V8 6U AI server with 5th Gen AMD EPYC™ 9005 Series processors, 10 dual-width GPU accelerator cards, and 24 DDR5 DIMM slots
FusionServer G6550 V8 6U AI server with 5th Gen AMD EPYC™ 9005 Series processors, 10 dual-width GPU accelerator cards, and 24 DDR5 DIMM slots
FusionServer G6550 V8 6U AI server with 5th Gen AMD EPYC™ 9005 Series processors, 10 dual-width GPU accelerator cards, and 24 DDR5 DIMM slots
FusionServer G6550 V8 6U AI server with 5th Gen AMD EPYC™ 9005 Series processors, 10 dual-width GPU accelerator cards, and 24 DDR5 DIMM slots
Specifications
Delivery Time :
2-3 work days
Fan :
GPU: 12 or 18 x 6056++ fans in N+1 redundancy CPU: 6 x 6056++ fans in N+1 redundancy
PSU :
8 x 3200 W single-input or dual-input CRPSs in N+N redundancy
Model Number :
G6550 V8
Processor :
2 x 5th Gen AMD EPYC™ 9005 Series processors, each with up to 500 W TDP
Payment Terms :
T/T
GPU :
Supports 10 dual-width GPU accelerator cards or 20 single-width accelerator cards
Dimensions (H x W x D) :
263.9 mm x 447 mm x 850 mm (10.39 in. x 17.60 in. x 33.46 in.)
Supply Ability :
50pcs per week
Network :
1 x OCP 3.0 NIC
Brand Name :
Xfusion
Form Factor :
6U AI server
Place of Origin :
China
Memory :
24 x memory slots available for DDR5 DIMMs at up to 6400 MT/s
MOQ :
1/set
Local Storage :
–Up to 10 x 2.5″ SAS/SATA/NVMe drives –supports two M.2 SSDs
Description

FusionServer G6550 V8 is a next-generation air-cooled AI server designed for large model training and inference. Featuring high performance, reliability, and flexible configurations, it accelerates AI, HPC, video analysis, and database workloads to drive industry transformation.

Form factor 6U AI server
Processor 2 x 5th Gen AMD EPYC™ 9005 Series processors, each with up to 500 W TDP
Memory 24 x memory slots available for DDR5 DIMMs at up to 6400 MT/s
Local Storage

–Up to 10 x 2.5″ SAS/SATA/NVMe drives

–supports two M.2 SSDs
RAID

RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitors for cache data protection from power failures;

RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
GPU Supports 10 dual-width GPU accelerator cards or 20 single-width accelerator cards
Network 1 x OCP 3.0 NIC
PCle Expansion

–Passthrough model:Up to 11 x standard PCIe 5.0 slots

–Switch model:Up to 15 x standard PCIe 5.0 slots
Fan

GPU: 12 or 18 x 6056++ fans in N+1 redundancy

CPU: 6 x 6056++ fans in N+1 redundancy
Psu 8 x 3200 W single-input or dual-input CRPSs in N+N redundancy
Management

– The iBMC chip integrates one dedicated management GE port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.

– The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote

management user interface based on HTML5/VNC KVM, and supports out-of-band management

functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified

management.

– It is optional to configure FusionDirector that enables intelligent, automatic, visualized, and refined

management throughout the server lifecycle.
OS

SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux,

Oracle, Ubuntu, and openEuler
Security Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection
Operating Temperature 5ºC to 35ºC (41ºF to 95ºF), compliant with ASHRAE Class A1/A2
Certification CE, UL, CCC, FCC, VCCI, and RoHS
Installation Suite L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D) 263.9 mm x 447 mm x 850 mm (10.39 in. x 17.60 in. x 33.46 in.)

FusionServer G6550 V8 6U AI server with 5th Gen AMD EPYC™ 9005 Series processors, 10 dual-width GPU accelerator cards, and 24 DDR5 DIMM slots
