Specifications
Delivery Time :
Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated
Processor :
Up to two 4th or 5th generation Intel® Xeon® Scalable processors (codenamed Sapphire Rapids and Emerald Rapids), with up to 64 cores and a thermal design power (TDP) of 350W
Model Number :
WenTian WA5480 G3
Price :
$14,206.93-$15,221.71/sets
Payment Terms :
T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Drive Bays :
24 x 2.5" SAS/SATA/NVMe (supports up to 12 NVMe drives, of which 8 are from the motherboard and 4 from the PCIe switch) or 12 x 3.5" SAS/SATA/NVMe (supports up to 4 NVMe drives, from the motherboard) Internal: - 2 x M.2 SATA/NVMe boot drives, supporting RA
model number :
WenTian WA5480 G3
Place of Origin :
China
Supply Ability :
Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated
MOQ :
1
Packaging Details :
Carton with waterproof warpped
Power Supply :
Supports N+N redundant hot-swappable power supplies (2+2) CRPS; Platinum and Titanium models available; 1600W, 2200W, 2700W, 3200W
PCIe I/O expansion :
SKU1: 8 GPUs (supports up to 10 GPUs) - 8 x PCIe (Gen 5 x16 link FHFL, PCIe switch direct) - 2 x PCIe (Gen 5 x16 link FHFL, PCIe switch direct) - 3 x PCIe (Gen 5 x16 link FHFL, CPU direct) - 2 x PCIe (Gen 5 x8 link FHFL, CPU direct) for RAID cards - 1 x OC
RAM :
Supports 32 DDR5 DIMMs, with 8 channels per CPU; the maximum frequency for 1DPC is 5600 MHz; the maximum frequency for 2DPC is 4800 MHz
Description

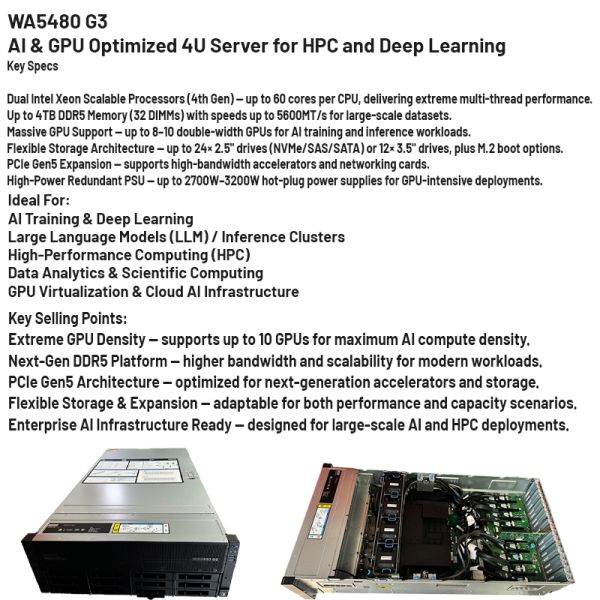

Lenovo WA5480 G3 Rack-mounted 4U Server
Enterprise-grade virtualization, high-performance computing, and data storage solution designed for demanding workloads.
Lenovo WenTian WA5480 G3 4U GPU Server with 10 GPUs, DDR5 Memory, and PCIe Gen5 for High-Performance Computing Lenovo WenTian WA5480 G3 4U GPU Server with 10 GPUs, DDR5 Memory, and PCIe Gen5 for High-Performance Computing Lenovo WenTian WA5480 G3 4U GPU Server with 10 GPUs, DDR5 Memory, and PCIe Gen5 for High-Performance Computing Lenovo WenTian WA5480 G3 4U GPU Server with 10 GPUs, DDR5 Memory, and PCIe Gen5 for High-Performance Computing Lenovo WenTian WA5480 G3 4U GPU Server with 10 GPUs, DDR5 Memory, and PCIe Gen5 for High-Performance Computing Lenovo WenTian WA5480 G3 4U GPU Server with 10 GPUs, DDR5 Memory, and PCIe Gen5 for High-Performance Computing Lenovo WenTian WA5480 G3 4U GPU Server with 10 GPUs, DDR5 Memory, and PCIe Gen5 for High-Performance Computing
Key Features
  • Extreme GPU Density – Supports up to 10 GPUs for maximum AI compute density
  • Next-Gen DDR5 Platform – Higher bandwidth and scalability for modern workloads
  • PCIe Gen5 Architecture – Optimized for next-generation accelerators and storage
  • Flexible Storage & Expansion – Adaptable for both performance and capacity scenarios
  • Enterprise AI Infrastructure Ready – Designed for large-scale AI and HPC deployments
Technical Specifications
Type Rack Server
Processor Up to two 4th or 5th generation Intel® Xeon® Scalable processors (Sapphire Rapids and Emerald Rapids), with up to 64 cores and 350W TDP
RAM Supports 32 DDR5 DIMMs, 8 channels per CPU; Maximum frequency: 5600 MHz (1DPC), 4800 MHz (2DPC)
Drive Bays 24 x 2.5" SAS/SATA/NVMe (supports up to 12 NVMe drives) or
12 x 3.5" SAS/SATA/NVMe (supports up to 4 NVMe drives)
Internal: 2 x M.2 SATA/NVMe boot drives with RAID support
I/O Expansion SKU1: 8 GPUs (supports up to 10 GPUs)
- 8 x PCIe (Gen 5 x16 link FHFL, PCIe switch direct)
- 2 x PCIe (Gen 5 x16 link FHFL, PCIe switch direct)
- 3 x PCIe (Gen 5 x16 link FHFL, CPU direct)
- 2 x PCIe (Gen 5 x8 link FHFL, CPU direct) for RAID cards
- 1 x OCP 3.0 (Gen 5 x16 link, CPU direct)

SKU2: 8-GPU direct
- 8 x PCIe (Gen 5 x16 link FHFL, CPU direct)
- 2 x PCIe (Gen 5 x16 link FHFL, CPU direct) or 1 x PCIe + OCP 3.0

SKU3: 4-GPU direct
- 4 x PCIe (Gen5 x16 link FHFL, CPU direct)
- 2 x PCIe (Gen5 x16 link FHFL, CPU direct)
- 1 x OCP 3.0 (Gen5 x16 link, CPU direct)
Management Lenovo BMC with management software, dual BIOS/BMC FLASH dual images
Operating System Microsoft, SUSE, Red Hat, VMware, Ubuntu, etc.
GPU Support 8 double-width GPUs or 4 triple-width GPUs, with support for up to 10 double-width GPUs
Operating Temperature 10-35°C
Ports Front: 1 x USB 3.0 Gen 1, 1 x USB 2.0 for BMC, 1 x VGA (optional)

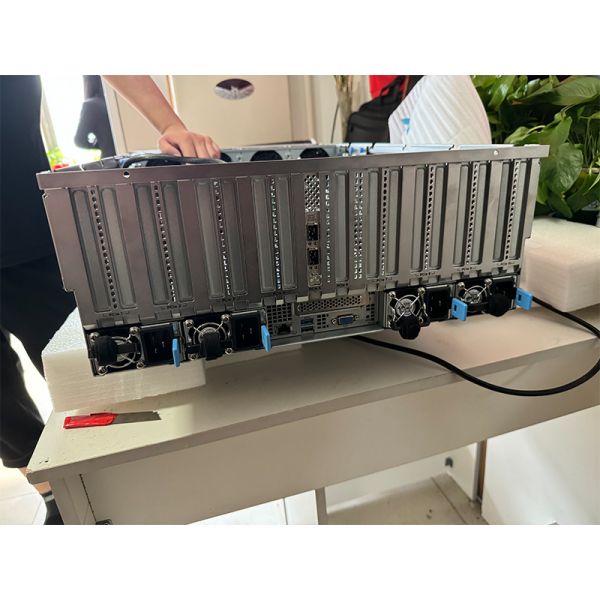

Rear: 2 x USB 3.0 Gen 1, 1 x VGA, 1 x 1GbE RJ45 (management), 1 x serial port (optional)
Cooling System Supports 8 8056 fans with N+1 redundancy
Dimensions (H x W x D) 174.5 mm × 447 mm × 842.8 mm (excluding front panel)
HBA/RAID Support SATA with SW RAID (0, 1, 5, 10); standard and internal PCIe RAID/HBA adapters
Lenovo WenTian WA5480 G3 4U GPU Server with 10 GPUs, DDR5 Memory, and PCIe Gen5 for High-Performance Computing
