Genitec We are PCB separator expert. We provide PCB depaneling total solution.

Genitec founded in Taiwan in 1993. We have two factories for over 20000 square meters.

We produce most kind of PCB separator. Including PCB router, laser PCB separator, V-cut,

PCB/FPC punching machine.

If you have any project about PCB depaneling, welcome your inquiry, we will provide you solution.

PCB Laser Cutting Machine Features

- Provide auto tool-change mechanism. Efficiency of operation is promoted significantly.

- Equipped with high-speed CCD vision alignment system in all series of products to enhance the precision

in cutting and efficiency in operation.

- Use high-speed spindle with small cutting stress to precisely cut PCB of any shape.

- Provide dual worktables for placing and cutting PCB in parallel to enhance the efficiency of operation.

- Patented dust collector with low noise and high efficiency. Easy to clean and maintain.

- Windows OS and window-based interface panel. Safe, stable, easy to learn and operate.

Operation

Operation interface is clear, friendly, and simple. Easy to learn and start quickly.

Functional items are clear and well categorized. Very easy to set the parameters for milling tool and fixture.

Provide four levels of authorization control according to user's job rank.

The "History" can display the historical records of operation.

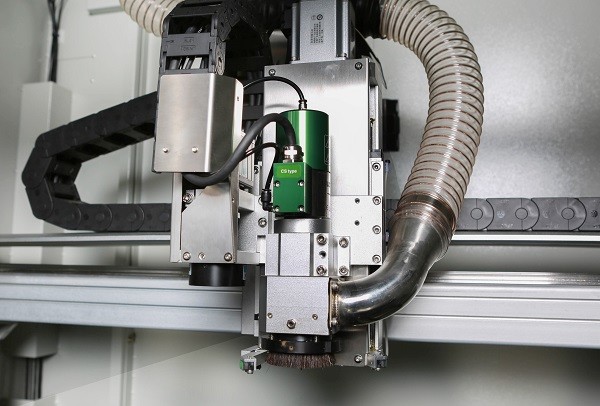

Milling Tool Detection

Provide capability of detecting broken/dropped/reversed milling tool for auto tool-change.

Dual Worktables

Provide dual worktables so that placing and cutting PCB can be performed in parallel to minimize the waiting time

and enhance the efficiency of operation.

The moving in and out of worktables are driven by precision screws. Has high speed and high precision.

Adding safety light curtain is available (optional).

Vision-Aided Position Calibration

Use computer vision with high-quality CCD to automatically position the mark points and enhance the accuracy of cutting.

Can edit the path-planning program and simulate the cutting path to avoid wrong cutting.

The Whole PCB Scanning Function For Editing Cutter’s Routing Path

The function of scanning the whole PCB allows the user to facilitate correcting and editing the cutter’s routing path rapidly.

Spindle

High-speed precision spindle (60,000RPM).

Include auto tool-change in standard configuration.Save labor and time costs for tool-change.

Dust Collection Mechanism

The “ Lower dust collector” is included the standard configuration. The “upper dust collector”is available based on the need(optional).

PCB Laser Cutting Machine Specification
