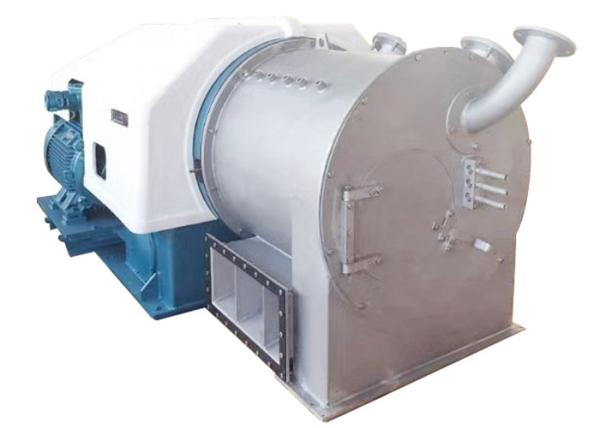

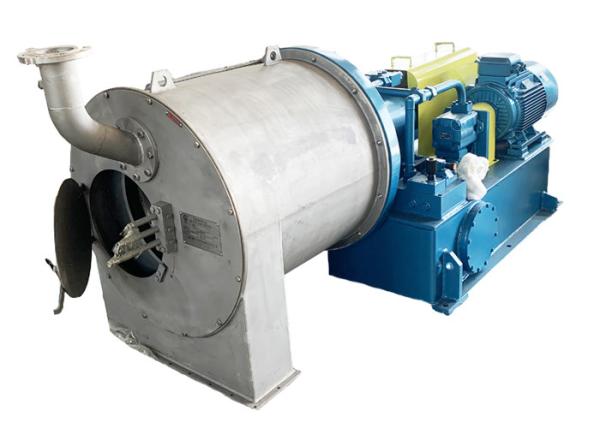

Continuous Two Stage Pusher Centrifuge Large Capacity Industrial Sea Salt Dewatering
Continuous Two Stage Pusher Centrifuge Large Capacity Industrial Sea Salt Dewatering
Continuous Two Stage Pusher Centrifuge Large Capacity Industrial Sea Salt Dewatering
Continuous Two Stage Pusher Centrifuge Large Capacity Industrial Sea Salt Dewatering
Continuous Two Stage Pusher Centrifuge Large Capacity Industrial Sea Salt Dewatering
Continuous Two Stage Pusher Centrifuge Large Capacity Industrial Sea Salt Dewatering
Specifications
Brand Name :
Peony
Model Number :
PP-60
Certification :
ISO9001&ISO14001,CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
20 sets/month
Delivery Time :
90 days
Packaging Details :
Standard export packings
Application :
Pusher Centrifuge Used For Lysine application
Name :
2stage pusher Centrifuge
Separation effection :
Moisture in the cake less than 4%
Advanced technology :
Sulzer
Capacity :
1-45t/hr
Operation :
Automatic continuous
Voltage :
220V/380V
Weight :
According to different size
Description

PP-60 Two Stage Pusher Centrifuge

Description

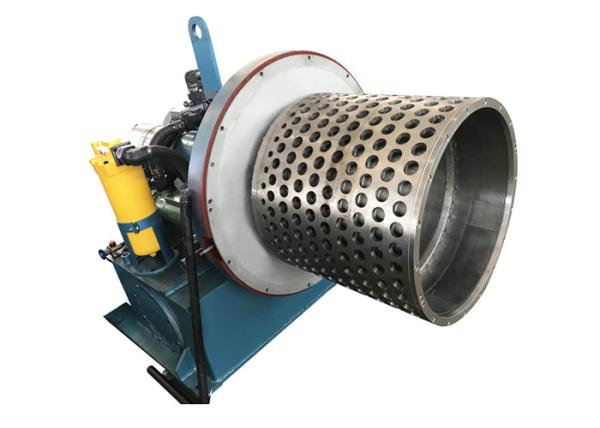

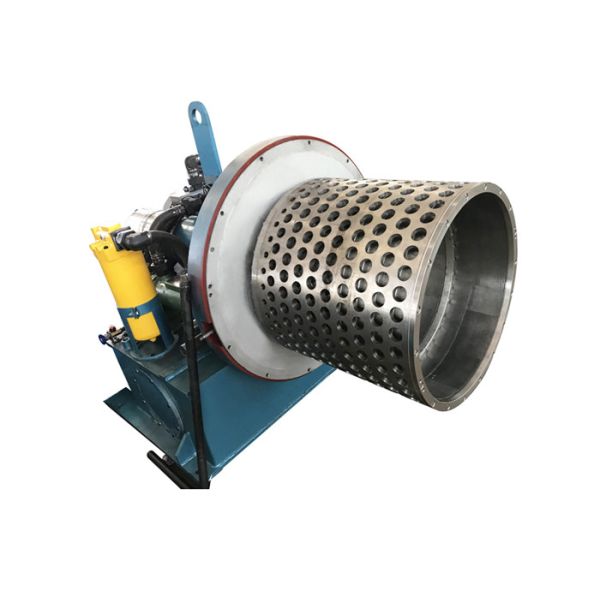

Model PP Sulzer Double Stage Salt Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force,departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .

The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.

Service

★ 12 months guarantee period from machine arriving date.
☆ Abundant spare parts in stock are available to provide.
★ Our technicians could be dispatched for overseas service.
☆ 7*24 hours technical consultation.
★ Your workers could get trained both in our factory and yours.
☆ Routine tracing till the machine work properly will be done timely.
★ We will remind you to do the normal maintenance.
☆ Your suggestions or any comments & reflection would be treated in priority.
★ Marketing team will visit you during our visit in your country if you require.

Technical Parameters of PP-60

Equipment

2 stage pusher centrifuge

Spec.

PP-60

Qty

set

Technical parameters

1

Basket diameter

560/630 mm

2

Basket Rotate Speed (Max)

1360 r/min

3

Stroke of Pusher Mechanism

70-80 times/min

4

First, second stage mesh aperture (as per the material)

mm, mm

5

G-force

570-642

6

Main motor

Spec/Power

55KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

7

Oil pump motor

Spec/Power

30KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

8

Oil pump

Spec.

NB5D140F

outflow

140ml/turn

Maximum pressure

8Mpa

9

Overall size

3127mm × 1700mm × 1955mm

10

Weight

4860kg

11

Shell type

open

12

Output

≥15T/h (Mineral salt)

13

Moisture content after separation:

≤3%
