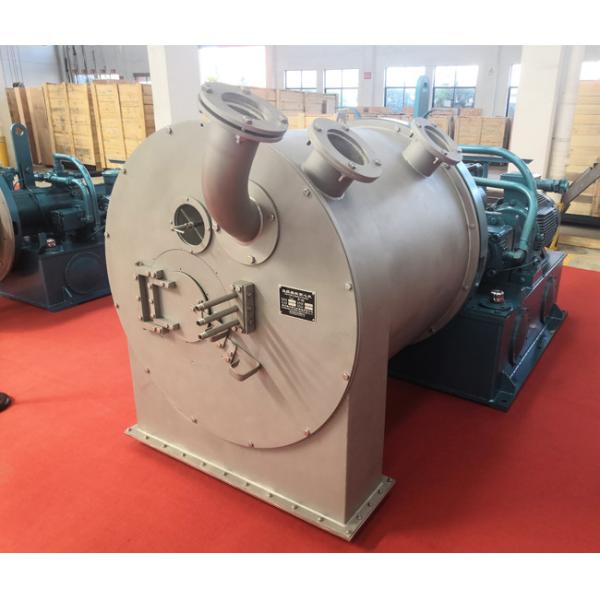

Continuous Two Stage Pusher Salt Centrifuge With CE Certificate
Continuous Two Stage Pusher Salt Centrifuge With CE Certificate
Continuous Two Stage Pusher Salt Centrifuge With CE Certificate
Continuous Two Stage Pusher Salt Centrifuge With CE Certificate
Specifications
Brand Name :
Peony
Model Number :
PP
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
20 sets/month
Delivery Time :
60 days
Packaging Details :
Standard export packings
Application :
Sea salt, mineral salt, copper sulphate dewatering
Sieve slot :
Customerized
MOC :
SS304,SS316,DUPLEX SS
Control :
PLC
Design :
SUZLER
Operation :
Continuous
Temperature allowed :
Below 105degree
Discharge :
Pushing type
Electrical elements :
Famous brand
Humidity in the cake :
Humidity in the cake
Model :
PP-25
Condition :
New
Product type :
centrifuge separator
Type :
Fully Automatic
Warranty :
12 months
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support
Material :
304/316L stainless steel
Name :
decanter centrifuge
Moc :
Stainless steel
Machine type :
Centrifuge
Description

Description

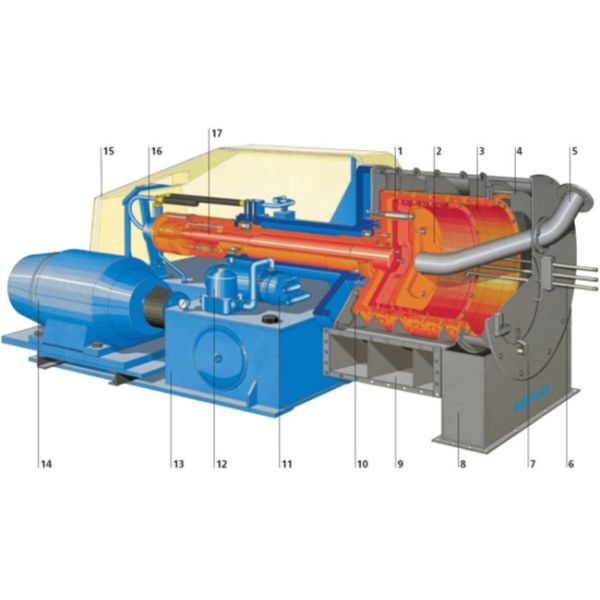

PP series Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket.

Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .

The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket.

In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.

Continuous Two Stage Pusher Salt Centrifuge With CE Certificate


Advantages
1.Big capacity with full automatic operation
2.Low moisture in the cake after separation
3.Robster material to resit the corrosion,DSS material will be used as optional
4.SKF bearing and strong collocation ,with over than 15years working life
5.CE certificate

Technical parameters

Model Basket diameter(mm) Speed(mm) Main motor(kw)
PP-25 200/251 3000 7.5
PP-40 290/360 2500 11-15
PP-50 438/500 2000 37-45
PP-60 560/630 1360 55


Pictures

Continuous Two Stage Pusher Salt Centrifuge With CE Certificate

Continuous Two Stage Pusher Salt Centrifuge With CE Certificate

Contact us

Zhangjiagang Peony Machinery Co., Ltd
Add: Leyu Developing Zone, Zhangjiagang City, Jiangsu Pro, China.
Web: www.peonyfns.com, www.peonycentrifuge.com, www.separator-centrifuge.com
Tel: 0086 512 56998960/56300801
Fax: 0086 512 58797983
Mobile: 0086 19951199986(WhatsApp)
