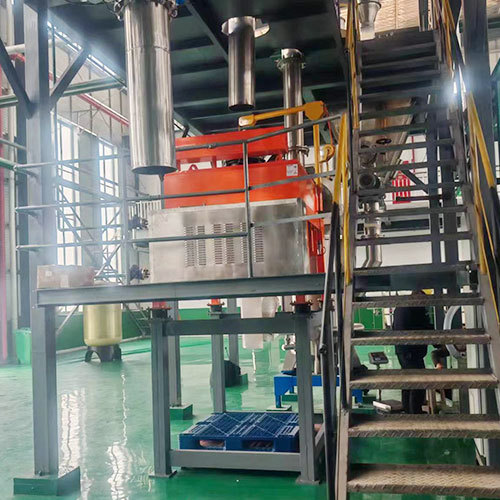

High Efficiency Purification Dry Powder Electromagnetic Filter For High Purity Battery Material Production
High Efficiency Purification Dry Powder Electromagnetic Filter For High Purity Battery Material Production
High Efficiency Purification Dry Powder Electromagnetic Filter For High Purity Battery Material Production
High Efficiency Purification Dry Powder Electromagnetic Filter For High Purity Battery Material Production
Specifications
Brand Name :
M.Y
Model Number :
MYGF-1
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
1-1000000 USD
Payment Terms :
Prepay 30%,70% of payment before shipping
Supply Ability :
＞100
Delivery Time :
25-60 Days
Packaging Details :
Export Wooden
Manufacturer :
Tianjin Minyang Machinery
Product Name :
Dry Powder Electromagnetic Filter
Core Working Method :
Combination of electromagnetic adsorption and screening interception
Application Scenario :
Powder
Purification Efficiency :
Iron removal rate can reach more than 99%
Description

Core Product Advantages

  1. Ultra-High Purification Precision: The strong magnetic field gradient can adsorb micron-level ferromagnetic impurities with an iron removal rate of over 99%. It also intercepts non-magnetic particles simultaneously, perfectly meeting the stringent purity requirements of lithium battery cathode, anode materials and photovoltaic powders, and avoiding material performance degradation caused by impurities.
  2. Green and Non-Intrusive Processing: Adopting the physical adsorption principle, it does not change the chemical properties of materials and causes no consumable pollution. It eliminates secondary pollution from chemical purification, complies with the clean production standards of the new energy industry, and helps products pass international environmental certifications.
  3. Intelligent Continuous Operation: It starts immediately upon power-on. After power-off, impurities can be automatically cleaned by backflushing and vibration. Equipped with an automatic slag discharge system, it can realize 24-hour continuous production, greatly reducing manual operation and maintenance costs, and adapting to the large-scale production line needs of the new energy industry.
  4. International Compliance Assurance: Relying on the three major system certifications of ISO9001 Quality Management, ISO14001 Environmental Management and ISO45001 Occupational Health and Safety Management, the production process is in line with international standards. It can smoothly break through the market access barriers in Europe, America, Southeast Asia and other regions, and enhance customer cooperation trust.

    High Efficiency Purification Dry Powder Electromagnetic Filter For High Purity Battery Material Production

Product Parameter Table

Parameter Name Specification Range
Magnetic Field Strength 9000-13000 GS (Optional)
Processing Capacity 3.5-24 m³/h
Operating Temperature 80-250℃ (High-temperature version can be customized)
Material Parts in contact with materials are made of 304/316L stainless steel, corrosion-resistant and easy to clean
Protection Grade IP54/IP66 (Optional, suitable for workshop dust environment)
Power Starting from 0.4kw, low energy consumption and controllable operating cost

Frequently Asked Questions (QA)

Q1: Can the equipment adapt to the processing of high-humidity powders for lithium battery materials?
A1: It can adapt to dry powder materials with different humidity levels. The filter element structure can be customized to avoid material caking and reduced adsorption efficiency caused by humidity.
Q2: Is it necessary to shut down the machine for impurity cleaning, which affects production efficiency?
A2: It supports quick cleaning after power-off. Equipped with an automated system, it can realize non-stop slag discharge and ensure the continuous operation of the production line.
Q3: Does the product comply with the international new energy industry certification standards?
A3: Relying on the three major ISO system certifications and no chemical pollution, it can meet the compliance requirements of new energy material production in markets such as Europe, America, Japan and South Korea.
