Motion detection PIR sensor PANASONIC EKMC4605113K horizontally wide detection type with digital output
Motion detection PIR sensor PANASONIC EKMC4605113K horizontally wide detection type with digital output
Specifications
Operating Temperature :
-20℃~+55℃
Voltage - Supply :
3V~6V
Description :
Optical Motion Sensors RoHS
Mfr. Part # :
EKMC4605113K
Model Number :
EKMC4605113K
Description

PIR MOTION SENSOR "PaPIRs" VZ series

The EKMC460511 K is a horizontally wide detection type PIR Motion Sensor from the "PaPIRs" VZ series. It offers digital output with high sensitivity and a low current consumption of 170A. This sensor is designed to detect variations in infrared rays and is suitable for various applications requiring motion detection.

Product Attributes

  • Product Name: PIR MOTION SENSOR "PaPIRs"
  • Model Number: EKMC460511 K
  • Series: VZ series
  • Type: Horizontally wide detection type
  • Output: Digital output
  • Sensitivity: High Sensitivity
  • Lens Colors: White, Black, Pearl White

Technical Specifications

Specification Value Unit Notes

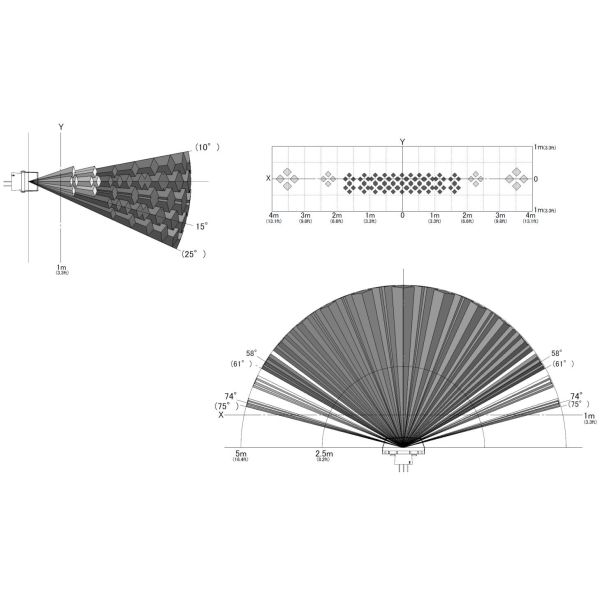

4-1 Detection Performance (Detection Area A)
Conditions for measuring Ambient temperature=25(77F), Operating voltage=5VDC, Temperature difference=2(3.6F)
Target Conditions Movement speed: 1.0m/s, Target concept is human body (Object size:Around 700250mm)
Detection Range Max 5 m Note1:Depending on the temperature difference between the target and the surroundings, detection range will change.
Detection Area Horizontal 122(61) Refer to the section 4-6.
Detection Area Vertical 35
Detection zones 88 +10 -25
4-2 Detection Performance (Detection Area B)
Conditions for measuring Ambient temperature=25(77F), Operating voltage=5VDC, Temperature difference=4(7.2F)
Target Conditions Movement speed: 1.0m/s, Target concept is human body (Object size:Around 700250mm)
Detection Range Max 5 m Note1:Depending on the temperature difference between the target and the surroundings, detection range will change.
Detection Area Horizontal 150(75) (Ditection Area A is not included.) Refer to the section 4-6.
Detection Area Vertical 20(10)
Detection zones 16
4-3 Maximum Rated Values
Power Supply Voltage -0.37.0 VDC
Usable Ambient Temperature -20+55 (-4+131F) Do not use in a freezing or condensation environment
Storage Temperature -20+70 (-4+158F)
4-4 Electrical Characteristics
Conditions for Measuring Ambient temperature=25(77F)
Operating Voltage (Vdd) 3.0 6.0 VDC
Electrical Current Consumption (Iw) - 170 300 A
Output Current (Iout) - - 100 A (Iout=0)
Output Voltage (Vout) Vdd-0.5 - VDC VoutVdd0.5
Circuit Stability Time (when voltage is applied) (Twu) - - 30 s

2411272154_PANASONIC-EKMC4605113K_C17692746.pdf
