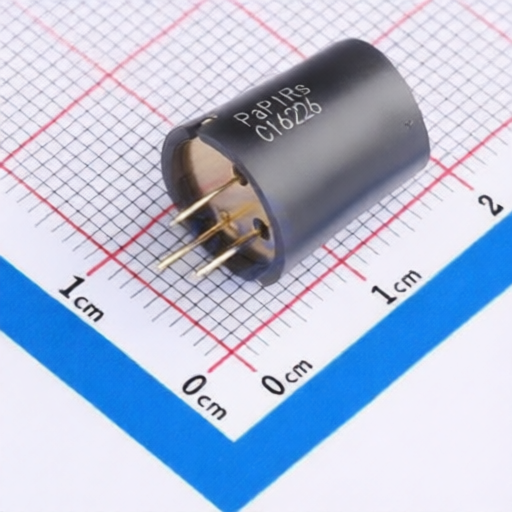

Motion Detection Sensor PANASONIC EKMC1601112 PIR Sensor with Wide Detection Area and Digital Output
Motion Detection Sensor PANASONIC EKMC1601112 PIR Sensor with Wide Detection Area and Digital Output
Specifications
Description :
Through Hole Optical Motion Sensors RoHS
Mfr. Part # :
EKMC1601112
Model Number :
EKMC1601112
Package :
Through Hole
Description

Product Overview

The PaPIRs PIR Motion Sensor (VZ series, Standard detection type) is a pyroelectric infrared sensor designed to detect variations in infrared rays. It offers a digital output and is suitable for various motion detection applications. Key features include a wide detection area, configurable detection range based on temperature difference, and specific electrical and timing characteristics.

Product Attributes

  • Product Name: PIR MOTION SENSOR PaPIRs
  • Model Number: EKMC160111 (VZ series Standard detection type)
  • Lens Color: White (EKMC1601111), Black (EKMC1601112), Pearl White (EKMC1601113)
  • General Tolerance: 0.5mm (0.020inch)

Technical Specifications

FeatureSpecificationConditionsUnitNotes
Detection RangeUp to 7mAmbient temperature=25(77), Operating voltage=5VDC, Temperature difference=8(14.4)mMovement speed: 1.0m/s, Target: human body (Object size: Around 700x250mm)
Detection RangeUp to 5mAmbient temperature=25(77), Operating voltage=5VDC, Temperature difference=4(7.2)mMovement speed: 1.0m/s, Target: human body (Object size: Around 700x250mm)
Detection AreaHorizontal: 94 (47)
Vertical: 82 (41)		Refer to section 4-5Detection zones: 64
Operating Voltage3.0 - 6.0Ambient temperature=25(77)VDC
Electrical Current Consumption170 - 300Ambient temperature=25(77), Iout=0A
Output Current-VoutVdd-0.5100A
Output VoltageVdd-0.5 - -Vdd=3.0-6.0VDCVDC
Circuit Stability Time-When voltage is applied30s (max.)
Maximum Rated Values: Power Supply Voltage-0.3 7.0VDC
Maximum Rated Values: Usable Ambient Temperature-20 +60(-4 +140)Do not use in freezing or condensation environment
Maximum Rated Values: Storage Temperature-20 +70(-4 +158)
