Capacitive 3D MEMS gyroscope single axis muRata SCR2100-D08-05 with integrated ASIC and digital SPI interface output
Capacitive 3D MEMS gyroscope single axis muRata SCR2100-D08-05 with integrated ASIC and digital SPI interface output
Specifications
Description :
SMD-24P Gyroscopes RoHS
Mfr. Part # :
SCR2100-D08-05
Model Number :
SCR2100-D08-05
Package :
SMD-24P
Description

Product Overview

The SCR2100-D08 is a high-performance single-axis gyroscope featuring a digital SPI interface. Built upon Murata's proven capacitive 3D-MEMS technology, it offers precise angular rate measurement with excellent stability across a wide temperature range and under demanding environmental conditions. The integrated mixed-signal ASIC provides flexible digital output via SPI and includes extensive self-diagnostic features for enhanced reliability. This component is designed for applications requiring high stability and robustness.

Product Attributes

  • Brand: Murata Electronics Oy
  • Model: SCR2100-D08
  • Technology: Capacitive 3D-MEMS
  • Package: RoHS compliant SOIC plastic package
  • Mounting: SMD mounting
  • Soldering: Suitable for lead-free soldering
  • Certifications: RoHS compliant, ELV directives compatible

Technical Specifications

ParameterConditionMinTypMaxUnits
General Specifications
Analog supply voltage (AVDD)3.03.33.6V
Analog supply current (I_AVDD)Temperature range -40C...+125C13.9mA
Digital supply voltage (DVDD)3.03.33.6V
Digital supply current (I_DVDD)Temperature range -40C...+125C3.3mA
Operating temperature range-40+125C
Rise/fall time: AVDD, DVDD, Vin_BOOST200ms
Gyroscope Performance Specifications
Measurement range (X-axis)-125125/s
Offset (zero rate output)0LSB
Offset error-11/s
Offset temperature drift-40C ... +125C-0.80.8/s
SPI Interface AC Characteristics
SPI Clock FrequencyMode 0, 120MHz
SPI Clock FrequencyMode 2, 310MHz
SPI Clock Jitter10%
SPI Data Setup Time10ns
SPI Data Hold Time5ns
SPI Clock to Output Delay10ns

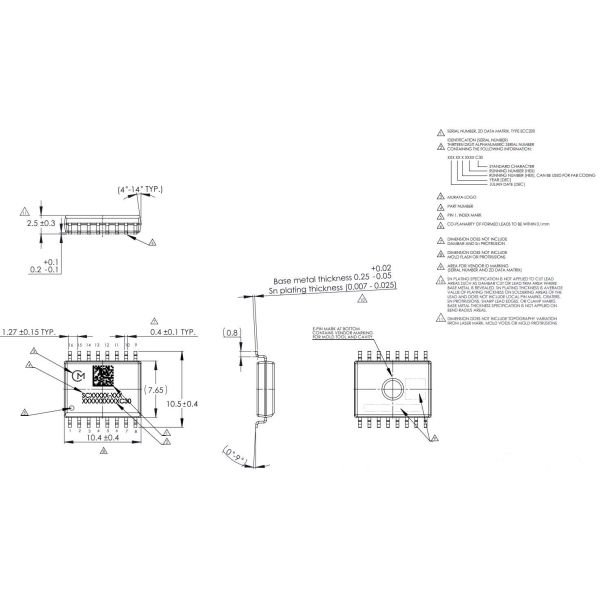

Package Characteristics
Dimensions (l w h)15.08.5x 4.3 mm
