3D Hall sensor with magnetic flux density sensing Infineon TLI493DW2BWA1XTMA1 and I2C interface
3D Hall sensor with magnetic flux density sensing Infineon TLI493DW2BWA1XTMA1 and I2C interface
3D Hall sensor with magnetic flux density sensing Infineon TLI493DW2BWA1XTMA1 and I2C interface
3D Hall sensor with magnetic flux density sensing Infineon TLI493DW2BWA1XTMA1 and I2C interface
3D Hall sensor with magnetic flux density sensing Infineon TLI493DW2BWA1XTMA1 and I2C interface
3D Hall sensor with magnetic flux density sensing Infineon TLI493DW2BWA1XTMA1 and I2C interface
Specifications
Current - Supply :
3.4mA
Magnetic Sensing Range(X,Y) :
±160mT
Interface :
I2C
Output bit :
12bit
Operating Temperature :
-40℃~+125℃
Voltage - Supply :
2.8V~3.5V
Magnetic Sensing Range(Z) :
±160mT
Description :
I2C WLCSP-5(0.9x1.1) Linear, Compass (ICs) RoHS
Mfr. Part # :
TLI493DW2BWA1XTMA1
Model Number :
TLI493DW2BWA1XTMA1
Package :

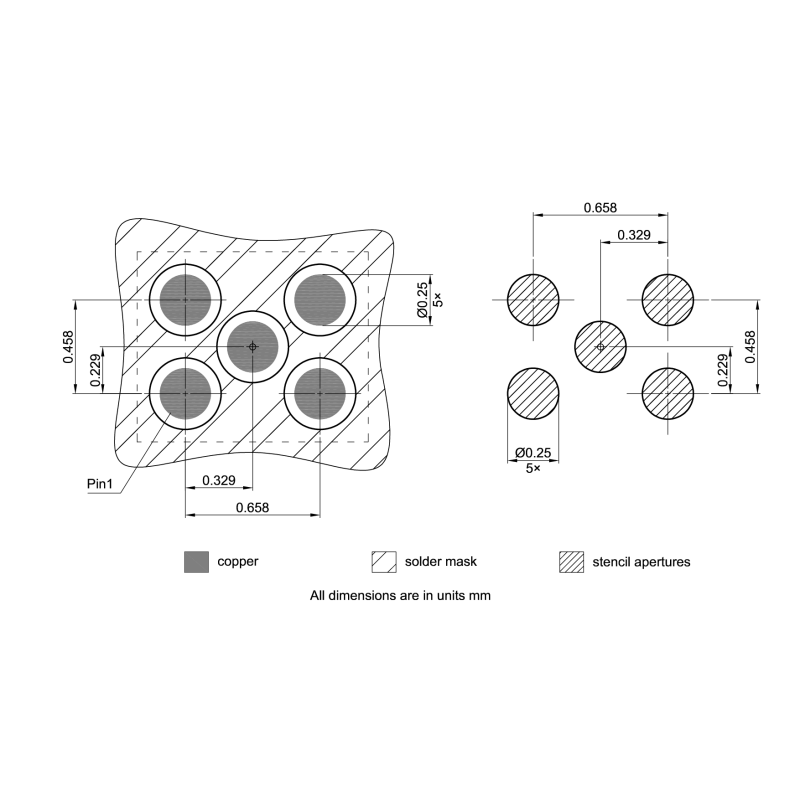

WLCSP-5(0.9x1.1)
Description

Product Overview

The TLI493D-W2BW is a low-power 3D Hall sensor featuring an I2C interface and a Wake-Up function. It offers 3D magnetic flux density sensing up to 160 mT with programmable sensitivity and a 12-bit data resolution for each measurement direction. The sensor supports variable update frequencies and power modes, enabling very low system power consumption. It is designed for a wide range of magnetic sensing applications, including multi-function knobs, joysticks, robotics, and mobile camera lens positioning.

Product Attributes

  • Brand: Infineon
  • Certifications: Pb-free (RoHS compliant), halogen free, Qualified for industrial applications according to JEDEC JESD47
  • Package: SG-WFWLB-5-2

Technical Specifications

FeatureSpecification
Magnetic Flux Density Sensingup to 160 mT (X, Y, Z)
Programmable Sensitivityup to typ. 30.8 LSB/mT

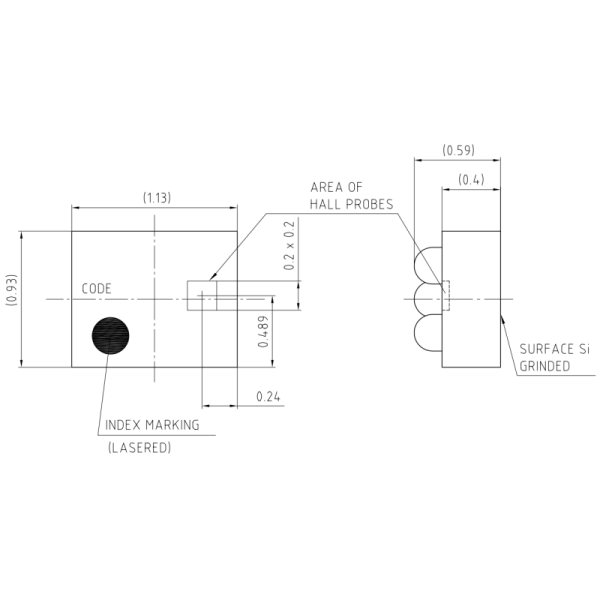

Form Factortyp. 1.13 mm * 0.93 mm * 0.59 mm
Power Consumption (Power Down Mode)7 nA (typ.)
Data Resolution12-bit (each direction), 10-bit (temperature)
Temperature RangeTj = -40C125C
Supply Voltage Range2.8 V3.5 V
InterfaceI2C
Wake-Up FunctionYes
Interrupt SignalYes
X-Y Angular Measurement ModeYes
