Specifications
Power(Watts) :
690mW
Resistance @ 25℃ :
250Ω
Description :
690mW 250Ω Through Hole PTC Thermistors RoHS
Mfr. Part # :
YGM1 C515
Model Number :
YGM1 C515
Package :
Through Hole
Description

YGM Motor Protectors PTC Thermistors

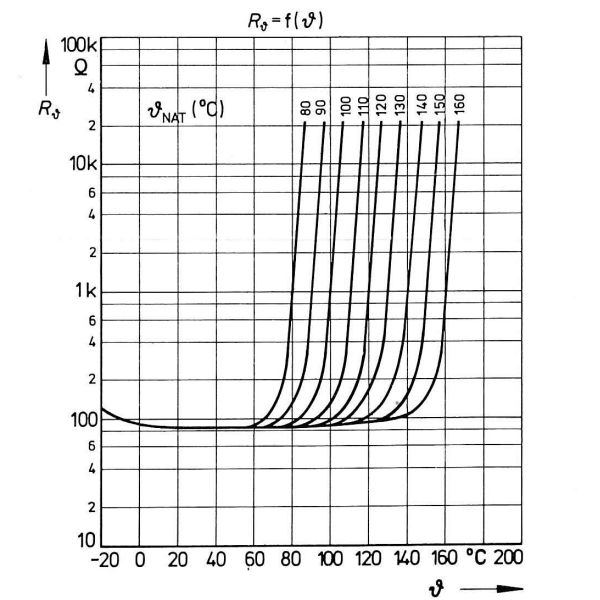

YGM Motor Protectors PTC (Positive Temperature Coefficient) Thermistors are designed to act as thermal protectors for electrical motors. They offer rapid response protection for electrical machines and are compact for easy assembly into windings. Available with or without an insulated sleeve and featuring flexible connecting leads, these PTC thermistors exhibit a non-linear resistance/temperature response. At a specified temperature, their resistance rapidly increases to a very high value, enabling effective fail-safe circuitry. When a given temperature (nominal response temperature NAT) is exceeded, the circuit can be switched off through a relay or amplifier. They are particularly suited for monitoring motor windings and in simple fail-safe circuits.

Product Attributes

  • Brand: YGM
  • Type: PTC Thermistors
  • Leads: Silvered copper
  • Insulation: Teflon (PTFE)
  • Origin: Canada (implied by contact information)

Technical Specifications

Model Type Response Temp. NAT (C) Tolerance (C) Colour Code Max. Allowable Operating Temp. (Tmax) (C) Max. Allowable Operating Voltage (Umax) (V per bead) Max. Allowable Power Dissipation (at +25C) (mW) Insulation Strength (kV) Conductor Cross-section (mm) Conductor Length (mm)
YGM1 Single Thermistor with shrunk-sleeve & epoxy seal 80 to 180 (in steps of 10, plus 145, 155) 5 See detailed list below 200 25 690 2.5 0.25 500 10
YGM3 Triple Thermistor with shrunk-sleeve & epoxy seal 80 to 180 (in steps of 10, plus 145, 155) 5 See detailed list below 500 - 180 - 180 - 500 10
CEF1 Mount-on Sensor in isolated brass/aluminium housing 80 to 180 (in steps of 10, plus 145, 155) 5 See detailed list below Special versions available
Response Temperature and Colour Codes:
YGM3 / CEF1 / YGM1 C508 80 5 white - yellow - yellow - white (YGM3)
white - white (CEF1)
white - white (YGM1)
YGM3 / CEF1 / YGM1 C509 90 5 green - yellow - yellow - green (YGM3)
green - green (CEF1)
green - green (YGM1)
YGM3 / CEF1 / YGM1 C510 100 5 red - yellow - yellow - red (YGM3)
red - red (CEF1)
red - red (YGM1)
YGM3 / CEF1 / YGM1 C511 110 5 brown - yellow - yellow - brown (YGM3)
brown - brown (CEF1)
brown - brown (YGM1)
YGM3 / CEF1 / YGM1 C512 120 5 grey - yellow - yellow - grey (YGM3)
grey - grey (CEF1)
grey - grey (YGM1)
YGM3 / CEF1 / YGM1 C513 130 5 blue - yellow - yellow - blue (YGM3)
blue - blue (CEF1)
blue - blue (YGM1)
YGM3 / CEF1 / YGM1 C514 140 5 white - yellow - yellow - blue (YGM3)
white - blue (CEF1)
white - blue (YGM1)
YGM3 / CEF1 / YGM1 C545 145 5 white - yellow - yellow - black (YGM3)
white - black (CEF1)
white - black (YGM1)
YGM3 / CEF1 / YGM1 C515 150 5 black - yellow - yellow - black (YGM3)
black - black (CEF1)
black - black (YGM1)
YGM3 / CEF1 / YGM1 C655 155 5 blue - yellow - yellow - black (YGM3)
blue - black (CEF1)
blue - black (YGM1)
YGM3 / CEF1 / YGM1 C516 160 5 blue - yellow - yellow - red (YGM3)
blue - red (CEF1)
blue - red (YGM1)
YGM3 / CEF1 / YGM1 C517 170 5 white - yellow - yellow - green (YGM3)
white - green (CEF1)
white - green (YGM1)
YGM3 / CEF1 / YGM1 C518 180 5 red - yellow - yellow - white (YGM3)
red - white (CEF1)
red - white (YGM1)
Standard Resistance Values:
Type Temperature (C) Resistance measuring Voltage (V) Resistance ()
Single PTC 20 to NAT 20 2.5 max./100 max. 250 max.
Single PTC NAT 5 2.5 max. 550 max.
Single PTC NAT 2.5 1.000
Single PTC NAT + 5 2.5 1.330 min.
Single PTC NAT + 15 7.5 4.000 min
Triple PTC 20 to NAT 20 7.5 max./300 max. 750 max.
Triple PTC NAT 5 7.5 max. 1.650 max.
Triple PTC NAT 7.5 4.000 min.
Triple PTC NAT + 15 7.5 4.000 min.*

Installation Tips

  • For PTC temperature sensors in electrical windings, thermistors must be inserted before impregnation.
  • Embed one sensor in each phase, ideally in the center of the hottest coil and on the outflow side of air movement.
  • Air inflow onto the sensor can interfere with heat transfer.
  • If using varnish/lacquer that is not chemically neutral, suitability tests must be conducted by the customer.
  • WARNING! Install the sensor parallel with the copper of the winding to maintain high-voltage resistance rating.

Quality Standards

  • PTC resistance values for motor protection are specified in DIN 44081/44082.
  • Resistance values below NAT 20 are not specified.
  • Cold resistance is not an indication of the PTCs condition; ideally between 40-200 ohms (can be 35-250 ohms).
  • Greatest resistance change occurs between 5 C either side of NAT (at least 15%/K).
  • Random testing is carried out according to DGQ P90/P10 (DIN 40080).
  • AQL values can be fixed by arrangement.

Ordering Information Example

Quantity Type Temp. code No. Resistance max.
1.000 YGM1 C 510 250 ohms
