IR Receiver Module VISHAY TSDP34156 Designed for Continuous Data Rates up to 7777 bps and Long Range
IR Receiver Module VISHAY TSDP34156 Designed for Continuous Data Rates up to 7777 bps and Long Range
Specifications
Frequency - Center :
57.6kHz
Transmission Distance :
21m
Viewing Angle :
±45°
Operating Temperature :
-25℃~+85℃
Current - Supply :
350uA
Pd - Power Dissipation :
10mW
Voltage - Supply :
2.5V~5.5V
Description :
57.6kHz 21m ±45° 350uA 2.5V~5.5V SIP-3-2.54mm Photo Detectors - Remote Receiver RoHS
Mfr. Part # :
TSDP34156
Model Number :
TSDP34156
Package :
SIP-3-2.54mm
Description

Product Overview

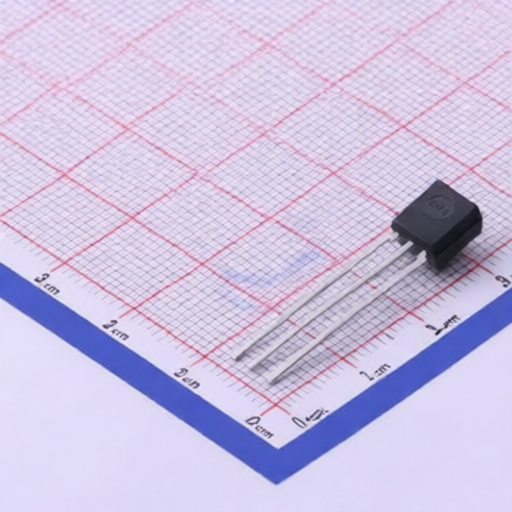

These Vishay Semiconductors TSDP341.. and TSDP343.. are miniaturized IR receiver modules designed for low-speed data transmission. They integrate a PIN diode and a preamplifier in a single package with an internal IR filter. These modules offer very low supply current, continuous data rates up to 7777 bps, and a range of up to 32 meters. Their internal filter is tuned for 38.4 kHz (4800 bps) or 57.6 kHz (9600 bps), providing immunity to ambient light and supply voltage noise. The demodulated output can be directly connected to a UART or microprocessor, making them suitable for various data transmission applications.

Product Attributes

  • Brand: Vishay Semiconductors
  • Material categorization: For definitions of compliance please see www.vishay.com/doc?99912

Technical Specifications

Part NumberCarrier FrequencyApplicationPinningDimensions (mm)
TSDP3413838.4 kHzData transmission1 = OUT, 2 = GND, 3 = VS6.0 W x 6.95 H x 5.6 D
TSDP3433838.4 kHzData transmission1 = OUT, 2 = GND, 3 = VS6.0 W x 6.95 H x 5.6 D
TSDP3415657.6 kHzData transmission1 = OUT, 2 = GND, 3 = VS6.0 W x 6.95 H x 5.6 D
TSDP3435657.6 kHzData transmission1 = OUT, 2 = GND, 3 = VS6.0 W x 6.95 H x 5.6 D
ParameterTest ConditionSymbolMin.Typ.Max.Unit
Supply currentEv = 0, VS = 3.3 VISD0.270.350.45mA
Supply currentEv = 40 klx, sunlightISH-0.45-mA
Supply voltageVS2.5-5.5V
Transmission distanceEv = 0, test signal see Fig. 1, IR diode TSAL6200, IF = 50 mAd-21-m
Output voltage lowIOSL = 0.5 mA, Ee = 0.7 mW/m2, test signal see Fig. 1VOSL--100mV
Minimum irradiancePulse width tolerance: tpi - 1/f0 < tpo < tpi + 4/f0, test signal see Fig. 1Ee min.-0.150.30mW/m2
Maximum irradiancetpi - 1/f0 < tpo < tpi + 4/f0, test signal see Fig. 1Ee max.30--W/m2
Maximum pulse widthEe min. > 10 mW/m2, tpi = 8/f0tpo max.--11.5/f0s
DirectivityAngle of half transmission distance1/2- 45-deg
Output Signal Delay1) 3/f0 < td < 9/f0td----
Output Pulse Width2) tpi - 1/f0 < tpo < tpi + 4/f0tpo----

2410121814_VISHAY-TSDP34156_C511551.pdf
