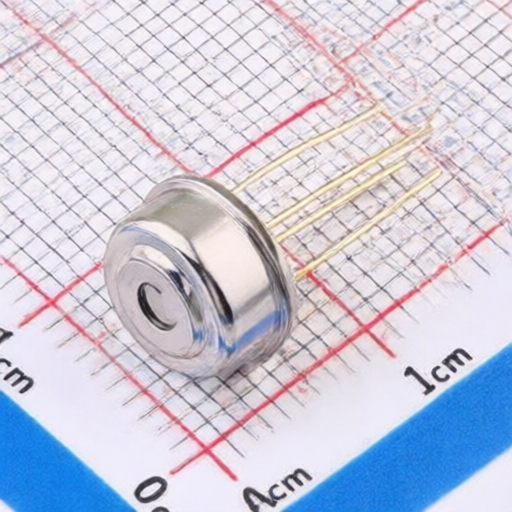

MEMS thermopile temperature sensor MFrontier MTP10-A6F8 designed for precise and fast response temperature measurement
MEMS thermopile temperature sensor MFrontier MTP10-A6F8 designed for precise and fast response temperature measurement
Specifications
Temperature Range :
-30℃~+100℃
Description :
-30℃~+100℃ TO-39 Thermocouples, Temperature Probes RoHS
Mfr. Part # :
MTP10-A6F8
Model Number :
MTP10-A6F8
Package :
TO-39
Description

Product Overview

The MTP10-A6F8 is a MEMS infrared thermopile temperature sensor featuring an integrated filter and a high-precision NTC thermistor. It is characterized by its small size, fast response speed, high sensitivity, and high accuracy, making it widely applicable in various non-contact temperature measurement scenarios. This sensor is suitable for applications such as thermometers, continuous monitoring of production and manufacturing temperatures, and industrial temperature transmitters.

Product Attributes

  • Brand: (MemsFrontier)
  • Origin: Shenzhen, China

Technical Specifications

ParameterIndexUnitCondition
Chip Area1.8*1.8mm2
Sensing Area1.35*1.35mm2
Field of View6250% Max Signal
Thermopile Resistance4310%kAmbient Temp 25
Noise Voltage272nV/Hz1/2Ambient Temp 25
Noise Equivalent Power0.62nW/Hz1/2500K, 1Hz
Responsivity43V/W500K, 5.5m (Long Pass)
Resistance Temperature Coefficient0.1%/25/50
Time Constant32ms
Detectivity6.8E+07cmHz1/2/W500K, 1Hz
NTC Resistance1003%k25
NTC B Value39501%K25/50
Operating Temperature-30~100
Storage Temperature-40~125
Center Wavelength (Filter)8~14mBandpass
Average Transmittance (Filter)75%8~14m
Average Cutoff Rate (Filter)1%<7.5m
Average Cutoff Rate (Filter)1%15~21m

Electrical Connection

Pin1234
DefinitionThermopile+NTC+Thermopile-GND
