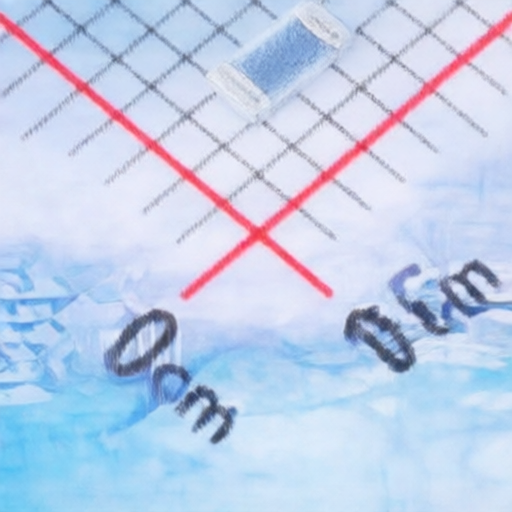

SMD 1206 Pt Temperature Sensors YAGEO 32207595 designed for PCB assembly and temperature compensation
SMD 1206 Pt Temperature Sensors YAGEO 32207595 designed for PCB assembly and temperature compensation
Specifications
Temperature Range :
-50℃~+130℃
Description :
-50℃~+130℃ 1206 RTD (Resistance Temperature Detector) RoHS
Mfr. Part # :
32207595
Model Number :
32207595
Package :
1206
Description

Product Overview

SMD 1206 Pt Temperature Sensors, compliant with DIN EN 60751, are designed for automated assembly on printed circuit boards. These precision, accurate, and interchangeable Pt RTD elements offer an ideal solution for board-mounted temperature sensing, board protection, and temperature compensation. Applications span HVAC, automotive, e-mobility, and medical and industrial equipment.

Product Attributes

  • Brand: YAGEO Nexensos
  • Origin: Germany
  • Certifications: DIN EN 60751
  • Packaging: Blister reel
  • Connection Technology: Face up mounting; reflow soldering or wave soldering
  • End termination: galvanic tin plated with Ni barrier layer
  • Storage Life: At least 9 months (after manufacture)
  • California Proposition 65 Warning: Yes (Nickel)

Technical Specifications

TypeNominal Resistance R []Tolerance ClassOrder NumberTemperature Range (C)TCR (ppm/K)Response Time (Water v=0.4m/s)Response Time (Air v=2m/s)Measuring CurrentLong-Term Stability (Drift at 0C after 1000h @ max temp)Self-Heating (K/mW at 0C)Dimensions (mm) L x W x H
Pt100100F 0.3 (B)32207590-50 to +130 (+150*)3850t. = 0.15 s, t. = 0.3 st. = 3.5 s, t. = 10 s0.3 to 1 mA Tolerance Value0.43.2+0.2-0.3 x 1.60.2 x 0.60.1
Pt100100F 0.6 (2B)32207589-50 to +130 (+150*)3850t. = 0.15 s, t. = 0.3 st. = 3.5 s, t. = 10 s0.3 to 1 mA Tolerance Value0.43.2+0.2-0.3 x 1.60.2 x 0.60.1
Pt10001000F 0.3 (B)32207595-50 to +130 (+150*)3850t. = 0.15 s, t. = 0.3 st. = 3.5 s, t. = 10 s0.1 to 0.3 mA Tolerance Value0.43.2+0.2-0.3 x 1.60.2 x 0.60.1
Pt10001000F 0.6 (2B)32207594-50 to +130 (+150*)3850t. = 0.15 s, t. = 0.15 s, t. = 0.3 st. = 3.5 s, t. = 10 s0.1 to 0.3 mA Tolerance Value0.43.2+0.2-0.3 x 1.60.2 x 0.60.1

*With the use of expansion-matched circuit board materials temperatures up to +150 C are possible.


2411121011_YAGEO-32207595_C17496560.pdf
