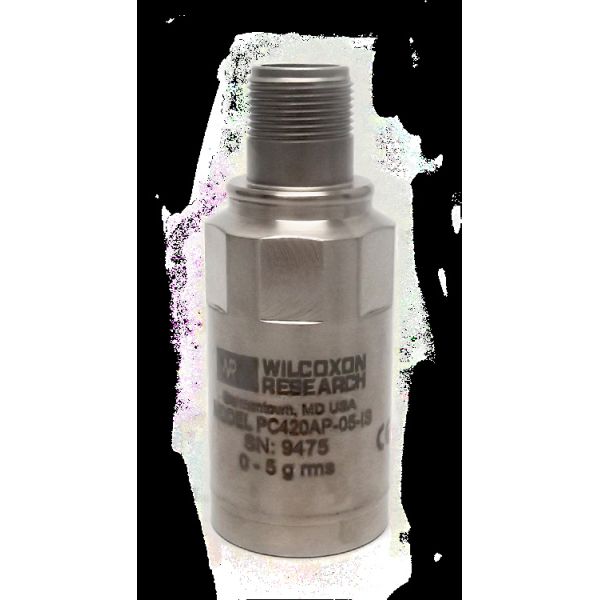

intrinsically safe sensor Amphenol PC420AR-20-IS for hazardous environment vibration monitoring applications
intrinsically safe sensor Amphenol PC420AR-20-IS for hazardous environment vibration monitoring applications
Specifications
Description :
Vibration Sensors RoHS
Mfr. Part # :
PC420AR-20-IS
Model Number :
PC420AR-20-IS
Description

Product Overview

The PC420A-IS series intrinsically safe 4-20 mA loop-powered sensors are designed for reliable operation in hazardous environments. These sensors offer true RMS or peak output and are easily integrated into existing process control systems. Manufactured in an ISO 9001 approved facility, they are certified intrinsically safe for use in Class I, Div 1 Groups A, B, C, D T3C and II 1 G Ex ia IIC T4 Ga hazardous locations. They are suitable for applications requiring accurate vibration monitoring in potentially explosive atmospheres.

Product Attributes

  • Brand: Wilcoxon Sensing Technologies (An Amphenol Company)
  • Origin: USA
  • Certifications: Class I, Div 1 Groups A, B, C, D T3C (Ta = 85C max); II 1 G Ex ia IIC T4 Ga (-40C Ta +85C)
  • Intrinsically Safe Parameters: 14 V < Uo < 30V, 20 mA < Io < 106 mA (linear supply only), Po < 0.75 W, Co < Ci + Ccable, Lo < Li + Lcable
  • Maximum Cable Length: 100 ft (31 m)
  • Ccable: 6 nF for 100 ft
  • Case Material: 316L stainless steel
  • Sealing: Hermetic
  • Sensing Element Design: PZT, shear
  • Mounting: 1/4-28 tapped hole (metric mounting available)
  • Output Connector: 2 pin, MIL-C-5015 style
  • Mating Connector: R6 type
  • Recommended Cabling: J9T2A
  • Accessories Supplied: SF6 mounting stud, calibration data (level 2)

Technical Specifications

Specification Details
Model Selection Guide Output Type: x (4-20 mA output type)
Full Scale: yy (full scale)
Output Options: R = acceleration, RMS; P = acceleration, equivalent peak; TP = acceleration, true peak
Full Scale Options: 05 = 5 g (49 m/sec); 10 = 10 g (98 m/sec); 20 = 20 g (196 m/sec)
Output, 4-20 mA Full scale, 20 mA, 5%
Frequency Response 10% 3 dB: 10 Hz - 1.0 kHz; 4.0 Hz - 2.0 kHz
Repeatability 2%
Transverse Sensitivity, max 5%
Power Requirements, 2-wire loop power Voltage at sensor terminals: 12 - 30 VDC
Loop Resistance (at 24 VDC, max) 600
Turn on Time, 4-20 mA loop <30 sec
Grounding Case isolated, internally shielded
Operating Temperature Range 40 to +85 C
Vibration Limit 250 g peak
Shock Limit 2,500 g peak
Weight 162 grams
Output Connector Pinout Pin A: loop positive (+)
Pin B: loop negative ()
Ground: shell
Loop Resistance Calculation RL = (VDC power 10 V) / 0.020 A
RL (max resistance) & RL (minimum wattage capability) 20 VDC: 400 , 1/4 watt
24 VDC: 600 , 1/2 watt
26 VDC: 700 , 1/2 watt

2412111045_Amphenol-PC420AR-20-IS_C3319061.pdf
