MEMS Based 3DOF Orientation Tracking Sensor THALES ISC-IC400-000E for Virtual Reality Applications
MEMS Based 3DOF Orientation Tracking Sensor THALES ISC-IC400-000E for Virtual Reality Applications
MEMS Based 3DOF Orientation Tracking Sensor THALES ISC-IC400-000E for Virtual Reality Applications
MEMS Based 3DOF Orientation Tracking Sensor THALES ISC-IC400-000E for Virtual Reality Applications
Specifications
Description :
DOF-3 Accelerometers RoHS
Mfr. Part # :
ISC-IC400-000E
Model Number :
ISC-IC400-000E
Package :
DOF-3
Description

Product Overview

The Thales InterSense InertiaCube4 is the industry's leading 3-DOF MEMS-based inertial orientation tracking sensor. Utilizing advanced Kalman filtering algorithms, it provides full 360 sourceless orientation tracking. Its portable package delivers high-end performance and accuracy, making it ideal for a range of applications including simulation & training, virtual & augmented reality, motion capture, and human movement analysis.

Product Attributes

  • Brand: Thales InterSense
  • Origin: USA (implied by patent information and address)
  • Material: MEMS-based (sensor technology)

Technical Specifications

Feature Specification
Degrees of Freedom 3 (Yaw, Pitch and Roll)
Angular Range Full 360 - All Axes
Maximum Angular Rate* 2000 per second
Minimum Angular Rate* 0 per second
Accuracy (RMS)* 1 in yaw, 0.25 in pitch & roll at 25C
Angular Resolution* 0.01 RMS
Max Update Rate 200 Hz
Minimum Latency 2 ms for RS-232 (PC host & OS dependent)
Prediction up to 50 milliseconds
Serial Rate 115.2 kbaud
Interfaces USB or RS-232 Serial

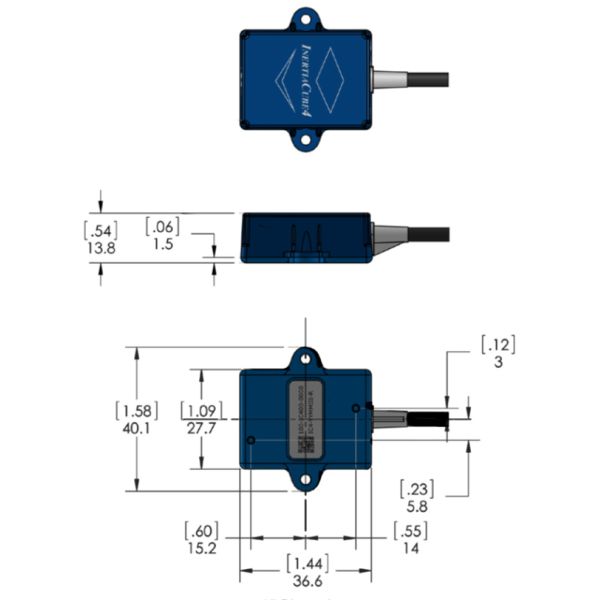

Size 1.44 in. x 1.09 in. x 0.55 in. (36.6 mm x 27.7 mm x 13.8 mm)
Weight 0.39 ounces (11 grams)
Cable Length USB 6 ft. (2 m), RS-232 15 ft. (4.572 m)
Power 6 VDC, 40 mA
Operating Temp. Range 0 to 50 C
O/S Compatibility Windows 8, Windows 7, Windows XP, Linux, Mac OSX
Software Features Compass Calibration Tool, Magnetic Environment Calibration Tool

* measurement with perceptual enhancement set to 0
Specifications are subject to change without notice.
