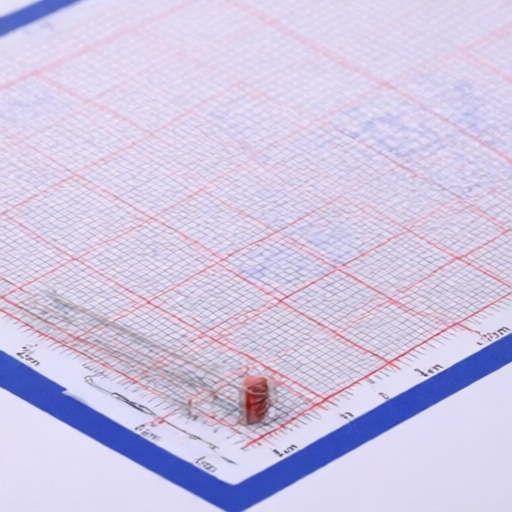

Light Sensitive Semiconductor Photoresistor Senba Sensing Tech GL5539 for Automatic Exposure Control
Light Sensitive Semiconductor Photoresistor Senba Sensing Tech GL5539 for Automatic Exposure Control
Specifications
γ Value :
0.8
Voltage - Max :
150V
Wavelength - Peak :
540nm
Cell Resistance @ Illuminance :
50kΩ~100kΩ
Dark Resistance :
10MΩ
Description :
540nm 50kΩ~100kΩ 10MΩ Through Hole,P=3mm Photoresistors RoHS
Mfr. Part # :
GL5539
Model Number :
GL5539
Package :
Through Hole,P=3mm
Description

Product Overview

The Senba () LDR Sensor, also known as a photoresistor, is a semiconductor device whose conductivity changes with light intensity. This characteristic allows it to be manufactured in various shapes and light-sensitive areas. These sensors are widely used in applications such as toys, lighting, and cameras. Key features include good reliability, small size, high sensitivity, fast response speed, and good spectral characteristics, making them suitable for automatic exposure control in cameras, photoelectric control, indoor light control, alarms, industrial control, photocontrolled switches, photocontrolled lights, and electronic toys.

Product Attributes

  • Brand: Senba ()
  • Product Type: LDR Sensor / Photoresistor
  • Material: Semiconductor
  • Encapsulation: Epoxy Resin

Technical Specifications

Series Model Max Voltage (VDC) Max Power (mW) Ambient Temp (C) Spectral Peak (nm) Dark Resistance (M) Response Time (ms) - Rise Response Time (ms) - Fall Illuminance Characteristic Figure
5 Series GL5516 150 90 -30~+70 540 0.5 30 30 2
GL5528 150 100 -30~+70 540 0.6 20 30 3
GL5537-1 150 100 -30~+70 540 0.6 20 30 4
GL5537-2 150 100 -30~+70 540 0.7 20 30 4
GL5539 150 100 -30~+70 540 0.8 20 30 6
GL5549 150 100 -30~+70 540 0.9 20 30 6
56 Series GL5606 150 90 -30~+70 560 0.5 30 30 2
GL5616 150 100 -30~+70 560 0.6 30 30 2
GL5626 150 100 -30~+70 560 0.6 20 30 3
GL5637-1 150 100 -30~+70 560 0.7 20 30 4
GL5637-2 150 100 -30~+70 560 0.8 20 30 4
GL5539 150 100 -30~+70 560 0.9 20 30 5
GL5649 150 100 -30~+70 560 0.95 20 30 6

Packaging & Precautions

  • Packaging uses environmentally friendly materials. Small packages contain 100 pieces, and large packages contain 1000 pieces.
  • Avoid storing photoresistors in humid or high-temperature environments.
  • Minimize soldering time.
  • Ensure the lead welding position is at least 4mm away from the ceramic base.

2304140030_Senba-Sensing-Tech-GL5539_C125630.pdf
