Digital output force sensor Honeywell FMAMSDXX005WCSC3 with ASIC based calibration and mechanical interface
Digital output force sensor Honeywell FMAMSDXX005WCSC3 with ASIC based calibration and mechanical interface
Specifications
Voltage - Supply :
3V~3.6V
Operating Temperature :
-40℃~+85℃
Description :
Force Sensors, Load Cells RoHS
Mfr. Part # :
FMAMSDXX005WCSC3
Model Number :
FMAMSDXX005WCSC3
Description

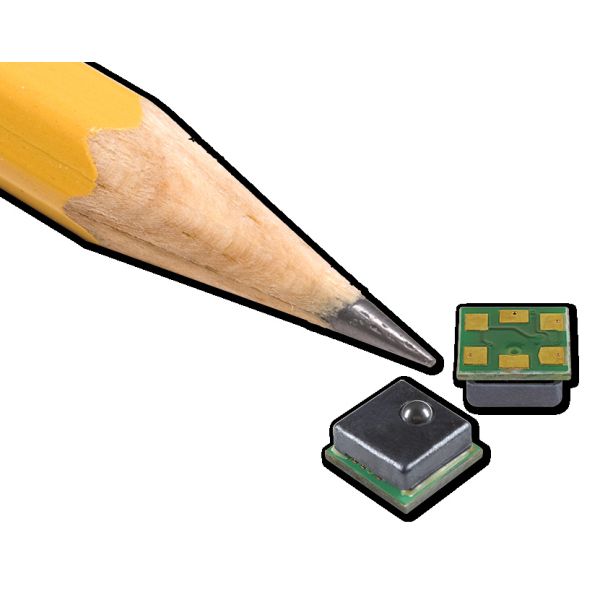

FMA SERIES MicroForce Sensors

The FMA Series are piezoresistive-based force sensors offering a digital output for reading force over the specified full scale force span and temperature range. They are fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and nonlinearity using an on-board Application Specific Integrated Circuit (ASIC). Direct mechanical coupling allows for easy interface with the sensor, coupling with tubing, membrane or a plunger, providing repeatable performance and a reliable mechanical interface to the application. These products offer a more stable output which is directly proportional to the force applied to the mechanically-coupled sphere. The FMA Series is available with pocket tape and reel packaging. They are designed to meet the customers need for a compensated, amplified force sensor which provides digital outputs, a variety of force sensing ranges, a small, cost-effective format, and enhanced durability and accuracy. The flexible design provides multiple standard configurations over a wide operating temperature range.

Product Attributes

  • Brand: Honeywell
  • Origin: Designed and manufactured according to ISO 9001 standards
  • Certifications: REACH and RoHS compliant
  • Material: Covers: liquid crystal polymer; Sphere contact element: stainless steel 440C; Substrate: FR4; Adhesives: epoxy, silicone; Electronic components: silicon, glass, solder
  • Packaging: Pocket tape and reel

Technical Specifications

CharacteristicMinimumTypicalMaximumUnitNotes
Supply voltage (Vsupply)3.03.3 / 5.03.6 / 5.25Vdc3.3 Vdc or 5.0 Vdc based on catalog listing
Supply current (3.3 Vdc)-2.83.9mA-
Supply current (5.0 Vdc)-3.94.6mA-
Power input-20-mW-
Operating temperature range-40 [-40]-85 [185]C [F]Sensor produces output proportional to force
Compensated temperature range5 [41]-50 [122]C [F]Sensor produces output within specified performance limits
Storage temperature range-40 [-40]-85 [185]C [F]-
Startup time (power up to data ready)--3ms-
Response time-0.420.84ms-
SPI/I2C voltage level (low)-80-Vsupply-
SPI/I2C voltage level (high)-20-Vsupply-
Pull up on SDA/MISO, SCL/SCLK, SS1--kOhm-
Accuracy-2-%FSSTypical, includes linearity, hysteresis, non-repeatability
Total Error Band (BFSL)--8%FSSOver compensated temperature range at 5.0 V from 20%FSS to 80%FSS
Output resolution12--bits-
Long term stability-1.6-%FSS-
Overforce limit--3X force range-Repeated exposure may cause permanent damage
Humidity0% to 95% RH, non-condensing----
Vibration-20.71 Gms--MIL-STD-202, Method 214, Condition 1F
Shock-50 G--MIL-STD-202, Method 213, Condition A
Life1 million--full scale force cycles minimumMay vary depending on application

Available Configurations (Examples)

Catalog ListingForce RangeOutputDescription
FMAMSDXX005WCSC35 NSPIFMA Series, compensated/amplified, mechanically coupled, sphere contact, diagnostics, 5 N, compression, SPI, 20%-80% transfer, 3.3 V 10%
FMAMSDXX005WC2C35 NI2C, address 0x28FMA Series, compensated/amplified, mechanically coupled, sphere contact, diagnostics, 5 N, compression, I2C, address 0x28, 20%-80% transfer, 3.3 V 10%
FMAMSDXX015WCSC315 NSPIFMA Series, compensated/amplified, mechanically coupled, sphere contact, diagnostics, 15 N, compression, SPI, 20%-80% transfer, 3.3 V 10%
FMAMSDXX015WC2C315 NI2C, address 0x28FMA Series, compensated/amplified, mechanically coupled, sphere contact, diagnostics, 15 N, compression, I2C, address 0x28, 20%-80% transfer, 3.3 V 10%
FMAMSDXX025WCSC325 NSPIFMA Series, compensated/amplified, mechanically coupled, sphere contact, diagnostics, 25 N, compression, SPI, 20%-80% transfer, 3.3 V 10%
FMAMSDXX025WC2C325 NI2C, address 0x28FMA Series, compensated/amplified, mechanically coupled, sphere contact, diagnostics, 25 N, compression, I2C, address 0x28, 20%-80% transfer, 3.3 V 10%

Potential Applications

Medical

  • Infusion pumps
  • Ambulatory pumps
  • Enteral feeding pumps
  • Kidney dialysis machines

Industrial

  • Load and compression sensing
  • Touch panels
  • Switch replacement
  • Robotic equipment
  • Weight measurement
  • Force/grip measuring equipment
