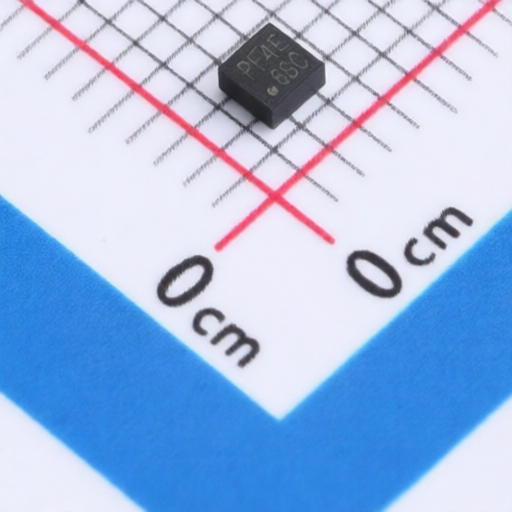

Compact 3 axis accelerometer MEMSIC MC3419 with advanced motion sensing algorithms and consumption
Compact 3 axis accelerometer MEMSIC MC3419 with advanced motion sensing algorithms and consumption
Specifications
Accelerometer Sensing Axis :
X,Y,Z
Output Bits :
16bit
Standby Current :
4uA
Acceleration Measurement Range (MAX) :
±16g
Description :
LGA-12(2x2) Accelerometers RoHS
Mfr. Part # :
MC3419
Model Number :
MC3419
Package :
LGA-12(2x2)
Description

Product Overview

The MEMSIC MC3419 is a compact, integrated digital output 3-axis accelerometer designed for motion sensing in cell phones and consumer electronics. It features a dedicated motion block for advanced detection algorithms like "any motion," shake, tilt/flip, and tilt 35 position. Its monolithic design integrates MEMS and electronics on a single chip, offering low power consumption and small size. The device supports flexible sampling rates from 0.5 to 1000 samples/second and communication via SPI (up to 10 MHz) or I2C (up to 1 MHz), with support for polling or interrupt-driven status retrieval.

Product Attributes

  • Brand: MEMSIC
  • Model: MC3419
  • Part Number: APS-048-0071 v1.1
  • Formal Release Date: 2020/07/13
  • Technology: 3D silicon MEMS
  • Compliance: RoHS compliant

Technical Specifications

FeatureSpecification
Axis3-Axis
Output Data Rate0.5 Hz to 1000 Hz
Standby Current4 A (typical)
Active CurrentLow typical
Communication InterfacesSPI (up to 10 MHz), I2C (up to 1 MHz)
Package2x2x0.92 mm, 12-pin LGA
Resolution16-bit (single sample), 16-bit (with FIFO)
Programmable Ranges2g, 4g, 8g, 12g, 16g
Motion Detection Features"Any Motion" detection, Shake detection, Tilt/Flip detection, Tilt 35 position detection
FIFO BufferSupported
InterruptsConfigurable for various events (ACQ, TILT/FLIP, ANYM, SHAKE, TILT_35, FIFO status)

2410121915_MEMSIC-MC3419_C3248220.pdf
