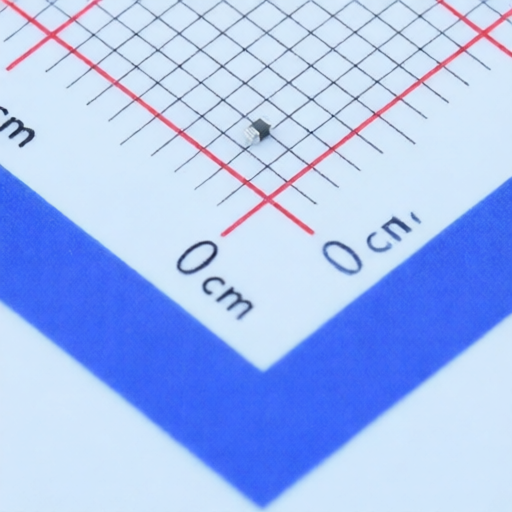

Negative Temperature Coefficient Thermistor muRata NCP15XW222J03RC with Long Term Aging Stability and UL Certification
Negative Temperature Coefficient Thermistor muRata NCP15XW222J03RC with Long Term Aging Stability and UL Certification
Specifications
Resistance @ 25℃ :
2.2kΩ
Power(Watts) :
100mW
Operating Temperature :
-40℃~+125℃
B Constant (25℃/100℃) :
3998K
Steady State Current (Max) :
670uA
B Constant (25℃/85℃) :
3987K
B Constant (25℃/75℃) :
-
B Constant (25℃/50℃) :
3950K
B Constant Tolerance :
±3%
Description :
2.2kΩ 100mW 670uA 3950K ±3% 0402 NTC Thermistors RoHS
Mfr. Part # :
NCP15XW222J03RC
Model Number :
NCP15XW222J03RC
Package :
0402
Description

Negative Temperature Coefficient (NTC) Thermistors

This catalog details Negative Temperature Coefficient (NTC) thermistors, designed for temperature sensing and compensation, as well as inrush current suppression. These components feature excellent solderability, high stability in application environments, and long-term aging stability. They are suitable for reflow soldering and are available in various sizes and configurations, including chip, leaded, and radial types.

Product Attributes

  • Brand: Murata
  • Origin: Downloaded from Murata Manufacturing Co., Ltd. website
  • Certifications: NCP series are UL/cUL certified products (UL1434, File No. E137188)

Technical Specifications

Product Type Series Part Number Example Resistance (25C) () B Constant (25-50C) (K) Tolerance Size (LxW) Lead Type Lead Spacing Lead Shape Packaging Lead Wire Material Lead Wire Diameter Total Length (mm) Temperature Characteristics
Chip Thermistor NC NCP03XM102p05RL 1.0k 3500 1% 0.60x0.30mm (0201) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3500-3549K
Chip Thermistor NC NCP03XM152p05RL 1.5k 3500 1% 0.60x0.30mm (0201) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3500-3549K
Chip Thermistor NC NCP03XM332p05RL 3.3k 3500 1% 0.60x0.30mm (0201) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3500-3549K
Chip Thermistor NC NCP03WF333p05RL 33k 4250 1% 0.60x0.30mm (0201) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 4250-4299K
Chip Thermistor NC NCP03WB473p05RL 47k 4050 3% 0.60x0.30mm (0201) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 4050-4099K
Chip Thermistor NC NCP03WF104F05RL 100k 4250 1% 0.60x0.30mm (0201) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 4250-4299K
Chip Thermistor NC NCP03WL104p05RL 100k 4485 1% 0.60x0.30mm (0201) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 4450-4499K
Chip Thermistor NC NCP03WL154p05RL 150k 4485 1% 0.60x0.30mm (0201) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 4450-4499K
Chip Thermistor NC NCP03WL224p05RL 220k 4485 1% 0.60x0.30mm (0201) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 4450-4499K
Chip Thermistor NC NCP15XC220p03RC 22 3100 3% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3100-3149K
Chip Thermistor NC NCP15XC680p03RC 680 3100 3% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3100-3149K
Chip Thermistor NC NCP15XF151p03RC 150 3250 3% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3250-3299K
Chip Thermistor NC NCP15XM331p03RC 330 3500 3% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3500-3549K
Chip Thermistor NC NCP15XQ102p03RC 1.0k 3650 2% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3650-3699K
Chip Thermistor NC NCP15XW332p03RC 3.3k 3950 3% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3950-3999K
Chip Thermistor NC NCP15XW472p03RC 4.7k 3950 3% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3950-3999K
Chip Thermistor NC NCP15XW682p03RC 6.8k 3950 3% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3950-3999K
Chip Thermistor NC NCP15XH103D03RC 10k 3380 0.5% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3350-3399K
Chip Thermistor NC NCP15XH103F03RC 10k 3380 1% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3350-3399K
Chip Thermistor NC NCP15XV103p03RC 10k 3900 3% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3900-3949K
Chip Thermistor NC NCP15XW153p03RC 15k 3950 3% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3950-3999K
Chip Thermistor NC NCP15XW223p03RC 22k 3950 3% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 3950-3999K
Chip Thermistor NC NCP15WL223p03RC 22k 4485 1% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 4450-4499K
Chip Thermistor NC NCP15WB333p03RC 33k 4050 3% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 4050-4099K
Chip Thermistor NC NCP15WL333p03RC 33k 4485 1% 1.0x0.5mm (0402) Chip N/A N/A Tape packaging (4mm pitch) N/A N/A N/A 4450-4499K
Leaded Thermistor NXF NXF103Te205RL 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Twisted leads Bulk Copper wire with polyurethane coating 0.3mm 25mm 3350-3399K
Leaded Thermistor NXF NXF103Te205RL 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Twisted leads Bulk Copper wire with polyurethane coating 0.3mm 25mm 3350-3399K
Leaded Thermistor NXF NXF103Te205RL 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Twisted leads Bulk Copper wire with polyurethane coating 0.3mm 25mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Leaded Thermistor NXR NXR103F040 10k 3380 1% 1.00x0.50mm (0402) Leaded 2.5mm or 5.0mm Radial leads Bulk Tin-plated copper clad iron wire 0.4mm 40mm 3350-3399K
Inrush Current Suppression Thermistor NT NT5R0J102 3 N/A 15% N/A Leaded N/A N/A Bulk N/A N/A N/A N/A
Inrush Current Suppression Thermistor NT NT100p102 10 N/A 15% N/A Leaded N/A N/A Bulk N/A N/A N/A

Applications

  • Temperature compensation for transistors, ICs, and crystal oscillators in mobile communication equipment.
  • Temperature sensing for rechargeable batteries.
  • Inrush current suppression.

Basic Characteristics

  • Zero-power resistance at a specified ambient temperature.
  • Rated power indicates the electric power required to raise the thermistor temperature to a specified temperature when the ambient temperature is 25C.
  • Allowable operating current is the current that keeps the thermistor's self-heating temperature rise below 1C.
  • Thermal diffusion constant indicates the power required to raise the thermistor temperature by 1C due to self-heating.
  • Thermal time constant is the time required for the thermistor temperature to change by 63.2% of the total temperature change when the ambient temperature changes from T0 to T1.
  • B constant is calculated between two specified ambient temperatures.
