Specifications
Resistance @ 25℃ :
100kΩ
Operating Temperature :
-55℃~+125℃
B Constant (25℃/100℃) :
-
B Constant (25℃/85℃) :
-
B Constant (25℃/75℃) :
-
B Constant Tolerance :
±2%
B Constant (25℃/50℃) :
4150K
Description :
100kΩ ±2% 4150K NTC Thermistors RoHS
Mfr. Part # :
CWF3AA104G4150
Model Number :
CWF3AA104G4150
Description

Product Overview

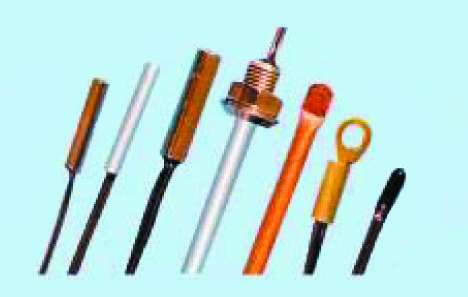

The CWF series NTC Thermistor Probes from Cantherm are precision sensors designed for accurate temperature measurement and control across a wide range of applications. These probes feature a high-reliability NTC thermistor insulated with heat-conductive, water-resistant materials and potted into various probe bodies for diverse installation needs. They offer excellent tolerance, interchangeability, long-term stability, and fast response times. Available in five basic enclosure styles, including ethoxyline dipped, metal housing, plastic body, sheet metal attachment fixtures, and custom probes, the CWF series is suitable for demanding environments and custom sensing requirements.

Product Attributes

  • Brand: CWF
  • Manufacturer: Cantherm (Division of Microtherm)
  • Origin: Canada
  • Lead Material: PVC
  • Housing Materials: Ethoxyline resin, Aluminum, Copper, Stainless Steel, Plastic, Sheet Metal

Technical Specifications

General Characteristics:

Specification Value
Dissipation Coefficient (mW/C) 2.2
Thermal Time Constant (S) 70
Operating Temperature Range (C) -55 to 125
Yearly Drift 1%
Temperature Coefficient of Resistance (%/C) - (2~5%)

Package Options & Dimensions:

Package Option Description Dimensions (mm) - Code A Dimensions (mm) - Code B Dimensions (mm) - Code C Dimensions (mm) - Code D (Max) Dimensions (mm) - L1 (Max) Dimensions (mm) - L2
1 - Dipped ethoxyline resin (ex. 1A) Moisture resistant, good insulation, high reliability, small time constant, quick responses. 4 16 Customer Specified 4 16 Customer Specified
2 - Aluminum, copper, or stainless steel housing (ex. 2A) High resistance to thermal shock, moisture resistant, strong and secure structure, high dissipation coefficient. 5 16 Customer Specified 5 16 Customer Specified
3 - Plastic body (ex. 3AA) Good dimensional tolerances, good heat resistance and moisture protection, high voltage resistance. 5 25 Customer Specified 5 25 Customer Specified
3 - Plastic body (ex. 3B) Good dimensional tolerances, good heat resistance and moisture protection, high voltage resistance. 4 35 Customer Specified 4 35 Customer Specified
4 - Sheet metal attachment fixtures (ex. 4B) Wide variety of fixtures, suitable for most applications. 6 20 Customer Specified 6 20 Customer Specified
5 - Special probes (ex. 5B) Small time constant, fast response, flexible and secure. 6 25 Customer Specified 6 25 Customer Specified

Part Numbering Example: CWF 103 J 3380

  • CWF: Series
  • 103: Rated Resistance at 25C (10K)
  • J: Precision Symbol (5%)
  • 3380: B value (25/50)

Available Resistance & B Values:

Part No. (Base) Rated Resistance R25 B Value (25/50C) Precision Symbol Allowable
CWF[][][]3100 0.1-20 3100 1, 2, 3, 5
CWF[][][]3270 0.2-20 3270 1, 2, 3, 5
CWF[][][]3380 0.5-50 3380 1, 2, 3, 5
CWF[][][]3470 0.5-50 3470 1, 2, 3, 5
CWF[][][]3600 1-100 3600 1, 2, 3, 5
CWF[][][]3950 5-100 3950 1, 2, 3, 5
CWF[][][]4000 5-100 4000 1, 2, 3, 5
CWF[][][]4050 5-200 4050 1, 2, 3, 5
CWF[][][]4150 10-250 4150 1, 2, 3, 5
CWF[][][]4300 20-1000 4300 1, 2, 3, 5
CWF[][][]4500 10-1000 4500 1, 2, 3, 5

Applications:

  • Heating, ventilation & air conditioning
  • Temperature regulation and measurement
  • Automotive electronics
  • Water heaters
  • Household appliances (refrigerators, water coolers, dishwashers, etc.)
  • Refrigeration
  • Drinking fountains
  • Fan control
  • Industrial temperature controllers
  • Electronic thermometers
