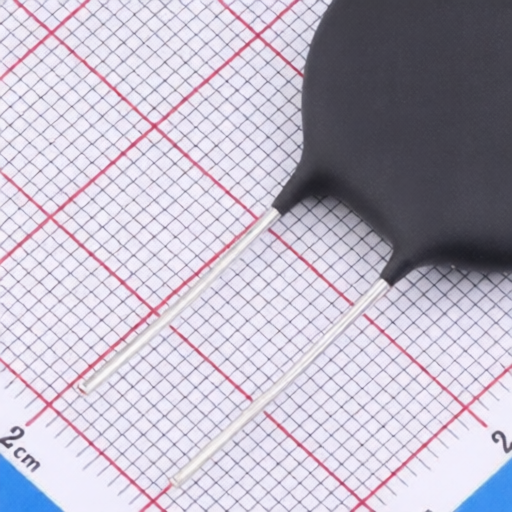

NTC Thermistor KNSCHA 206RV189 with Metal Oxides of Iron Nickel Cobalt and Phenolic Aldehyde Wrapper
NTC Thermistor KNSCHA 206RV189 with Metal Oxides of Iron Nickel Cobalt and Phenolic Aldehyde Wrapper
Specifications
Resistance @ 25℃ :
10Ω
Power(Watts) :
-
Pitch :
10mm
Operating Temperature :
-40℃~+200℃
B Constant (25℃/100℃) :
-
Tolerance :
±20%
Steady State Current (Max) :
7A
Diameter (φD) :
25mm
Thermal Time Constant :
2.17min
B Constant (25℃/85℃) :
-
B Constant (25℃/75℃) :
-
B Constant Tolerance :
-
B Constant (25℃/50℃) :
-
Description :
NTC Thermistor 10Ω Through Hole,P=10mm
Mfr. Part # :
206RV189
Model Number :
206RV189
Package :
Through Hole,P=10mm
Description

Product Overview

NTC Thermistor is a Negative Temperature Coefficient Resistor whose resistance changes with ambient temperature changes. Thermistor comprises 2 or 4 kinds of metal oxides of iron, nickel, cobalt, manganese and copper, being shaped and sintered at high temperature. NTC24

Product Attributes

  • Wrapper: Phenolic aldehyde
  • Down-lead: (Tinned Electron Wire)
  • Coating Color:

Technical Specifications

ItemSpecification requestUnit
Nominal Resistance (251)1020
Max Steady State Current (25)7A
Thermal Time Constant (approx.)130S
Thermal Dissipation Constant (approx.)30mW
Operation Range-40~+200
Approximate resistance value at maximum current0.13
Lead terminal tensile strength1.0kg for 10 sec.
Lead terminal bend strength0.5kg, bend 90
VibrationFrequency: 10~50Hz, Amplitude: 1.55mm, X,Y,Z axis for 2 hrs each
Solderability (2355, 3S)Covered termination: 98
Solder ability (35010, 3.00.5S)Resistance change: within 10%
Dry heat (high temperature storage) (1252 for 1000+48 hours)Resistance change: within 10%
Cold (low temperature storage) (-403 for 1000+48 hours)Resistance change: within 10%
Humidity test (402, 95%RH, 1000HR)Resistance change: within 10%
Temp Cycle test (-40/30 25/5 +125/30 25/5)Resistance change: within 20%
Operating Temperature-40~+200
Storage Conditions-10~40 RH75%
