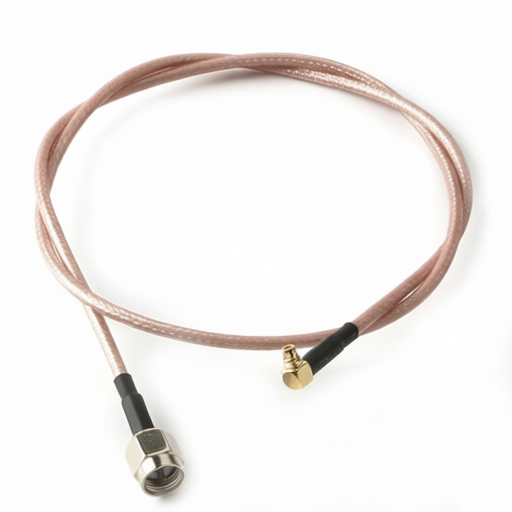

RF coaxial adapter cable BAT WIRELESS BWSMAJ-MMCXWJ-RG316L500 with SMA Male and right angle MMCX Male connectors
RF coaxial adapter cable BAT WIRELESS BWSMAJ-MMCXWJ-RG316L500 with SMA Male and right angle MMCX Male connectors
Specifications
Operating Temperature :
-45℃~+85℃
Line Length :
50cm
Description :
50cm Gas Sensor RoHS
Mfr. Part # :
BWSMAJ-MMCXWJ-RG316L500
Model Number :
BWSMAJ-MMCXWJ-RG316L500
Description

Product Overview

The Bat Wireless BWSMAJ-MMCXWJ-RG316L500 is a high-performance RF coaxial adapter cable designed for reliable signal transmission in wireless communication applications. Operating within a frequency range of 0-6000MHz, this cable features an SMA Male connector on one end and a Right-angle MMCX Male connector on the other, facilitating seamless connectivity between devices with different interface types. Its construction utilizes RG316 coaxial cable, ensuring low signal attenuation and insertion loss. This adapter cable is ideal for use with wireless communication modules such as GPS/Beidou positioning terminals, 4G/5G modules, Wi-Fi/Bluetooth modules, as well as test and measurement equipment like RF test probes and spectrum analyzers. It is also suitable for IoT terminals, enhancing signal performance for smart homes, drones, and wearable devices. The cable is RoHS & REACH compliant.

Product Attributes

  • Brand: BAT WIRELESS
  • Model Number: BWSMAJ-MMCXWJ-RG316L500
  • Cable Type: RG316
  • Cable Length: 500mm
  • Connector 1: SMA Male
  • Connector 2: Right-angle MMCX Male
  • Certifications: RoHS & REACH Complaint

Technical Specifications

Parameter Value Units Notes
Product Type Adapter Cable
Frequency Range 0-6000 MHz
Input Impedance 50
Contact Resistance (Inner) < 3 m
Contact Resistance (Outer) < 2 m
Insulation Resistance >5000 M
DC Voltage 1000 V
Insert Loss 0.15 dB(6GHz) Typ.
RF Leakage -100 dB(6GHz) Typ.
Durability 500 Cycles ID of Plug / OD of Jack
Operating Temperature -45~ +85
Storage Temperature -45~ +85
Cable Construction 7/0.1 Silver-plated copper wire Inner Conductor Material
Cable Insulation Material FEP
Cable Outer Conductor Material Tinned wire 16*5/0.10
Cable Jacket Material FEP
Impedance 502
Capacitance 95 Pf/m 0.1GHz 20
Attenuation 0.262 dB/m 0.4GHz
Attenuation 0.531 dB/m 1GHz
Attenuation 0.860 dB/m 3GHz
Attenuation 1.650 dB/m 6GHz
