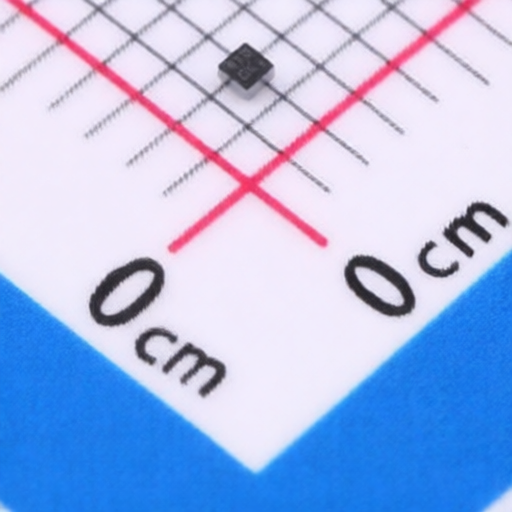

Three axis magnetic sensor QST QMC6309 featuring high resolution 16 bit ADC and temperature compensation
Three axis magnetic sensor QST QMC6309 featuring high resolution 16 bit ADC and temperature compensation
Specifications
Current - Supply :
6uA;10uA
Magnetic Sensing Range(X,Y) :
±3.2mT
Interface :
I2C
Operating Temperature :
-40℃~+85℃
Output bit :
16bit
Voltage - Supply :
2.5V~3.6V
Magnetic Sensing Range(Z) :
±3.2mT
Description :
I2C WLCSP-4(0.8x0.8) Linear, Compass (ICs) RoHS
Mfr. Part # :
QMC6309
Model Number :
QMC6309
Package :
WLCSP-4(0.8x0.8)
Description

Product Overview

The QMC6309 is a three-axis magnetic sensor that integrates magnetic sensors and signal conditioning ASIC onto a single silicon chip. This wafer-level chip-scale package (WLCSP) is designed for applications such as e-compass, map rotation, gaming, and personal navigation in mobile and wearable devices. Leveraging state-of-the-art, high-resolution magneto-resistive technology and a custom-designed 16-bit ADC ASIC, it offers low noise, high accuracy, low power consumption, offset cancellation, and temperature compensation. The QMC6309 enables 1 to 2 compass heading accuracy and features an IC serial bus for easy interface. It is housed in a compact 0.8x0.8x0.5mm surface mount 4-pin WLCSP package.

Product Attributes

  • Brand: QST
  • Certifications: RoHS Compliance

Technical Specifications

FeatureBenefit
3-Axis Magneto-Resistive Sensors in a 0.8x0.8x0.5 mm3 WLCSP, Guaranteed to Operate Over an Extended Temperature Range of -40 C to +85 CSmall Size for Highly Integrated Products. Signals Have Been Digitized and Calibrated.
16 Bit ADC With Low Noise AMR SensorsAchieves 2 milli-Gauss Field Resolution
Enables 1 To 2 Degree Compass Heading AccuracyAllows for Pedestrian Navigation and LBS Applications
Wide Magnetic Field Range (32 Gauss)Maximizes Sensors Full Dynamic Range and Resolution
Temperature Compensated Data OutputAutomatically Maintains Sensors Sensitivity Under Wide Operating Temperature Range
Built-In Self-TestEnables Low-Cost Functionality Test After Assembly in Production
Wide Range Operation Voltage (2.5V to 3.6V) and low Power Consumption less 10uA at 1Hz ODRCompatible with Battery Powered Applications
Lead Free Package ConstructionRoHS Compliance
Software and Algorithm Support AvailableCompassing Heading, Hard Iron, Soft Iron, and Auto Calibration Libraries Available

2410121623_QST-QMC6309_C5439871.pdf
