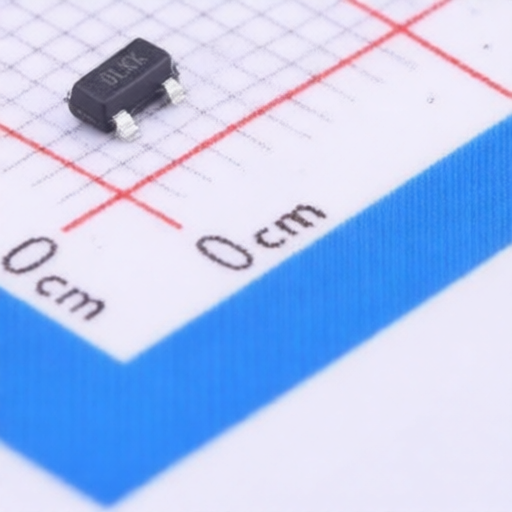

Temperature sensor MICROCHIP TC1047AVNBTR linear output voltage for precise thermal management applications
Temperature sensor MICROCHIP TC1047AVNBTR linear output voltage for precise thermal management applications
Specifications
Temperature Range :
-40℃~+125℃
Voltage - Supply :
2.5V~5.5V
Description :
-40℃~+125℃ 2.5V~5.5V SOT-23 Analog and Digital Output RoHS
Mfr. Part # :
TC1047AVNBTR
Model Number :
TC1047AVNBTR
Package :
SOT-23
Description

Product Overview

The TC1047 and TC1047A are linear voltage output temperature sensors that accurately measure temperature from -40C to +125C. Their output voltage is directly proportional to the measured temperature, with a linear slope of 10 mV/C. Available in a space-saving 3-pin SOT-23B package, these sensors are ideal for applications requiring precise temperature monitoring and thermal management in compact designs. They offer very low supply current, making them suitable for battery-powered equipment.

Product Attributes

  • Brand: Microchip Technology Inc.
  • Package Type: 3-Pin SOT-23B (equivalent to JEDEC TO-236)

Technical Specifications

ParameterSymbolTC1047TC1047AUnitsConditions
Supply Voltage RangeVDD2.7 to 4.42.5 to 5.5V
Wide Temperature Measurement RangeTA -40 to +125COperating
High Temperature Converter AccuracyTMPACY 2 (Max)CTA = 25C
Average Slope of Output VoltageAV10 (typ.)mV/C
Output Voltage at -40CVOUT100 (typ.)mVTA = -40C
Output Voltage at 0CVOUT500 (typ.)mV
Output Voltage at 25CVOUT750 (typ.)mVTA = 25C
Output Voltage at 125CVOUT1750 (typ.)mVTA = +125C
Very Low Supply CurrentIQ35 (Typical)A
Output Source and Sink CurrentIOUT100A
Storage Temperature RangeTA-55 to +150C
Thermal Resistance (3L-SOT-23B)JA336 (typ.)C/W
