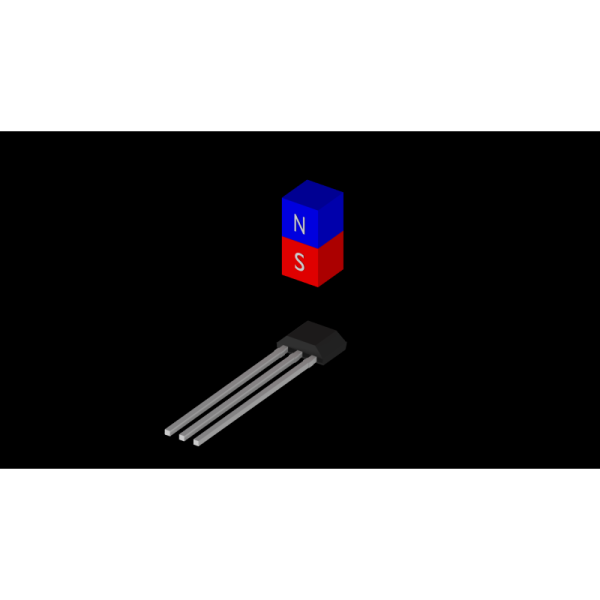

Three wire planar Hall effect sensor ALLEGRO APS11450LLHALX-2SLC with robust communication and integrated diagnostics
Three wire planar Hall effect sensor ALLEGRO APS11450LLHALX-2SLC with robust communication and integrated diagnostics
Three wire planar Hall effect sensor ALLEGRO APS11450LLHALX-2SLC with robust communication and integrated diagnostics
Three wire planar Hall effect sensor ALLEGRO APS11450LLHALX-2SLC with robust communication and integrated diagnostics
Specifications
Voltage - Supply :
3V~30V
Description :
SOT-23W Switches (Solid State) RoHS
Mfr. Part # :
APS11450LLHALX-2SLC
Model Number :
APS11450LLHALX-2SLC
Package :
SOT-23W
Description

Product Overview

The APS11450 is a three-wire planar Hall-effect sensor IC designed for automotive safety-related systems, compliant with ISO 26262:2011 for ASIL B capability. It features an enhanced three-wire interface with interconnect diagnostics and a fault state for robust communication. The sensor offers continuous background diagnostics, reducing fault tolerant time. Product options include various magnetic switch points, temperature coefficients, hysteresis, and response to magnetic fields, compatible with SmCo, NdFeB, or ferrite magnets. It is engineered for harsh environments with integrated protection features, reducing module BOM and assembly costs.

Product Attributes

  • Brand: Allegro MicroSystems
  • Origin: U.S.A.
  • Certifications: ISO 26262:2011 (ASIL B capability pending assessment), AEC-Q100 Grade 0 qualification
  • Material: RoHS COMPLIANT, lead (Pb) free with 100% matte-tin-plated leadframes
  • Color: Not specified

Technical Specifications

Part NumberPackagePackingOutput Polarity (B > BOP)Temperature CoefficientMagnetic Operate Point, BOP (typ)
APS11450LLHALX-0SLA3-pin SOT23W surface mount13-in. reel, 10,000 pieces/reelLow0%/C35 G
APS11450LLHALT-0SLA3-pin SOT23W surface mount7-in. reel, 3000 pieces/reelLow0%/C35 G
APS11450LUAA-0SLA3-pin SIP through-holebulk, 500 pieces/bagLow0%/C35 G
APS11450LLHALX-2SLC3-pin SOT23W surface mount13-in. reel, 10,000 pieces/reelLow0.12%/C180 G
APS11450LLHALT-2SLC3-pin SOT23W surface mount7-in. reel, 3000 pieces/reelLow0.12%/C180 G
APS11450LLHALX-3SLC3-pin SOT23W surface mount13-in. reel, 10,000 pieces/reelLow0.12%/C280 G
APS11450LLHALT-3SLC3-pin SOT23W surface mount7-in. reel, 3000 pieces/reelLow0.12%/C280 G
APS11450LLHALX-3SLD3-pin SOT23W surface mount13-in. reel, 10,000 pieces/reelLow0.2%/C280 G
APS11450LLHALT-3SLD3-pin SOT23W surface mount7-in. reel, 3000 pieces/reelLow0.2%/C280 G

2401241355_ALLEGRO-APS11450LLHALX-2SLC_C3716171.pdf
