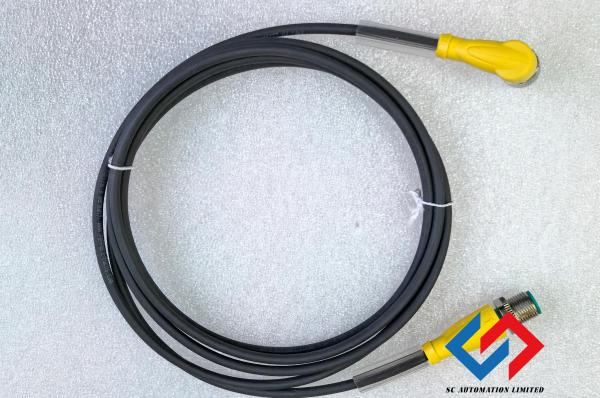

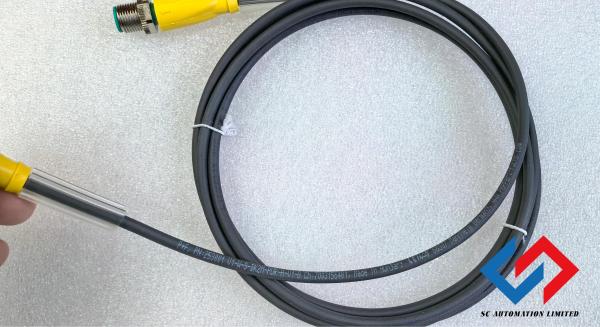

P+F M12 Angled 4-Pin PUR Cable 250V AC/DC
P+F M12 Angled 4-Pin PUR Cable 250V AC/DC
P+F M12 Angled 4-Pin PUR Cable 250V AC/DC
P+F M12 Angled 4-Pin PUR Cable 250V AC/DC
P+F M12 Angled 4-Pin PUR Cable 250V AC/DC
P+F M12 Angled 4-Pin PUR Cable 250V AC/DC
Specifications
Brand Name :
P+F
Model Number :
V1-W-BK2M-PUR-U-V1-G
Certification :
CE
Place of Origin :
DE
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
8-10 weeks
Packaging Details :
Original packaging
Connection :
socke
Construction type :
M12
Style :
angled
Locking :
screw connection
Number of pins :
4
Operating voltage :
max. 250 V AC/DC
Description

P+F Connection cable V1-W-BK2M-PUR-U-V1-G

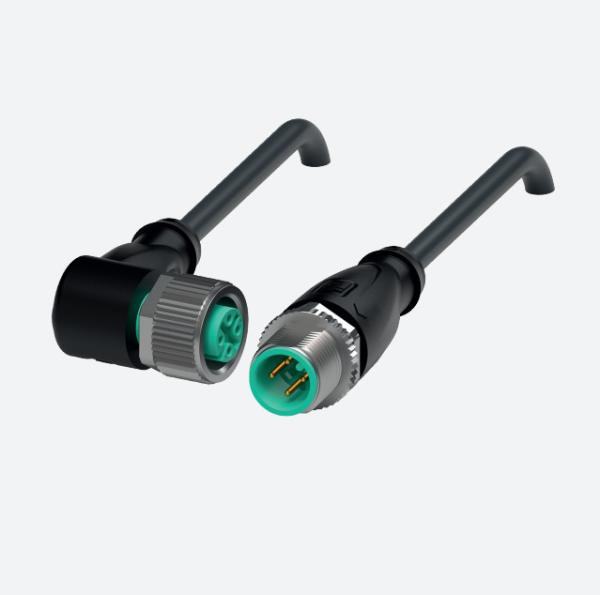

Cordset M12 socket angled to M12 plug straight A-coded, 4-pin, PUR cable black, UL-approved, drag chain suitable, torsion resistant

Dimensions

P+F M12 Angled 4-Pin PUR Cable 250V AC/DC




General specifications
Connector 1

Connection
socket
Construction type
M12
Style
angled
Locking
screw connection
Number of pins
4
Coding
A-coded
Connector 2

Connection
plug
Construction type
M12
Style
straight
Locking
screw connection
Number of pins
4
Coding
A-coded
Electrical specifications
Operating voltage UB max. 250 V AC/DC
Operating current IB max. 4 A
Conformity
Degree of protection
EN 60529
Plug connection
connector M12 x 1 : IEC 61076-2-101
Flammability
UL 1581; DIN EN 60332-2-2
Halogen-free
IEC 60754-1
Approvals and certificates
UL approval
AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable)
UL File Number
E231213
Ambient conditions
Ambient temperature

Plug connector
-40 ... 90 °C (-40 ... 194 °F)
Cable, fixed
-40 ... 80 °C (-40 ... 176 °F)
Cable, flexing
-20 ... 80 °C (-4 ... 176 °F)
Pollution degree
3
Mechanical specifications
Plug connector

Tightening torque
0.6 Nm
Loosening protection
available
Tool installation
straight knurling and hexagon nut SW = 14 mm
Mating cycles
min. 100
Degree of protection
IP68 / IP69
Cable
according to IEC/EN 60228 (DIN VDE 0295) class 6
Sheath diameter
4.3 mm
Bending radius
> 10 x cable diameter, moving
> 5 x cable diameter, fixed
Sheath stripping force
max. 80 N / 300 mm
Sheath color
black (similar to RAL 9005)
Number of cores
4
Core cross section
0.34 mm2
Cores color
Core 1: brown
Core 2: white
Core 3: blue
Core 4: black
Core construction
42 x 0.1 mm ∅
Length L 2 m
Cable code
Li 9Y 11Y 4 x 0.34
Drag chain suitability

Drag chain cycles
min. 5000000
Motion velocity
max. 3.3 m/s
Traverse distance
max. 5 m
Acceleration
max. 5 m/s2
Torsion cycles
min. 1000000
Torsional stress
± 180 °/m
Material
PWIS free
yes
Halogen-free
yes
Plug connector

Screw connection
Zinc diecast, nickel-plated
Body
TPU, black
Seal
FKM
Contact surface
gold plated (Au)
Flammability
V-2
Cable

Sheathing
PUR based on polyether
Core insulation
PP
UV resistance
yes
Dimensions
Dimen
P+F M12 Angled 4-Pin PUR Cable 250V AC/DC
Dimensions
