1.Product Overview​

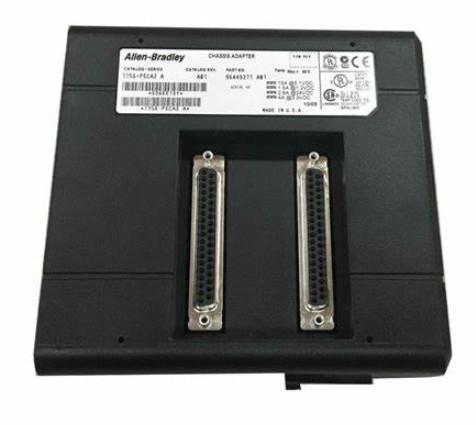

The ​Allen-Bradley 1756-PSCA2 Power Supply Control Adapter​ is a critical monitoring module for Rockwell Automation's ControlLogix® systems, enabling advanced diagnostics and redundancy management in mission-critical power architectures. Designed to interface with ​1756-Px series power supplies, it provides real-time voltage, current, and thermal telemetry via the chassis backplane. Housed in a single-slot module with ruggedized zinc-alloy construction, it withstands industrial vibrations (5g IEC 60068-2-6) and operates from ​​-40°C to +70°C. Key features include ​dual-mode redundancy control​ (active/standby coordination), ​predictive failure alerts, and ​hot-swap synchronization​ to ensure zero downtime during maintenance.

2.​Critical Technical Specifications​

​Precision monitoring parameters:

• ​Input Monitoring: 0.1% accuracy for ±50mV DC voltage / ±10mA current sensing
• ​Redundancy Control: Manages up to ​4 parallel power supplies​
• ​Compatibility: Interfaces with 1756-PA72, PB75, PBXT series PSUs
• ​Communication: 57.6 kbps serial link via 1756 backplane
• ​Sampling Rate: 10ms update cycle for all parameters
• ​Isolation: 1500V AC input-to-backplane protection
• ​LED Indicators: PSU status (green/amber/red) + load balancing alerts
• ​Environmental: UL Type 12/IP52, ATEX Cat 3 Zone 2 compliant
• ​Safety Certifications: UL 61010-1, IEC 61508 SIL 2

​3.Targeted Applications​

​High-availability power systems:

• ​Energy Substations: Dual-fed PSU monitoring for SCADA control cabinets
• ​Automotive Production: Redundant power management in robotic paint shops
• ​Pharmaceutical: Cleanroom batch process UPS synchronization
• ​Chemical Plants: SIL 2-compliant reactor control power backups
• ​Water Treatment: Flood-prone pump station power redundancy
• ​Data Centers: Industrial-grade UPS health monitoring
• ​Mining: Conveyor motor control center power diagnostics

4.​Competitive Advantages​

​Operational superiorities:

• ​Predictive Maintenance: ​Capacitor aging detection​ alerts 30+ days pre-failure
• ​Intelligent Load Balancing: Auto-adjusts current sharing within ±0.5A tolerance
• ​Cyber-Secure Architecture: Signed firmware validation per IEC 62443-4-2
• ​Space Optimization: Single-slot design replaces external monitoring hardware
• ​Lifecycle Cost: 10-year service life with ​0.01% annual drift​ specification
• ​Global Compliance: Single SKU for ATEX/IECEx/NEC 500/505 standards
• ​N+1 Integration: Seamless failover coordination for ≤5ms power interruptions

5.​Functional Capabilities​

​Advanced power management:

• ​Dynamic Priority Sequencing: Stages power restoration post-outage
• ​Event Logging: Stores 500+ incidents (voltage dips, overloads) with μs timestamps
• ​Phase Loss Compensation: Maintains output during single-phase grid failures
• ​Studio 5000® Integration: Real-time PSU health via ​Controller Tags​
• ​Brownout Mitigation: Initiates graceful shutdown at <85V AC input
• ​Ground Fault Detection: Isolates leakage >5mA to chassis
• ​Thermal Throttling: Reduces load during overtemperature (>85°C)
• ​Firmware Control: In-field updates without disrupting operations

​
