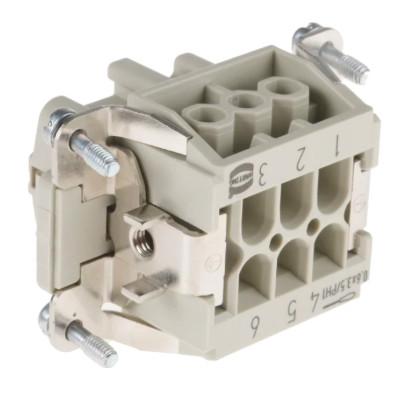

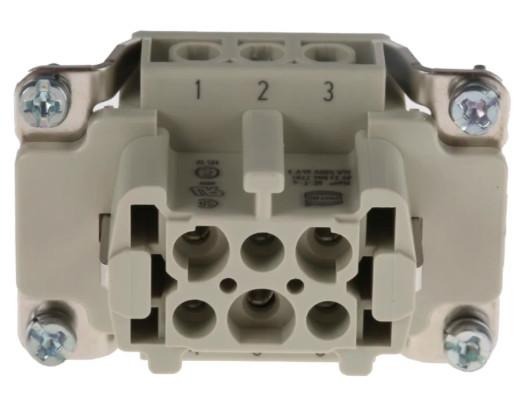

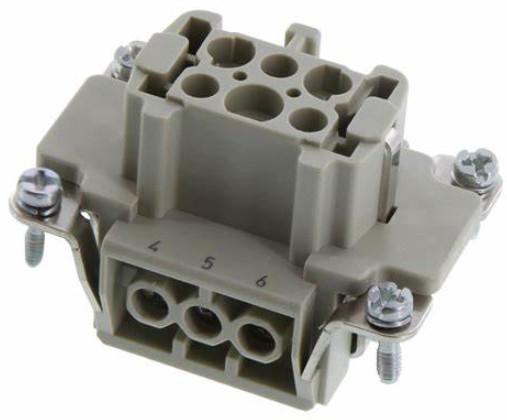

​1. Product Overview: HARTING 09330062701 Han® 3A Industrial Connector

​
The HARTING 09330062701 is a versatile modular connector from the Han® 3A series, engineered for high-performance power, signal, and data transmission in industrial automation systems. Its robust polyamide (PA) housing provides IP65/67 protection, ensuring resistance to dust, water, vibration, and chemical exposure. Designed for tool-free assembly, this connector features a push-pull locking mechanism for rapid installation and secure mating, minimizing downtime in dynamic environments. The 09330062701 supports hybrid configurations, allowing integration of power contacts (up to 16A), signal pins, and data modules (e.g., RJ45, USB) within a single compact housing. This flexibility makes it ideal for applications requiring space-efficient, multi-functional connectivity, such as robotics, motor control units, and IoT-enabled machinery.

​2. Key Technical Specifications​

• ​Rated Voltage/Current: 400V AC, 16A (per contact).
• ​Contact Resistance: ≤2.5 mΩ (initial).
• ​Insulation Resistance: ≥1,500 MΩ (500V DC).
• ​Operating Temperature: -40°C to +125°C.
• ​Housing Material: PA (UL94 V0 flame-retardant).
• ​Protection Class: IP65/67 (mated), IP20 (unmated).
• ​Mating Cycles: ≥1,000 cycles (mechanical durability).
• ​Certifications: UL, CSA, CE, RoHS, REACH.
• ​Contact Options: Power, signal, data (Cat.5e/6), and hybrid variants.

​3. Industrial Applications and Use Cases

​
The 09330062701 is widely deployed in automated manufacturing lines for servo motor connections, PLC interfaces, and sensor networks. In renewable energy systems, it ensures reliable power and data transfer in solar inverters and wind turbine control cabinets. Transportation sectors utilize it for rail signaling systems and electric vehicle charging infrastructure, where its IP67 rating withstands harsh outdoor conditions. Robotics applications benefit from its hybrid design, combining motor power and real-time sensor data transmission. Additionally, it supports Industry 4.0 initiatives by enabling Ethernet-APL or PROFINET integration, facilitating smart factory connectivity with minimal cabling complexity.

​4. Competitive Advantages and Unique Features​

• ​Hybrid Versatility: Seamlessly integrates power, signal, and high-speed data in one connector.
• ​Time-Saving Design: Pre-assembled inserts and tool-free locking reduce installation time by 60%.
• ​Enhanced Durability: Vibration-resistant PA housing and gold-plated contacts ensure longevity in extreme environments.
• ​Space Optimization: Compact Han® 3A footprint saves panel space in control cabinets.
• ​Global Compliance: Meets ATEX and IECEx standards for explosive atmospheres.

​5. Functional Capabilities and Operational Benefits

​
The 09330062701 streamlines industrial connectivity with EMI-shielded variants for noise-sensitive data transmission, such as industrial Ethernet. Its high-temperature tolerance supports applications in foundries or steel plants, while the push-pull mechanism allows single-handed operation in confined spaces. By consolidating multiple connection types, it reduces cable clutter and lowers total ownership costs. Compatibility with HARTING’s Han® ecosystem enables scalable upgrades, ensuring future-proofing for evolving automation needs. With a 30% reduction in maintenance costs and seamless integration into global projects, this connector delivers efficiency, reliability, and adaptability for next-generation industrial systems.

​
