Specifications
Brand Name :
Hollysys
Installation Method :
DIN Rail / Control Cabinet Mounting
Model Number :
MC
Packaging Details :
50*50*50mm
Supported Protocols :
EtherCAT, Modbus TCP, EtherNet/IP, OPC UA
Processor Performance :
High-Speed Multi-Core Industrial CPU
Payment Terms :
T/T
Product Type :
Multi-Axis Industrial Motion Controller
Programming Platform :
IEC 61131-3 & PLCopen Motion Control
Delivery Time :
3-7
Product Model :
HOLLYSYS MC Series Motion Controller
Price :
USD 100-10000/Piece
MOQ :
1
Motion Control Capacity :
Up to 128 Synchronized Motion Axes
Certification :
3C
Communication Network :
EtherCAT Real-Time Industrial Ethernet
Place of Origin :
China
Supply Ability :
1/piece in stock
Description

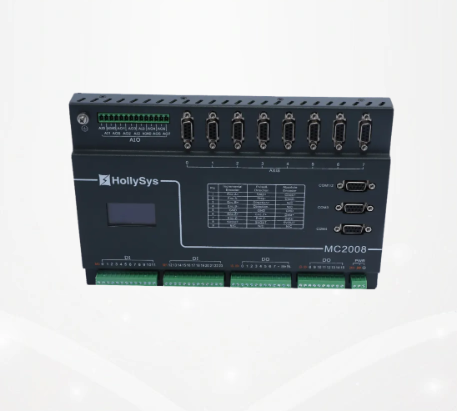

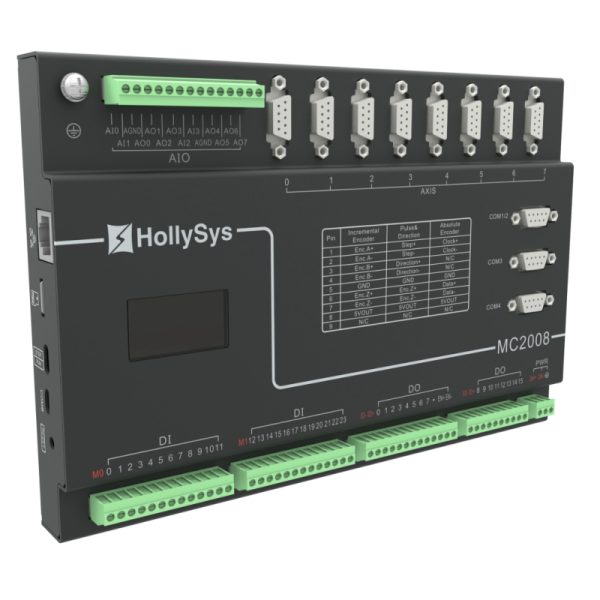

Hollysys MC - Motion-Drive/Position-Lock - High Precision Durable Motion Controller
MC Series - Motion-Centric Control Engine for Complex Single Machines

The HollySys MC Series is a motion-dedicated controller built for complex, single-device automation such as CNCs, industrial robots, semiconductor tools, and specialty machinery. It combines deterministic servo timing with rich motion algorithms to coordinate high-speed, high-precision multi-axis moves while still handling sequencing and logic locally.

Key Specs, Interfaces & Applications

Core strengths include a configurable servo cycle (≈125-2000 µs), 64-bit double-precision math, and a dual-core ARM Cortex‑A9 @ ~667 MHz for fast trajectory solving. Interfaces cover EtherCAT (MC1002E) / RTEX (MC1002R) plus pulse/analog servo paths, encoder inputs (e.g., EnDat/SSI/Tamagawa), high-speed pulse capture, and Ethernet with Modbus TCP for easy integration—making it well-suited to laser/water‑jet cutting, robotic cells, and high-speed packaging/print lines where tight synchronization matters.

Product Specifications: Hollysys MC Series Motion Controller
Parameter Category Specification Details
Max. Controllable Axes Up to 64 axes (including EtherCAT, RTEX, or pulse)
CPU Architecture Dual-core ARM Cortex-A9 @ 667 MHz
Memory (DDR3 SDRAM) 256 MB
Positioning Accuracy 64-bit double-precision floating point
Motion Control Cycle Configurable from 0.125 ms to 8 ms
Local Digital I/O 24 DI / 16 DO (including 12 High-speed DI/8 High-speed DO)
Servo Interface 6 MHz encoder input / 2 MHz pulse output, EtherCAT, RTEX, Powerlink
Communication Protocols Modbus RTU/TCP, Free Port
Power Supply 24 VDC (20.4~28.8 VDC)
Operating Temperature 0°C to +60°C
