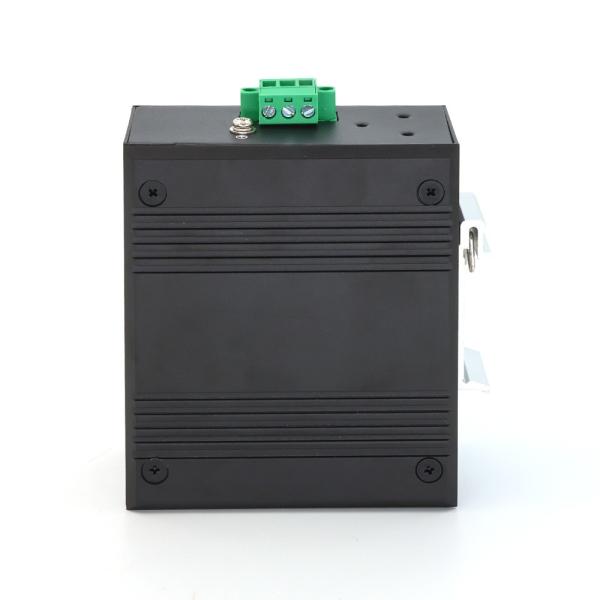

DIN Rail Mount Industrial Ethernet Switches 8 Port IP40 With Dual Row Port
DIN Rail Mount Industrial Ethernet Switches 8 Port IP40 With Dual Row Port
DIN Rail Mount Industrial Ethernet Switches 8 Port IP40 With Dual Row Port
DIN Rail Mount Industrial Ethernet Switches 8 Port IP40 With Dual Row Port
Specifications
Brand Name :
KRONZ
Model Number :
US-08TY
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Paper box packing
Transmission Rate :
10/100/1000Mbps
Function :
POE
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
1000mbps
Ethernet port :
8*RJ45 Ports
Input voltage :
12/24/48VDC(10.8-52.8VDC)
Buffer space :
1 Mb
Protection level :
IP40
Description

8-port 1000M bit/s dual row electric port Industrial-grade Ethernet switch, supporting10/100/1000Base-TX.US-08TY switch has super strong ruggedness to adapt various harsh environment, and can also be conveniently placed in a compact control box. The rail mounting feature, wide temperature operation, and the IP40 protected housing and LED indicator make US-08TY a plug-and-play industrial-grade, providing users with a reliable and convenient solution for networking their Ethernet devices.


Product Feature:

■ Ensure reliable data transmission and long working life

■ Transfer speed automatically adjustable via Auto-Negotiation function

■ Half Duplex/Full Duplex,Auto-crossing
■ Store-and-forward switching mode,supporting multiple protocols
■ Din rail with IP40 metal mechanism
■ Wide operating temperature:-20°C~75°C

Technical Data

Products description
8-port unmanaged Industrial Ethernet Switch
Port description

8 x RJ45 female 8 pin,8-port 10/100/1000Base-T(X)
MDI/MDI-X auto-crossover,auto-negotiation
Network protocol

IEEE802.3 ,IEEE802.3i 10Base-T; IEEE802.3u100Base-TX/FX
IEEE802.3ab1000Base-T ;IEEE802.3x
Environmental conditions
Ambient temperature
-20 ～ 75 ° C
Storage temperature
-40 ～ 85 ° C
Relative humidity
5% ～ 95%( no condensation)
Power
Input voltage
12/24/48VDC(10.8~52.8VDC)
Power consumption
130mA@24Vmax
Interface terminal
1 plug-in-3 pin wiring terminal
Overload protection
Provided
Reverse protection
Provided
Mechanical characteristics
Shell
IP40 protection level, metal shell
Installation
DIN rail mounting, wall-mounted
Cooling method
Natural cooling, fanless
Weight
0.6Kg
Size
100x 85x 47.2mm (L x W x H)
Standards:

IEC(EN)61000-4-2(ESD) :±8kV contact discharge ,±12kV air discharge

IEC(EN)61000-4-3(RS) : 10V/m(80 ～ 1000MHz)
IEC(EN)61000-4-4(EFT) : network port: ±4kV CM//±2kV DM ;
IEC(EN)61000-4-5(Surge) : network port : ±4kV CM//±2kV DM ;
IEC(EN)61000-4-6(Radio Frequency Conducted) : 3V(10kHz ～ 150kHz),10V(150kH z ～ 80MHz)
IEC(EN)61000-4-16(Common Mode Conducted) :30V cont. 300V,1s
IEC(EN )61000-4-8
Shock :IEC 60068-2-27
Freefall :IEC 60068-2-32
Vibration :IEC 60068-2-6
Switch attributes
Forwarding rate
1488095pps
Switch method
Store-Forward
MAC table
4K
Buffer space
1Mb
Backplane bandwidth
16G
Max. frame length
16KB
Protection level
IP40
Mean time between failures
300,000 hours
Warranty
3 years


Mechanical Dimension Drawing

DIN Rail Mount Industrial Ethernet Switches 8 Port IP40 With Dual Row Port
