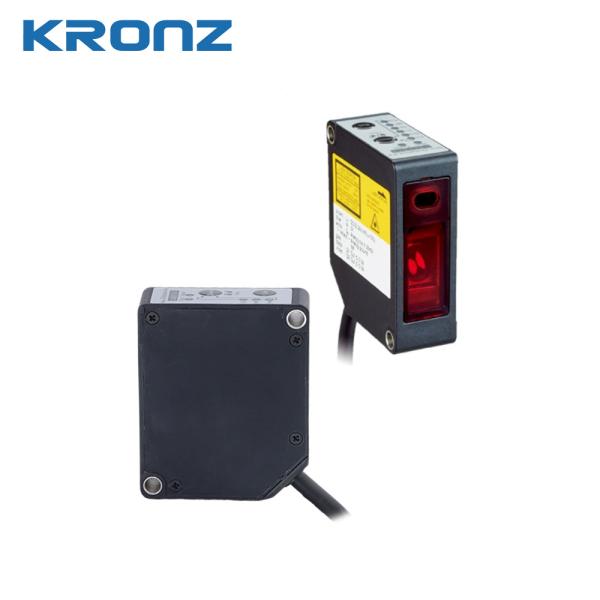

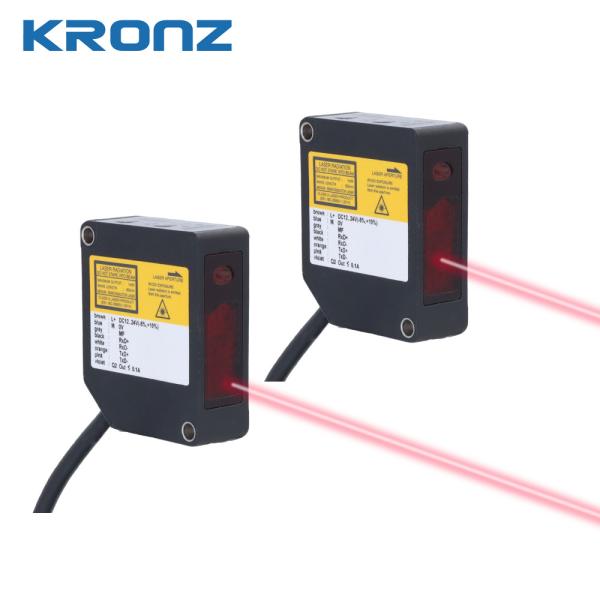

IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor
IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor
IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor
IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor
Specifications
Brand Name :
KRONZ
Model Number :
KD50-L30N
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 pieces per month
Operating Temperature :
-10~45°C
Vibration Resistance :
10~55Hz, Double Amplitude 1.5mm,X、Y、Z Directions, 2 Hour For Each
Operating Humidity :
35~85%RH(no Condensation Or Icing)
Ambient Illuminance :
Sunlight: ≤10000lux, Lamp:≤3000lux
Wavelength :
655nm
Storage Humidity :
35~95%RH(no Condensation Or Icing)
Weight :
Cable Type: 65g
Housing Material :
Housing: PBT, Lens: PMMA
Description

Product Description:

The Photoelectric Sensors product is a versatile and reliable solution designed for a wide range of applications, including machine guarding and automation systems. The CMOS sensor enables fast processing, high resolution, and stable performance even for challenging surfaces (e.g., glossy, dark, or rough textures).

IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement SensorIP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor

Cable Type 2CH+Analog Current KD50-L30N
Output Signal Switching output: NPN (-N)
Detection Range 26.3±2mm
Full Scale (F.S.) 4mm
Spot Size Near Range 0.15 x 0.15mm
Linearity Accuracy ±0.2%F.S.
Repeatability 1μm
Response Time High-speed Mode max.5ms: sampling average x 1 (1ms) + sensitivity switch time (max.4ms)
Standard Mode max.12.5ms: sampling average x 16 (8.5ms) + sensitivity switch time (max.4ms)
IP Rating
IP67

IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement SensorIP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor

Applications:

KRONZ Photoelectric Sensors are versatile sensors suitable for a wide range of product application occasions and scenarios due to their high-quality features and specifications. These sensors, originating from Guangdong, China, come with CE certification, ensuring their reliability and performance.

Height or Thickness Control: Ensuring consistent material thickness in processes like film extrusion or sheet metal production.

Positioning and Alignment: Used in robotic systems to precisely align tools or components.

IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor

IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor

IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor

IP67 Photo Electric Sensors For Industrial Applications CMOS Laser Displacement Sensor
