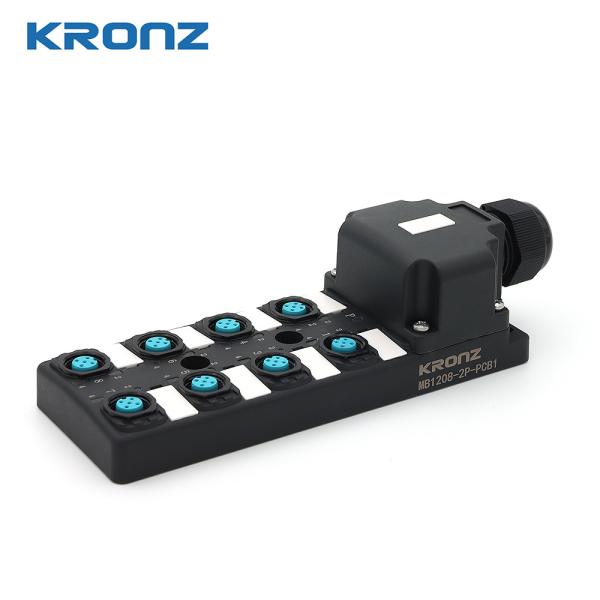

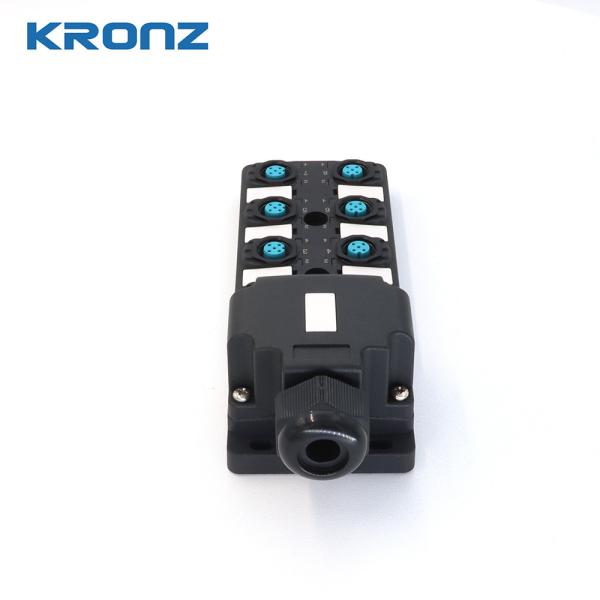

IP67 Industrial Distribution Box Dual Channel 8 Port M12 Connector Junction Box
IP67 Industrial Distribution Box Dual Channel 8 Port M12 Connector Junction Box
IP67 Industrial Distribution Box Dual Channel 8 Port M12 Connector Junction Box
IP67 Industrial Distribution Box Dual Channel 8 Port M12 Connector Junction Box
Specifications
Brand Name :
KRONZ
Model Number :
MB1208-2W-PCB1
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
7-10 working days
Packaging Details :
Paper box packing
Product name :
8 Position Junction box
Type :
NO Components
Termination :
M12 connectors
Total Current :
6A
Voltage Rated :
24V DC/AC
Housing Protection Ievel :
IP67
Description

The installation of M12 waterproof connectors is very convenient. Nut fixed terminals can ensure simple and fast connection, and crimped terminals are suitable for fast and effective batch connection. The M12 distributor has a wide range of applications. The waterproof connector series is widely used in products that require waterproofing and dust prevention, such as LED street lights, robotic arm, water level recorders, remote water meters, water quiality monitoring, navigation, lighthouses, cruise ships, industrial equipment, sprinklers, etc. Provide safe and reliable connections in harsh environments.

Technical Parameter

Order Model
MB1208-2W-PCB1
Type
No component
IP67 Industrial Distribution Box Dual Channel 8 Port M12 Connector Junction Box M12 Socket
Rated Power Ue
24V DC/AC
Rated Working Voltage Ub
18...30 V DC
Current load capacity(A)
4 A
Total current(A)
6 A
Power on indicator light
Green LED indicator light
Shell protection garde
IP67(when connected correctly)


IP67 Industrial Distribution Box Dual Channel 8 Port M12 Connector Junction Box Dual Channel
Pin Definition Pin 1: (+)
Pin 2: (S2)
Pin 3: (-)
Pin 4: (S1)
Pin 5: (PE)
No Component (No)
(No)
(No)
