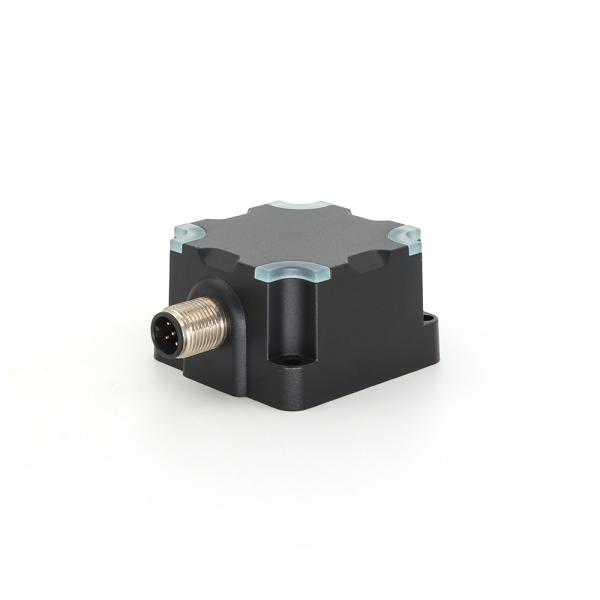

5 Pin M12 A Coded Male RFID Recognition System Read Write Head RS232 LED Display
5 Pin M12 A Coded Male RFID Recognition System Read Write Head RS232 LED Display
5 Pin M12 A Coded Male RFID Recognition System Read Write Head RS232 LED Display
5 Pin M12 A Coded Male RFID Recognition System Read Write Head RS232 LED Display
Specifications
Brand Name :
KRONZ
Model Number :
KRH-Q50G-R2
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Paper box packing
Series :
Q50 Series
Description :
Read/write Head
Operating Frequency :
13.56MHz
Antenna :
Integrated
ISO Standard :
ISO 15693
Communication Interface :
RS-232
Supply voltage :
9-30VDC
Transmission Speed :
9600~115200 bps
Description

RFID Recognition System Read Write Head RS232 LED Display 5Pin M12 A-code Male

An RFID Read/Write Head with RS232 and LED Display is a specialized RFID device that combines several features for industrial or commercial use, enabling data communication, visual feedback, and direct integration with other systems.

Key Components and Functions:

  1. RFID Read/Write Head:
    This is the main component that reads data from and writes data to RFID tags, typically using High Frequency (HF, 13.56 MHz) or Ultra High Frequency (UHF, e.g., 860–960 MHz) depending on the model.

  2. RS232 Interface:
    RS232 is a standard serial communication protocol commonly used in industrial environments. It allows the RFID head to connect directly to a PLC (Programmable Logic Controller), industrial PC, or other control systems for data exchange.

  3. LED Display:
    The integrated LED display provides real-time visual feedback. It can show information such as:

    • Tag ID or serial number

    • Read/write success or failure messages

    • Custom status indicators or operation prompts


5 Pin M12 A Coded Male RFID Recognition System Read Write Head RS232 LED Display

5 Pin M12 A Coded Male RFID Recognition System Read Write Head RS232 LED Display

Technical Data

Order No.
KRH-Q50G-R2
Radio Frequencies
Operating frequency
13.56MHz
Antenna
Intergrated
Read/Write range
0-100mm (Related to the tags)
ISO standard
ISO 15693
Electrical Data
Supply voltage
9~30VDC
Current consumption
<700mA@24V
Communication interface
 RS232
Transmission speed
9600~115200 bps
Transmission distance
 < 10m
Connector
5Pin-M12- ACODEDMale
Permitted ambient conditions
Operation temerature
-30℃~+70℃
Storage temperature
-40℃~+85℃
Degree of protection
IP67 according to EN 60529
Shock resistance
7M2,500 m/s2,according to EN 60721-3-7
Vibration resistance
7M2,200 m/s2,according to EN 60721-3-7
Torsion and bending load
Not permitted
Mechanical specifications
Housing Material
PC + ABS
Housing color
Black
Weight
About 80g
Dimensions
50 x 50 x 30 mm
Type of mounting
4 X M4 screws, the length of the screw should be ≥ 20 mm
LED display
4 x LED, blue
2 x LED, red
2 x LED, yellow
Standards, specifications, approvals
Proof of suitability
CE FCC RoHS WEEE
