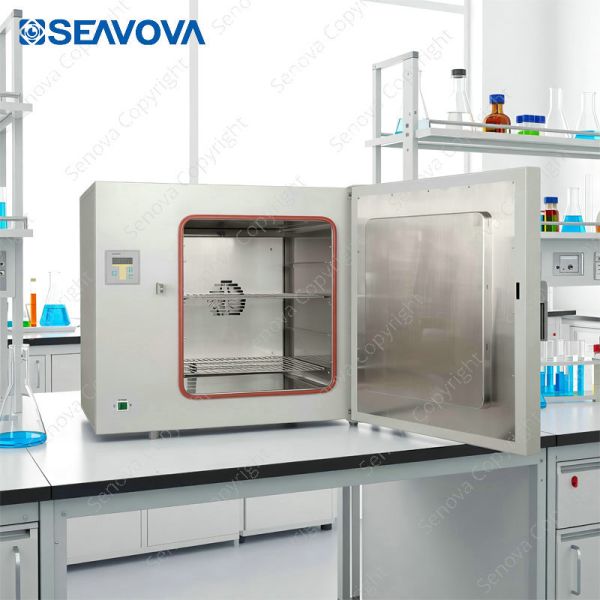

400C Benchtop Drying Oven with Horizontal Forced Convection NuOven C31-I
400C Benchtop Drying Oven with Horizontal Forced Convection NuOven C31-I
Specifications
Place of Origin :
China
Brand Name :
Senova
Certification :
CE
MOQ :
1 unit
Price :
Available upon request
Packaging Details :
Carton with pallet
Delivery Time :
Approx. 10 working days
Payment Terms :
T/T
Supply Ability :
500 units/month
Model Number :
NuOven C31-I
Description
400℃ Drying oven(Benchtop,Horizontal Forced Convection)NuOven C31-I
Features
  1. Space-efficient benchtop configuration with rear heating technology.
  2. Horizontal forced convection for optimal thermal management.
  3. Stainless steel interior with corrosion-resistant powder coating.
  4. High-speed CPU processor for responsive temperature control.
  5. Sensitive PT100 sensor for precise thermal measurement.
  6. Extended 99-hour programming with automated operation cycles.
  7. Comprehensive safety alarms covering all critical parameters.
  8. User-friendly parameter memory for workflow efficiency.
  9. Calibratable temperature display for reliable readings.
  10. Self-diagnosing control system for maintenance optimization.
  11. Secondary temperature safety system available as option.
  12. Controlled atmosphere capability with gas interface option.
Specifications
Model NuOven B31-I NuOven C31-I (*Note) NuOven B72-I NuOven C72-I (*Note) NuOven B101-I NuOven C101-I (*Note) NuOven B150-I NuOven C150-I (*Note) NuOven B252-I NuOven C252-I (*Note)
Chamber volume(L) 30 70 100 150 250
Convection Method Horizontal forced Convection (Fan)
Temp. Control Range RT+5℃～ 400℃
Temperature Accuracy ±1℃ at 100℃
Fluctuation ±1.5℃
Uniformity ± 2.5℃ at 100℃ ± 2.5℃ at 100℃
Controller PID microprocessor control, soft touch, LED display
Sensor PT100
Timer Power-on, power off and working. Timing range: 1min-99hr
Material Internal 304 stainless steel
External 08F
Dimensions (WxDxH,mm) Internal 300*300*350 400*400*450 450*450*500 500*500*600 600*600*700
External 640*520*575 740*620*675 790*670*725 840*720*825 940*820*925
Net Weight(Kg) 46 65 78 94 125
Consumption Power(W) 1200 1600 2000 2500 3200
Shelf Size(mm) 290*270 390*370 440*420 490*470 590*570
ShelfQty(Standard/Maximum) 2/4 2/4 2/4 2/4 2/5
Power Supply 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)

*Note:NuOven C31-I/C72-I/C101-I/C150-I/ C252-I has10-segment temperature control program to realize temperature curve program running.

Introduction about drying oven

A key term in quantitative drying procedures is "drying to constant weight." This is not a set time but a state achieved through iterative weighing. A sample is dried for a specified initial period, then removed, cooled in a desiccator (to prevent moisture absorption from air), and weighed. It is then returned to the oven for an additional period, cooled, and weighed again.

This process is repeated until the difference between two consecutive weighings is less than a defined threshold (e.g., 0.1%). This ensures that all removable moisture is truly gone, as different samples dry at different rates. The oven's consistent performance is vital for this method, as any fluctuation could lead to misleading weight measurements.
