-75C 30Kg Small Pharmaceutical Freeze Dryer Pharmaceutical Lyophilizer
-75C 30Kg Small Pharmaceutical Freeze Dryer Pharmaceutical Lyophilizer
Specifications
Place of Origin :
China
Brand Name :
Senova
Certification :
CE
MOQ :
1 unit
Price :
Available upon request
Packaging Details :
Plywood case
Delivery Time :
5-20 working days
Payment Terms :
T/T
Supply Ability :
500 units/month
Model Number :
NovaDryer-FS30
Type :
Freeze Drying Equipment
Usage :
Pharmacy lyophilization
Controlsystem :
PLC with touch screen interface
Applications :
pharmaceutical industry
Area :
3 m2
Condenser temperature :
-75°C
Heating Method :
Electric Heating
Control :
PLC
Cooling Method :
Water Cooling
Powersupply :
380V/50Hz
Description

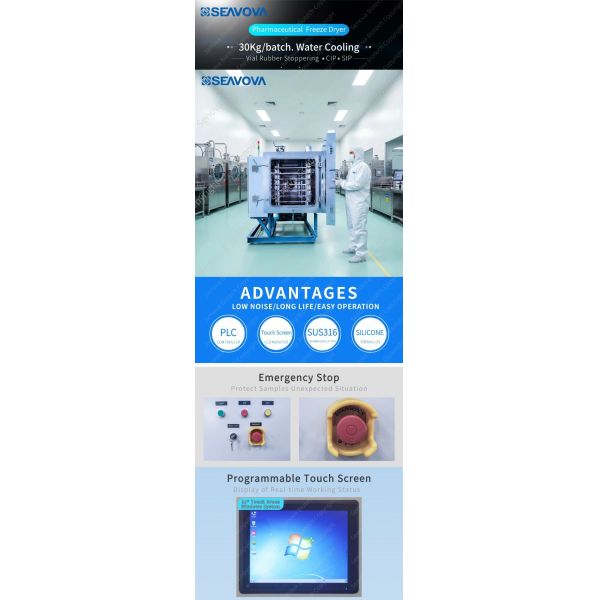

-75C 30Kg Small Scale Pharmaceutical Industry Freeze Dryer / Lyophilizer NovaDryer-FS30
Main Features:

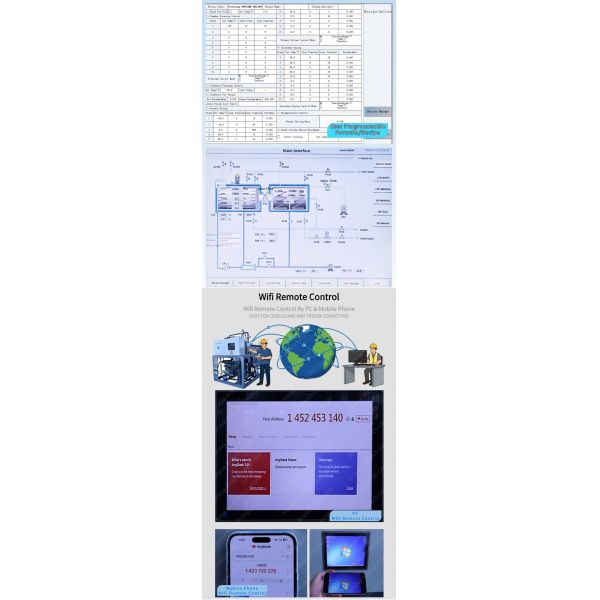

  • PLC +PC control system with WIFI remote control
  • Water cooling system

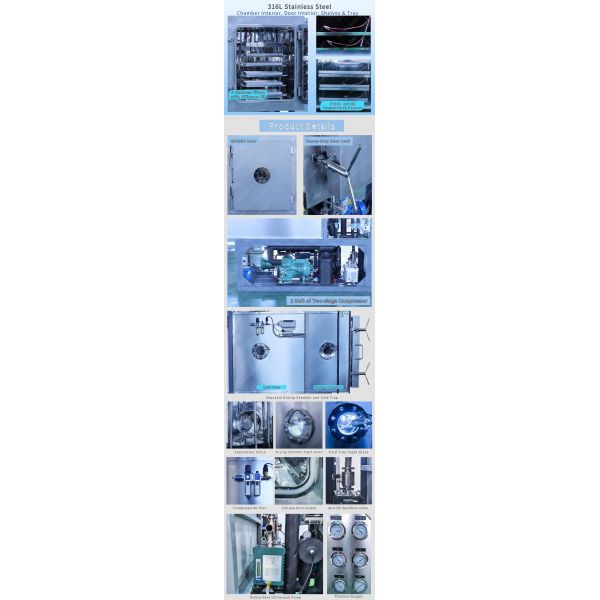

  • 316L stainless steel chamber and trays
  • SUS304 stainless steel chamber housing
  • Hydraulic top press device for shelf cleaning and vial rubber stopper sealing
  • Tilt angle at the bottom meeting CIP and SIP(Sterilization-in-Place) draining requests
  • Shelves filled with silicon oil with satisfactory temperature uniformity with difference <1℃
  • Side leakage of vacuum is tested with helium mass spectrometer to ensure high vacuum

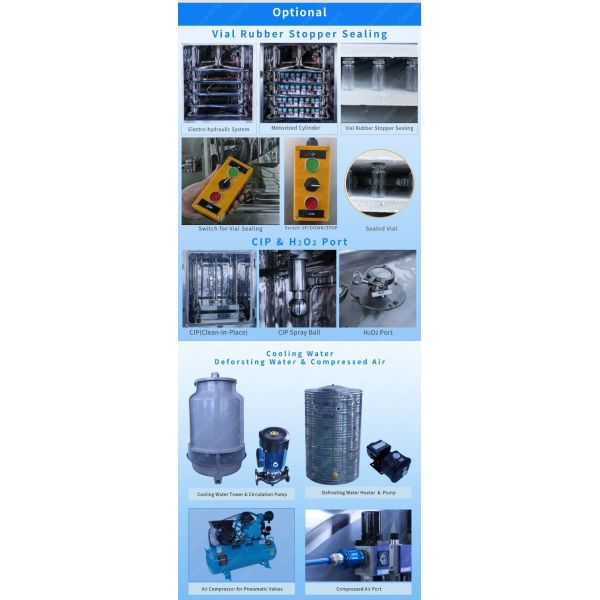

Optional:
  • CIP(Clean-In-Place)
  • SIP(Sterilization-in-Place)
  • H2O2 sterilization port
Specifications
Model NovaDryer-FS30
Output Capacity(approx.) 13,000 units of vials 16mm diameter
6,900units of vials 22mm diameter
Maximum icing capacity 60kg
Load Capacity (suggested) 40Kg
Vial rubber stoppering top press device (Optional) Hydraulic stoppering
Control Microprocessor
Dimension of unit (approx.) (L*W*H,mm) 4,200* 1,300* 3.300
(with hydraulic cylinder) (Final dimension based on design)
Weight (approx.) 3,800kg
Chamber material AISI304L
Temperature control range -55°C to + 80°C
Qty of shelves 6+ 1(upper radiant shelf)
Dimensions (L*W*H,mm) 900* 600 * 20
Total usable area (m2) 3.24
Shelf Spacing (mm) 100
Condenser final temperature ≤-75°C
Extreme vacuum ≤1*10 -2mbar
Software TF – 5000
PLC control system Omron
Computer Len0v0
Electricity - total electrical load 16kW (380V/50Hz, 3Phase, 5Wire)
Cooling water for refrigerant cooling 8m3/hr (1.5≤P≤2bar, T≤25°C)
Water for injection for chamber cleaning 150L/min (P≥5bar, T=80°C)
Compressed air for pneumatic valves 40L/min (6≤P≤8bar)
-75C 30Kg Small Pharmaceutical Freeze Dryer Pharmaceutical Lyophilizer-75C 30Kg Small Pharmaceutical Freeze Dryer Pharmaceutical Lyophilizer-75C 30Kg Small Pharmaceutical Freeze Dryer Pharmaceutical Lyophilizer-75C 30Kg Small Pharmaceutical Freeze Dryer Pharmaceutical Lyophilizer
FAQ
Q: What is the HS code?
A: Typically 8419331000, 8419339090, or 8419399090. Confirm with your local customs.
Q: How to get a quote and brochure?
A: Tell us the model and quantity. You'll receive a detailed quote with specs and brochure.
Q: Compatible with 110V/60Hz or 220V/60Hz?
A: Yes. Supports 110V/60Hz and 200V-240V/50-60Hz. Specify your requirement when ordering.
Q: Operating vacuum level?
A: 15Pa (0.15 mbar).
Q: English version available?
A: Yes.
Q: Can the power plug be replaced?
A: Yes. We provide cords with various international plugs. Specify your standard.
Q: Ready to use upon delivery?
A: Almost. Connect the pump, plug in, and power on. Use the touch screen to operate.
Q: Difficult to install for first-time users?
A: No. We provide a manual, picture checklist, and a setup video for easy installation.
Q: Can I get an oil-free vacuum pump?
A: Yes, as an optional upgrade for extra cost.
Q: What is the packaging?
A: Strong plywood crate for safe international shipping.
Q: Can it ship by air?
A: Yes, but extra inspections/fees apply for refrigerant. Sea freight is more cost-effective.
Q: Can we check quality before shipment?
A: Yes. We provide photos and videos of your actual unit for approval before shipping.
Q: Payment terms?
A: T/T (Bank Transfer).
Q: Delivery time?
A: 5-20 working days after payment, depending on order.
Q: Company location? Can we visit?
A: Based in Shanghai with a factory nearby. Visits are welcome.
Q: What certifications?
A: ISO 9001 and CE.
Q: After-sales service?
A: Includes online support, video training, quick spare parts supply, and optional factory training.
Q: Warranty?
A: 12-month standard warranty (14 months for stock orders). Lifetime maintenance support.
About Freeze Drying Technology

Freeze-drying, or lyophilization, preserves perishable items by freezing and sublimating water through pressure reduction, an ancient practice from 13th-century Andean Indians. It refined in the 1950s. Developed for blood plasma in World War II, it later entered consumer food markets. Albert Altmann freeze-dried organ pieces in 1890; 1920s patents included rabies virus freeze-drying. The 1950s saw camping food applications. NASA adopted it for space food, notably freeze-dried ice cream on Apollo 7 and Gemini. Nestlé’s 1965 instant coffee made it mainstream. Early applications by Aztecs and Eskimos involved biological sample preservation. Contemporary freeze-drying freezes products in specialized chambers with heaters to form solid granules determined by chamber design.

Advantages: foods last 7–8 times longer than fresh, retain nutrients, save money, and are convenient. Freeze-dried foods are nutritious, and dairy preserves probiotics.

Senova, a freeze dryer innovator for 15 years, serves over 80 countries with dependable performance and support, launching an EU office in 2024.
