Specifications
Brand Name :
Senova
MOQ :
1 unit
Price :
Available upon request
Packaging Details :
Wooden (Carton: Portable)
Delivery Time :
10-15 working days
Payment Terms :
T/T
Supply Ability :
500 units/month
Place of Origin :
Shanghai, China
Model Number :
ZXDA-T20N2
Certification :
CE
Description

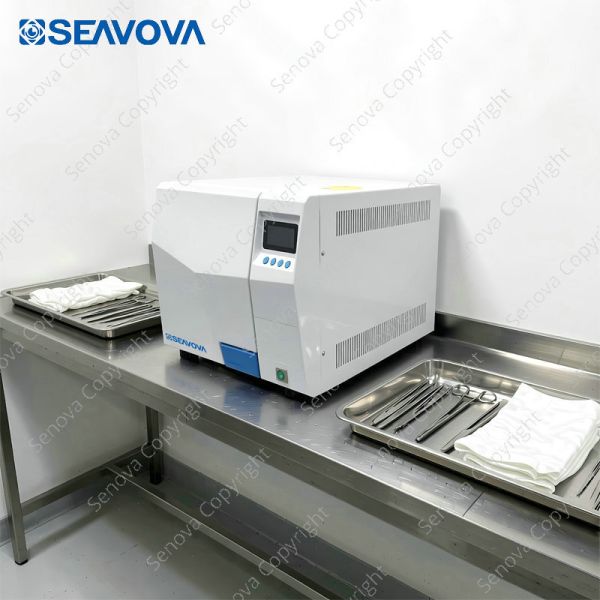

20L Fully Automatic Desktop Autoclave ZXDA-T20N2 with Drying
Main Features:
  • Fast 4-6 minute rapid sterilization cycle for efficient workflow in clinics and labs.
  • Intuitive digital display with touch controls for real-time status monitoring and easy operation.
  • Multiple preset sterilization programs with user-adjustable settings for customized protocols.
  • Fully automated process: auto water filling, heating, sterilizing, drying, and steam exhaust.
  • Advanced steam-water inner circulation system maintains a clean, dry workspace.
  • Safety features include automatic cool air exhaust, door lock, and water-level protection.

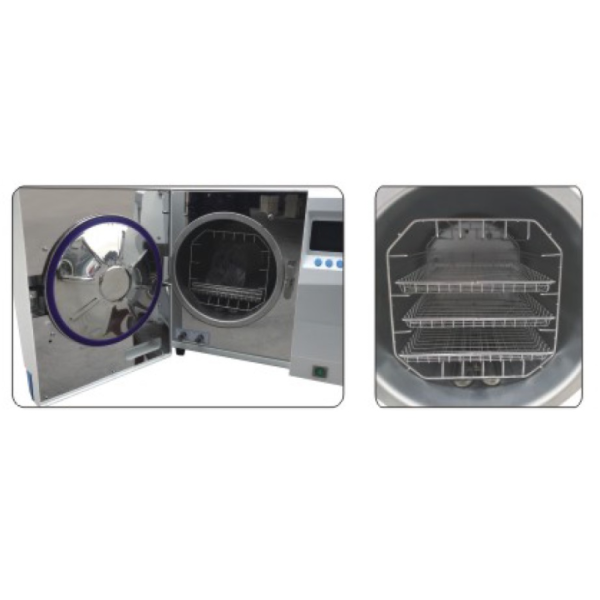

  • Includes four stainless steel sterilizing plates and a fully stainless steel chamber.
  • Automatic shut-off with audible alert and built-in drying function for immediate use of sterilized items.
Specifications
Model ZXDA-T20N2
Sterilizing chamber volume 20L(φ250*420 mm)
Maximum working pressure 0.22Mpa
Maximum working temperature 134℃
Adjustment of temperature 105-134℃
Timer 0-99min
Chamber temperature equal ≤ ± 1℃
Source power 1.5KW / AC220V 50Hz
Sterilizing plate 340*200*30 mm (3 piece)
Dimension 560*470*400 mm
Package dimension 790*580*580 mm
G. W/N.W 55/47 kg

20L Fully Automatic Desktop Autoclave ZXDA-T20N2 with Drying

Introduction about autoclave

The autoclave is a precision-engineered sterilizer that utilizes pressurized saturated steam. Its mode of action is thermal denaturation, where high-temperature moist heat permanently alters the structure of microbial proteins and enzymes. To achieve this, the chamber is sealed and pressurized, raising the steam temperature to setpoints like 121°C. The sterilization cycle is a three-part process: conditioning to remove air, exposure to maintain temperature/pressure, and exhaust to conclude.

This technology is indispensable in modern medicine for processing invasive devices, in dentistry for critical instrument reprocessing, and in scientific research for maintaining aseptic conditions. It is also a key safety device for treating infectious laboratory waste prior to disposal. Beyond bioscience, it serves in industrial applications requiring controlled heat and pressure. The autoclave's dominance is attributed to its reliability and the physical properties of steam. Steam condensation releases a significant amount of latent heat directly onto surfaces, ensuring rapid and uniform heating.

This allows for effective sterilization of packaged goods and items with complex geometries, which might be compromised using dry heat or chemical methods. Its ability to process such a wide variety of loads securely makes it the gold standard.
