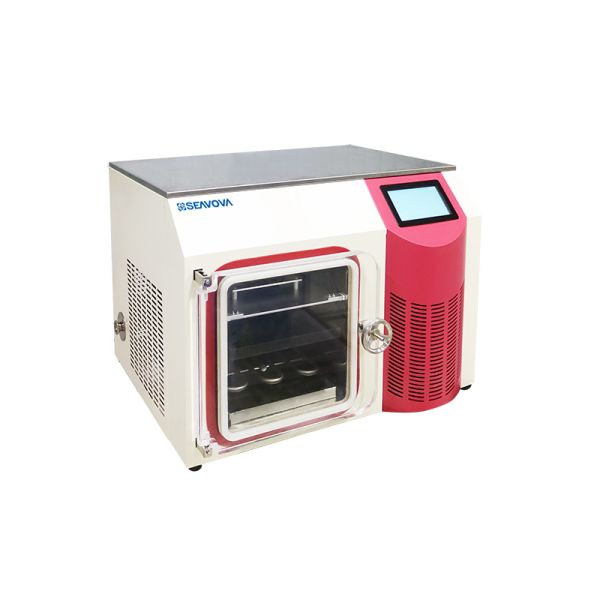

• 1. Professional Benchtop In-Situ Freeze-Drying
  Space-Efficient: Vertical construction minimizes the instrument's footprint, preserving valuable bench space.
  In-Situ Drying: Samples are frozen and dried within the same rectangular chamber, eliminating the risk associated with sample transfer.
  Substantial Capacity: Features a 3Kg/batch ice capture capacity, offering significant processing capability for a benchtop unit.

• 2. High-Efficiency & Precise Process Performance
  Deep Low Temperature: A cold trap temperature of ≤-88°C ensures highly efficient vapor capture, shortening cycle times.
  Wide Temperature Range: Shelf temperature spans from -60°C to +70°C, accommodating a vast array of sensitive materials.
  Rapid Thermal Ramp Rates: Achieves shelf cooling and heating rates of up to 3.5°C/min, accelerating process development and optimization.
  High-Precision Vacuum: Equipped with a Pirani gauge providing 0.01Pa display accuracy for critical, fine-resolution process monitoring.

• 3. Intelligent Control & User-Friendly Operation
  Advanced PLC Control: Ensures precise and reliable automation of complex freeze-drying cycles.
  Intuitive 7" Touchscreen: Simplifies operation, parameter setting, and real-time data review via numerical and graphical displays.
  Extensive Program Flexibility: Stores 40 user-defined programs, each with 40 customizable segments, and supports clear naming for traceability.
  Dual Operational Modes: Offers fully Automatic one-key operation for routine use and Manual mode for detailed testing and maintenance.
  Smart Self-Diagnostics: Automatically monitors key components and systems, enabling easy troubleshooting and individual functional checks.

• 4. Durable, Reliable & Future-Proof Design
  Robust Construction: Utilizes SUS304 stainless steel for the cold trap and top surface, ensuring superior corrosion resistance and durability.
  Stable Operation: Electronics feature waterproof and anti-electromagnetic interference design for resilience in laboratory environments.
  Accurate Process Tracking: Incorporates precise time-keeping with date calibration for reliable scheduling and record-keeping.
  Software-Upgradable: Product enhancements can be deployed via software updates, protecting your long-term investment.

• Q: What is the HS code?
  A: Typically 8419331000, 8419339090, or 8419399090. Confirm with your local customs.

• Q: How to get a quote and brochure?
  A: Tell us the model and quantity. You'll receive a detailed quote with specs and brochure.

• Q: Compatible with 110V/60Hz or 220V/60Hz?
  A: Yes. Supports 110V/60Hz and 200V-240V/50-60Hz. Specify your requirement when ordering.

• Q: Operating vacuum level?
  A: 15Pa (0.15 mbar).

• Q: English version available?
  A: Yes.

• Q: Can the power plug be replaced?
  A: Yes. We provide cords with various international plugs. Specify your standard.

• Q: Ready to use upon delivery?
  A: Almost. Connect the pump, plug in, and power on. Use the touch screen to operate.

• Q: Difficult to install for first-time users?
  A: No. We provide a manual, picture checklist, and a setup video for easy installation.

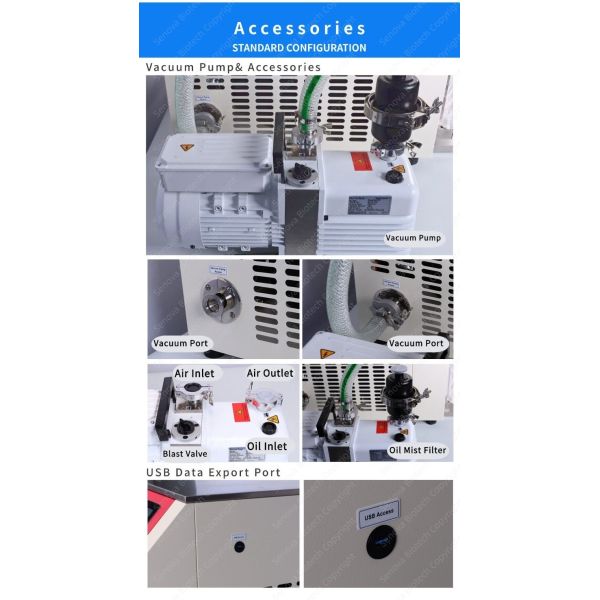

• Q: Can I get an oil-free vacuum pump?
  A: Yes, as an optional upgrade for extra cost.

• Q: What is the packaging?
  A: Strong plywood crate for safe international shipping.

• Q: Can it ship by air?
  A: Yes, but extra inspections/fees apply for refrigerant. Sea freight is more cost-effective.

• Q: Can we check quality before shipment?
  A: Yes. We provide photos and videos of your actual unit for approval before shipping.

• Q: Payment terms?
  A: T/T (Bank Transfer).

• Q: Delivery time?
  A: 5-20 working days after payment, depending on order.

• Q: Company location? Can we visit?
  A: Based in Shanghai with a factory nearby. Visits are welcome.

• Q: What certifications?
  A: ISO 9001 and CE.

• Q: After-sales service?
  A: Includes online support, video training, quick spare parts supply, and optional factory training.

• Q: Warranty?
  A: 12-month standard warranty (14 months for stock orders). Lifetime maintenance support.

Freeze-drying, or lyophilization, preserves perishable items by freezing and sublimating water through pressure reduction, an ancient practice from 13th-century Andean Indians. It refined in the 1950s. Developed for blood plasma in World War II, it later entered consumer food markets. Albert Altmann freeze-dried organ pieces in 1890; 1920s patents included rabies virus freeze-drying. The 1950s saw camping food applications. NASA adopted it for space food, notably freeze-dried ice cream on Apollo 7 and Gemini. Nestlé’s 1965 instant coffee made it mainstream. Early applications by Aztecs and Eskimos involved biological sample preservation. Contemporary freeze-drying freezes products in specialized chambers with heaters to form solid granules determined by chamber design.

Advantages: foods last 7–8 times longer than fresh, retain nutrients, save money, and are convenient. Freeze-dried foods are nutritious, and dairy preserves probiotics.

Senova, a freeze dryer innovator for 15 years, serves over 80 countries with dependable performance and support, launching an EU office in 2024.
