Specifications
Place of Origin :
China
Brand Name :
Senova
Certification :
CE
MOQ :
1 unit
Price :
Available upon request
Packaging Details :
plywood case
Delivery Time :
5-20 working days
Payment Terms :
T/T
Supply Ability :
100 units
Model Number :
NovaFuge F103-6R
Product :
Refrigerated Laboratory Centrifuge
Max. Capacity :
6x1000ml
Max. RCF :
6880xg
Max Speed :
6000rpm
Acceleration Rate :
1-10
Noise Level :
≦58dB(A)
Certifications :
CE
Display :
LCD & LED
Rotor type :
Fixed-angle and Swinging-bucket rotor
Power Supply :
220V/50-60Hz,30A
Description
Refrigerated Floor-top High-Capacity Centrifuge NovaFuge F103-6R

It is widely used in clinical medicine, biological engineering, Genetic engineering, immunology. It is suitable for the separation and purification of radioimmunoassay, water analysis, biochemistry, pharmaceutical and blood products.

Feature:
  • Microprocessor control
  • Stainless steel chamber and power coated housing
  • RPM/RCF adjustable during running and automatic value calculation
  • Selectable acceleration and deceleration rates ensuring high-quality separations
  • LCD display for parameter setting and LED display for working status
  • Display of speed, time, temperature, acceleration/deceleration, RCF, 30-program memory and error code Self-diagnostic system with protection of imbalance, over temperature, over speed, over voltage and electronic lock
  • Motorized lid lock and manual emergency lid release in case of unexpected power interruption.
  • Pneumatic spring support for easy lid opening, with hinge on the right side
  • Swing-out rotor with buckets and adapters made of high-density material
  • Silence-block and shock absorbers ensuring smooth and quiet operation
  • Castors for convenient moving

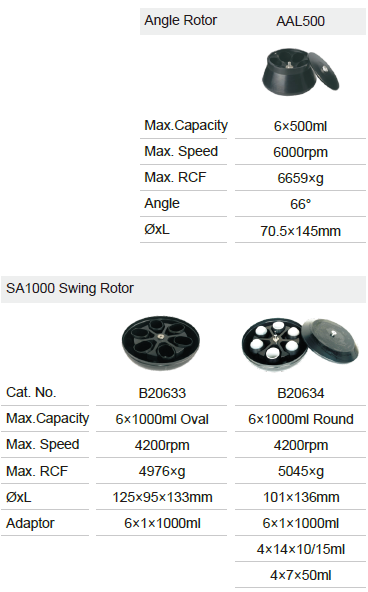

Technical data
Model NovaFuge F103-6R
Max. RPM/RCF for angle rotor 6000rpm / 6659*g
Max. RPM/RCF for swing rotor 4200rpm / 5045*g
Max. Capacity for angle rotor 6*500ml
Max. Capacity for swing rotor 6*1000ml
Speed Increment 10rpm
Speed accuracy ±20 rpm
Temp. range -20℃~+40℃
Temp accuracy ±2℃
Timer range 0~99min50s / 23h59min
Acc / Dec rates 12/12
Program memory 99
Power supply AC220V 50/60Hz
Power requirement 3KW
Noise <58db
Display LCD screen
Motor Converter Motor, direct drive
Net weight (without rotor) 235kg
Machine Dimension(L*W*H) 730*830*1200mm
Floor Top Refrigerated Centrifuge 6x1000ml Cooling Centrifuge MachineIntroduction about centrifuge

The process of centrifugation is enabled by a device that spins liquid samples to separate solutes from solvents or particles from solutions. It effectively amplifies gravity, causing dense substances to settle rapidly. Instrument selection primarily revolves around scale: benchtop centrifuges for routine, low-to-mid volume tasks and floor-standing models for industrial or high-speed research applications. An instrument's capability is also defined by its rotor type (fixed-angle or swing-bucket). Key purchasing considerations are the magnitude of centrifugal force needed, sample volume per run, thermal management requirements, and built-in protective features.
