Specifications

Brand Name :

SINOTRUK HOWO

Model Number :

ZZ4257V3241W

Certification :

CE/CCC/CQC

Place of Origin :

CHINA

MOQ :

1 Set

Price :

USD 30000-34000 per set

Payment Terms :

L/C, T/T

Supply Ability :

1000 sets per month

Delivery Time :

30 work days

Packaging Details :

Nude, wax before shipping.

Product Name :

HOWO 420 HP 10 Wheels Tractor Truck 6X4 Head Truck

Outside Size :

6.8X2.5X3.17m

Horse Power :

420HP

Emission Standard :

Euro Ⅱ

Engine :

D12.42

Cab :

HW76 one sleeper, With A/C

Drive Form :

Left Hand Drive / Right Hand Drive

Wheelbase :

3225+1350mm

Description

2020 Good Quality HOWO 420 HP 10 Wheels Tractor Truck 6X4 Head Truck

1.Product Overview:

HOWO 420 HP 10 Wheels Tractor Truck is a main product of SINOTRUK,With strong power and comfortable cab.It is well received by customers at home and abroad, especially in Africa as the preferred trauck head.

VEHICLE SPECIFICATION	DESCRIPTION
Truck Model	ZZ4257V3241W
Type of Vehicle	TRACTOR TRUCK
Truck Brand	SINOTRUK—HOWO
Driving Position	Left hand Driving / Right hand Driving
Fuel tanker capacity	400L
The Total Mass	40,000kg
Dead Weight	9180kg
Max speed	102km/h
Color	Optional
Chassis & Add Components
Frame Details	High-Strength U-profile ladder frame with Section of 300908mm and reinforced sudfram, all cold riveted cross members.
Dimension(L×W×H)(unloaded)	6800x2496x3170mm
Approaching angle/Departure angle	16/70
Overhang(front/rear)	1500/725mm
Wheel base	3225+1350mm
Engine
Model	D12.42
Power	420HP
Emission	EURO II
Cylinder bore*stroke	126*155mm
Displacement	9.876L
Type	water-cooled,four strokes,6 cylinders in line, turbocharged, directly injection.
Kind of Fuel	Diesel
Fuel Consumption	30L/100km
Clutch & Gear Box System
Battery	2X12V/165Ah
Alternator	28V-1500kw
Starter	7.5Kw/24V
Brake System
Service brake	Dual circuit compressed air brake
Parking brake	Spring energy, compressed air Operating on rear wheels
Auxiliary brake	Engine exhaust brake
Wheels & Tyres
Type	1200R20 (can be choose)
Material	Tubeless tires
Quantity	10+1 spare
King pin	90mm
Cabin
Type	HW76 Standard cabin

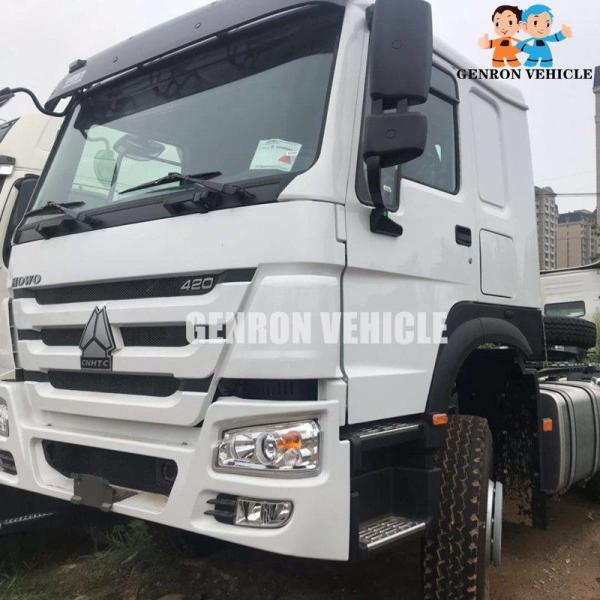

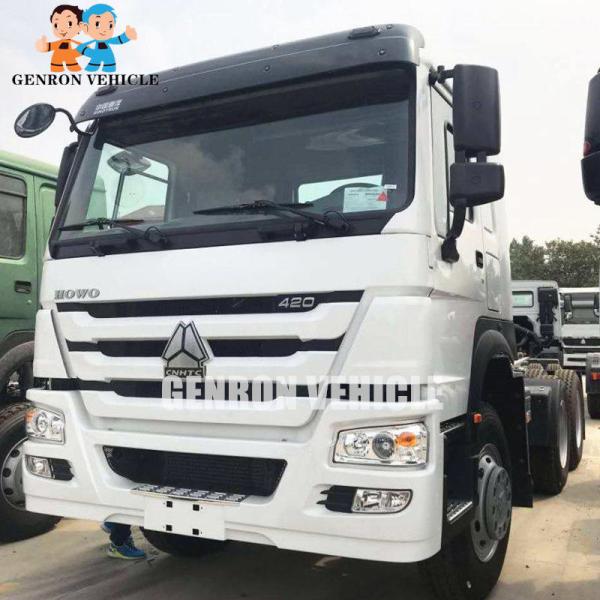

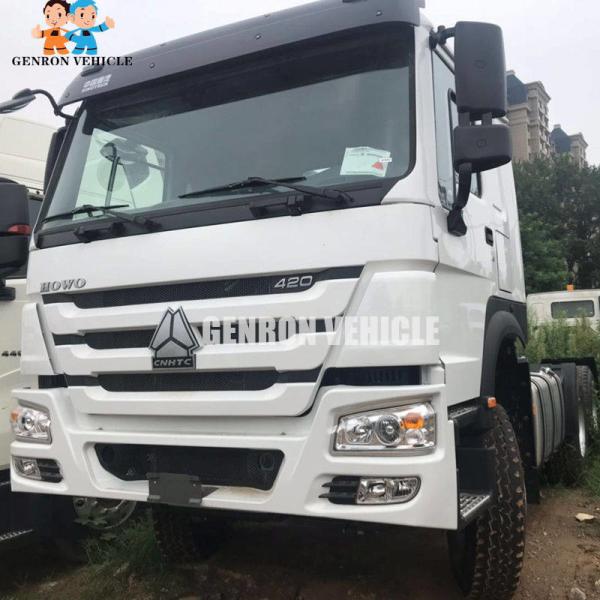

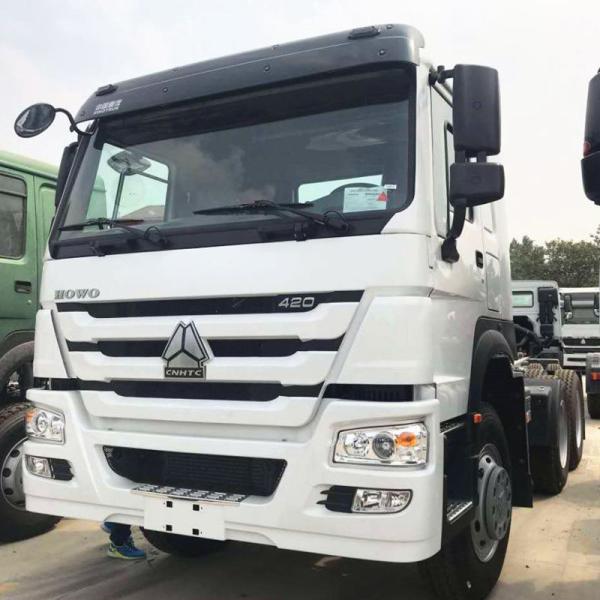

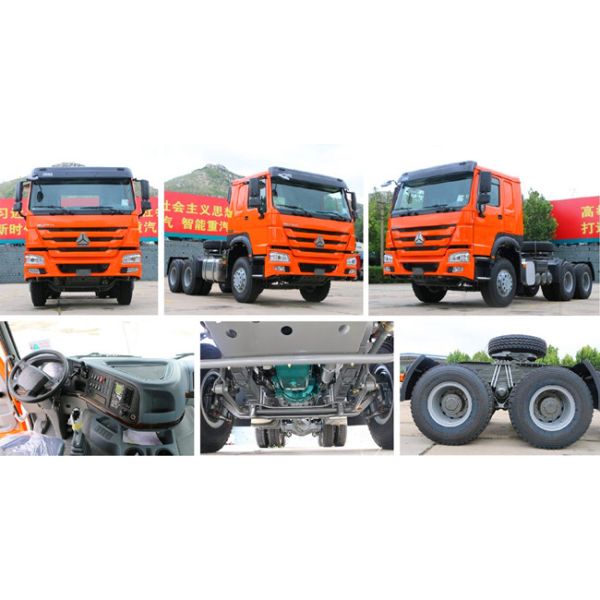

Picturer Show :

(HOWO 420 HP 10 Wheels Tractor Truck 6X4 Head Truck)
